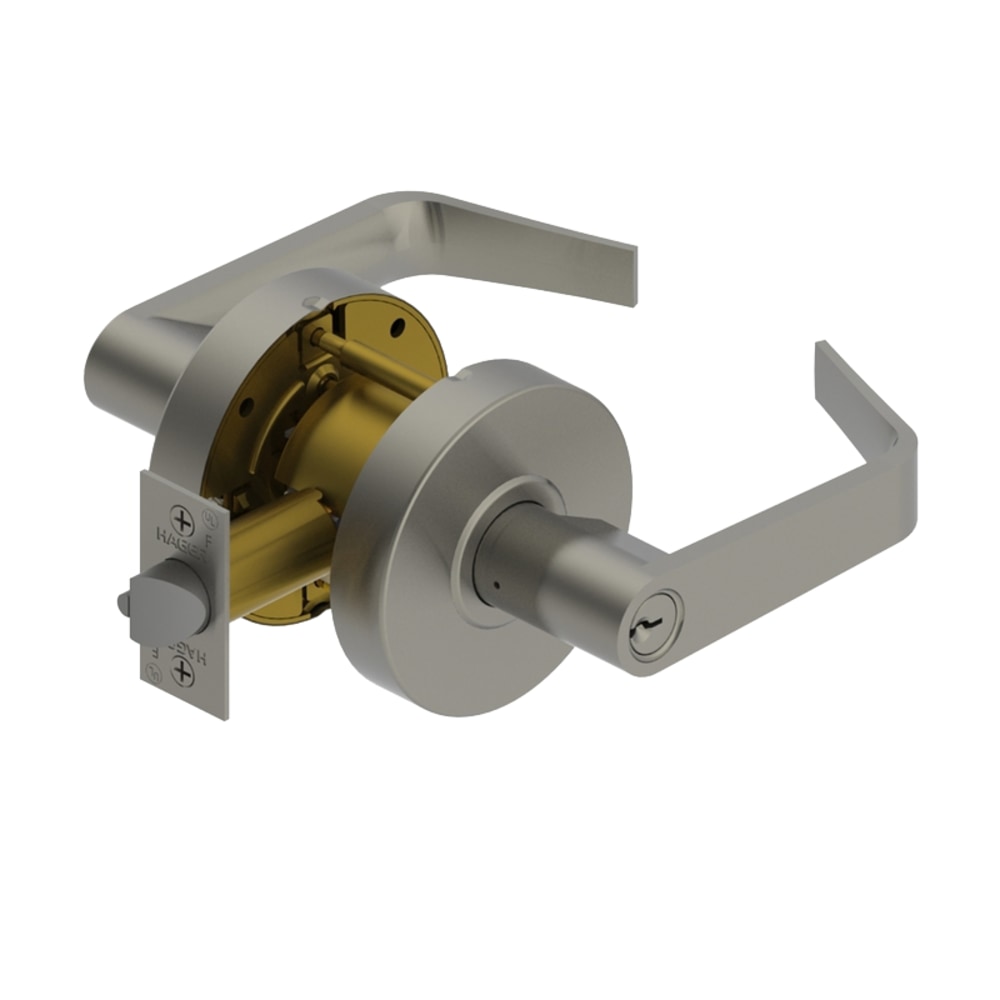

Hager 2580 SCC WTN US26D KD 2500 Storeroom Lock is a Grade 2 cylindrical lock that expertly blends value and performance, making it an ideal choice for typical commercial applications. Featuring the elegant Withnell lever design, this lock is non-handed and equipped with a conventional cylinder and ASA strike, providing versatility in installation. The satin chrome finish not only enhances its aesthetic appeal but also ensures durability and corrosion resistance. Designed for doors with a thickness ranging from 1-3/8" to 2", the Hager 2580 lock offers a deadlocking latchbolt that prevents manipulation when the door is closed. It comes supplied with two brass keys, and its keying options include a standard Schlage C keyway. The lock is BHMA Certified ANSI A156.2, ensuring compliance with industry standards for security and reliability. This storeroom lock is also fire-rated for up to three hours, adding an essential layer of safety for commercial environments. With its robust construction, including a heavy-gauge steel chassis, the Hager 2580 is a dependable solution for securing entry points while maintaining ease of use and installation. Consider this lock for your next commercial project to achieve both functionality and style.

2500 STOREROOM LOCK

Grade 2 Storeroom Cylindrical Lock, Withnell Lever, Not Handed, Conventional Cylinder, ASA Strike, Satin Chrome

Hager 2500 Series Grade 2 lock is a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications. The inherent value of this lock and the product offering make our 2500 Series lock a perfect choice for a stocking program. As an economical alternative to other Grade 2 cylindrical locks, it offers both dependability and affordability.

Hager offers Grade 1 and Grade 2 Cylindrical Locks.

3400 and 3500 Series are Hager's cylindrical locks.

3400 Knob:

• Certifications: - BHMA Certified ANSI A156.2, Series 4000, Grade 1
  • ANSI A250.13 Severe Windstorm Resistant Component
  • UL/cUL Listed for all functions up to 3 hours for ''A'' label single doors
  • UL10C Positive Pressure Rated
  • UL10B Neutral Pressure Rated
• Knob Diameter: - 2-9/32" (58 mm)
• Rose Diameter: - 3" (76 mm)
• Exposed Trim: Wrought Brass or Stainless Steel
• Lock Chassis: Heavy gauge steel, zinc dichromated for corrosion resistance
• Keys: Two brass keys per lock
• Cylinders: Brass 6-pin - Keyed Different - C Keyway
• Other keying options available from factory
• Door Thickness: - 1 3/8" - 1 3/4"
• Backset: - 2 3/4" - 2 3/8" Optional
• Latchbolt: - 1/2" Throw - Stainless Steel - 2 1/4" x 1 1/8" Faceplate
• Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only
• Strikes: ANSI 4-7/8" x 1-1/4" strike - standard, Optional strikes available
• Finishes: - US3, US32D
•  Functions:  - 10 - Passage, 17 - Dummy, 40 - Privacy, 50 - Office, 53 - Entry, 70 - Classroom, 80 - Storeroom

3400 Lever:

• Certifications:
  • BHMA Certified ANSI A156.2, Series 4000, Grade 1
  • ADA Compliant ANSI A117.1 Accessibility Code
  • ANSI A250.13 Severe Windstorm Resistant Component
  • UL/cUL Listed for all functions up to 3 hours for ''A'' label single doors (for double door application, UL/cUL Listed when used with 3/4" latchbolt)
  • UL10C Positive Pressure Rated
  • UL10B Neutral Pressure Rated
  • Lifetime warranty
• Exposed Trim:
  • Lever: Cast zinc
  • Rose: Wrought brass or stainless steel
  • Intruder Classroom function has locking indicator arrow stamped on the interior rose
• Lock Chassis:
  • Heavy gauge steel, zinc dichromated for corrosion resistance
  • Free wheeling levers
  • Thru-bolt mounting levers
• Rose Diameter:
  • 3-17/32" (90 mm) levers; 3" (76 mm) knobs
• Keys:
  • Two operating keys supplied per lock
• Cylinders/Cores:
  • Brass 6-pin, keyed different - C Keyway
  • Other keying options, including keyed 6-pin, available from factory
  • Small Format Interchangeable Core option available
  • SFIC uncombinated or combinated, brass 6- or 7-pin sold separately
  • Large Format Interchangeable Core option available
  • LFIC zero bitted or combinated, brass 6-pin sold separately
• Door Thickness:
  • Levers: 1-3/8" - 2" (35 mm - 51 mm)
• Backset:
  •  2-3/4" (70 mm) - standard
  • 2-3/8" (60 mm) - optional
  • 3-3/4" (94 mm) - optional
  • 5" (128 mm) - optional
• Latchbolt: - 1/2" (13 mm) throw, stainless steel
  • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
  • Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only
  • Square corner faceplates standard, round corner available
  • 3/4" (19 mm) latch available
• Strikes:
  • 3935 ASA 1-1/4" x 4-7/8" (32 mm x 124 mm) strike - Standard
• Finishes:
  • US3, US4, US10, US10B, US26, US26D
•  Functions:  - 10 - Passage, 17 - Dummy, 40 - Privacy, 50 - Office, 53 - Entry, 70 -
•  Classroom, 73 - Corridor, 80 - Storeroom, 95 - Classroom Security
• Options:
  • Lead lined
  • Tactile knurling
  • Split finish
  • Additional latchbolts and strikes available
• Standard Door Prep:
  • 2-1/8" (54 mm) diameter with thru-bolt holes (cross bore)
  • Latch hole - 1" (25 mm) diameter (edge bore)
• Lever Options:
  • Archer, August, Withnell levers
• Installation:
  • Comes pre-set for 1-3/4” thick doors for quicker installation
  • Threaded mounting bracket adjusts to proper door thickness in seconds
  •  Only two screws needed to fully secure inside and outside assemblies to the door
  • Screws will ratchet tight letting installer know the lockset is properly tightened
  • Roses and levers snap on in seconds
