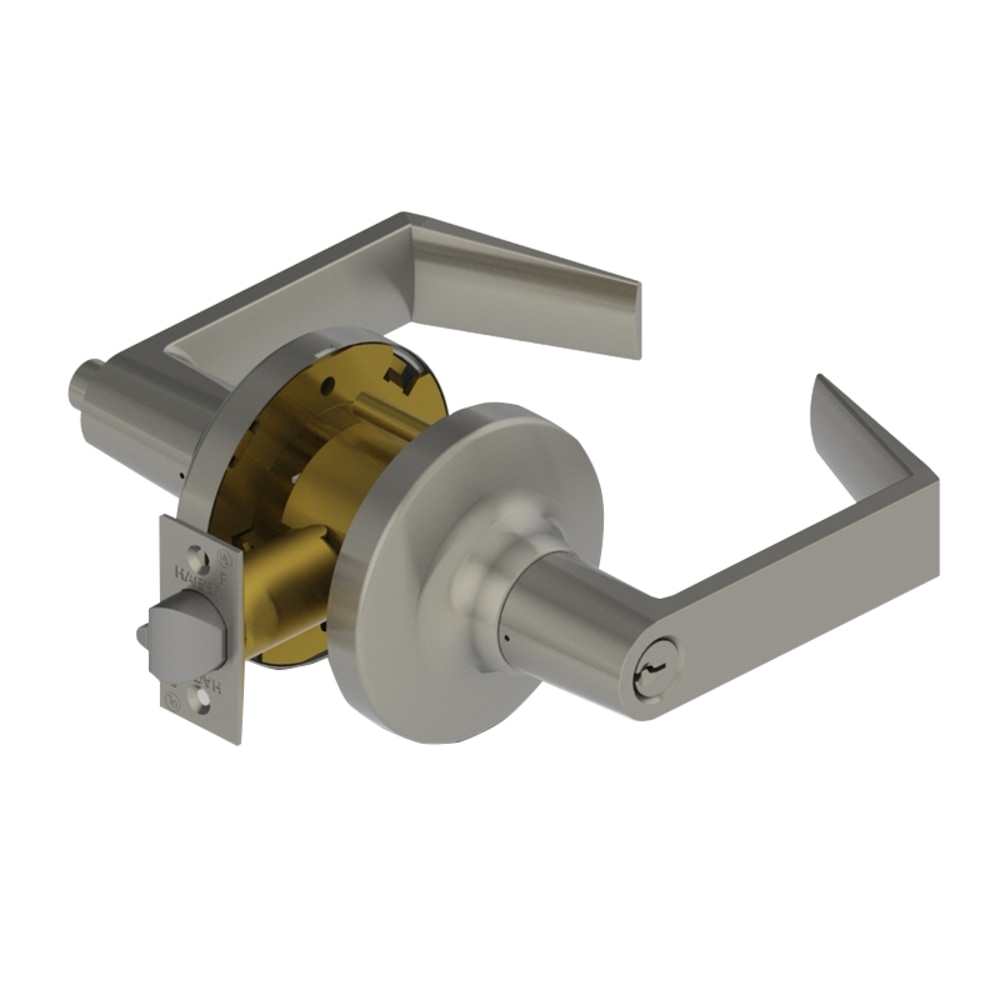

Hager 3450 26D WTN Grade 1 Entry/Office Lock offers a robust solution for securing office environments with its Grade 1 cylindrical design. Engineered with the Withnell Lever, this lock is not handed, ensuring versatility for a wide range of door configurations. The conventional cylinder provides reliable performance, while the satin chrome finish (626/US26D) enhances both durability and aesthetics. This lock is ANSI certified with a function code of F82A, making it ideal for entry applications. It accommodates door thicknesses between 1-3/8 inches and 2 inches, and features a fire rating of 3 hours, ensuring safety in emergencies. The lock includes a keyed different configuration, with two cut keys provided for convenience. Designed for ease of installation, the standard latch type is a drive-in dead latch, with a backset dimension of 2-3/4 inches. An ASA strike complements the lock's functionality, featuring a strike height of 4-7/8 inches and a width of 1-1/4 inches. The Hager 3450 lock is part of the 3400 Series Grade 1 Cylindrical Locks, delivering quality and reliability for both building professionals and discerning homeowners. Upgrade your security with this dependable locking solution today.
Grade 1 Office Cylindrical Lock, Withnell Lever, Not Handed, Conventional Cylinder, ASA Strike, Satin Chrome
Attributes
Manufacturer surcharge: $ 19.51
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.2, A117.1, A250.13
Ansi Function: F82A - Entry
Baa Qualified: No
Bolt Projection: 1/2" Latch
Bore Hole Diameter: 2-1/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: Taiwan
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/8 In. - 2 In.
Dust Box: None
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 50 - Office
Function Family: Entry
Grade: Grade 1
Handing: Not Handed
Installation: Commercial
Keying: Keyed Different
Keys: Cut
Latch Bore Diameter: 1"
Leverknob Design: WTN - Withnell Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: Lifetime
Of Keys: 2
Origin: Taiwan
Pack Qty: 1
Restrictions: None
Roseescutcheon Design: 3-17/32" Rose Diameter
Screws: Combination
Series: 3400 Series Grade 1 Cylindrical Locks
Std Keyway: Schlage C
Std Latch Backset Dim: 2-3/4 In.
Std Latch Number: 3932
Std Latch Type: Drive-In Dead Latch
Std Strike Height: 4-7/8 In.
Std Strike Number: 3935
Std Strike Type: ASA Strike
Std Strike Width: 1-1/4 In.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL 10C, UL 10B
Unit of Measure: Each
