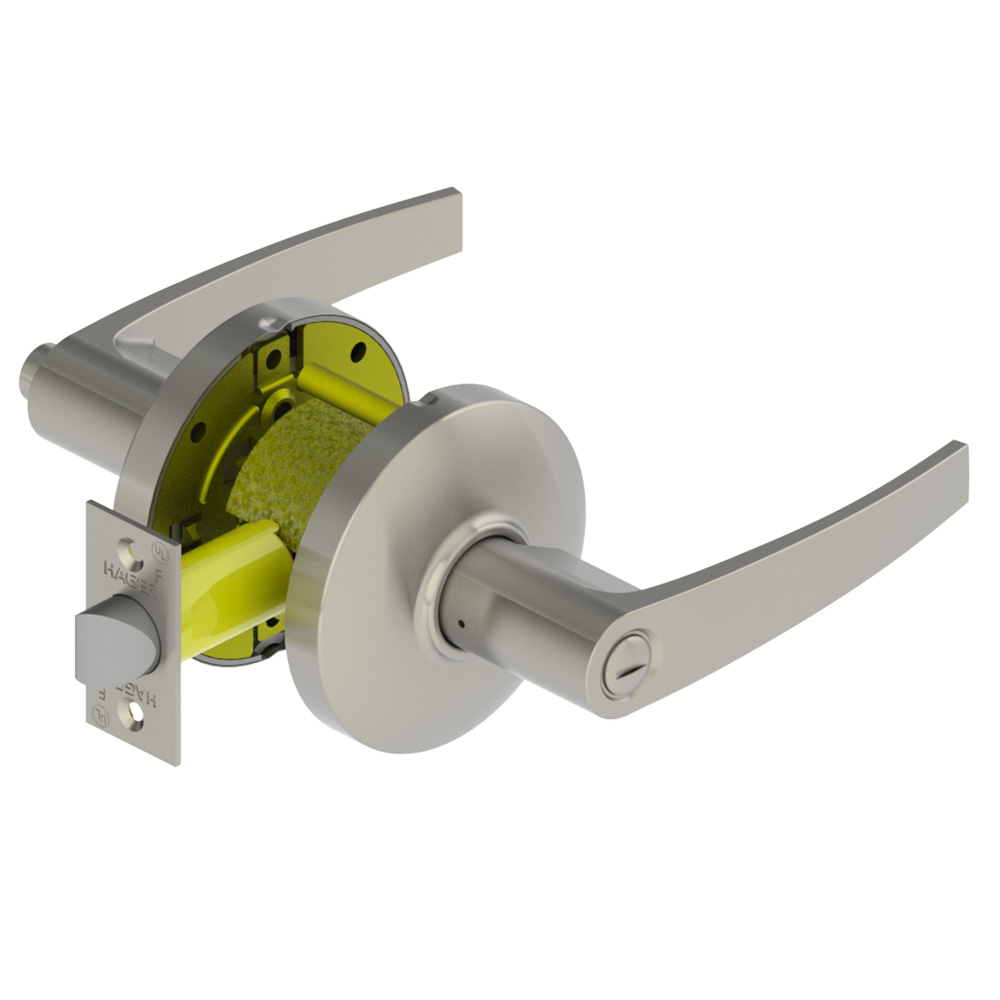

Hager Hinge 3540AUG26D August Lever Privacy Cylindrical Lock features a sleek satin chrome finish, making it a stylish yet practical choice for any commercial environment. This lockset is designed for doors ranging from 1-3/8" to 2" thick, ensuring versatility for various applications. With a robust 2-3/4" backset and a crossbore size of 2-1/8", installation is straightforward, while the ASA strike enhances security and ease of use. The August lever design not only adds an elegant touch but is also engineered for comfort and accessibility, making it ideal for high-traffic areas. Constructed from durable materials, including a zinc lever, wrought brass rose, and a steel chassis, this lockset promises longevity and reliability. The lockset is UL/cUL listed for all functions up to 3 hours, ensuring a high standard of safety. Additionally, Hager backs this product with a limited lifetime warranty and a one-year finish warranty, providing peace of mind for your investment. With a round rose design and dimensions of 3-11/32" for the rose diameter and 4-1/2" for the lever length, the Hager 3540AUG26D combines aesthetic appeal with practical functionality, making it an excellent choice for privacy needs in commercial settings.
Attributes
Manufacturer surcharge: 8.75%
Ansi Function: F76A - Privacy
Baa Qualified: No
Backset: 2-3/4" Backset
Bolt Projection: 1/2" Latch
Burglar Rated: No
Category: Mechanical Commercial Locksets
Commercial Residential: Commercial
Country of Origin: Taiwan
Country of origin: Taiwan
Crossbore Size: 2-1/8" Bore
Cylinder Type: Non-keyed
Design: August Lever
Dimension: 3-11/32" Rose Diameter; 4-1/2" Lever Length; 2-21/32" Projection
Door Range: 1-3/8" to 2"
Dust Box: None
Finish: Satin Chrome
Finish Code: US26D
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Privacy
Grade: Grade 2
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob Design: August Lever
Leverknob Design: AUG - August Lever
Leverknob Design Family: Straight Lever
Limited Warranty: Lifetime
Manufacturer Warranty: Limited Lifetime Warranty and 1 Year Finish Warranty
Material: Zinc Lever, Wrought Brass Rose, and Steel Chassis
No Of Inners: 1
Non Returnable: Yes
Order_ Qty: 1
Origin: Taiwan
Pack Qty: 1
Restrictions: None
Rose Escutcheon Design: Round Rose
Rose Escutcheon Dimensions Inside: 3-17/32" Diameter Rose
Screws: Combination
Series: Hager 3500 Series
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 4-7/8"
Std Strike Number: 3935
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimension: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing Type: UL/cUL Listed for all functions up to 3 Hours
Unit of Measure: Each
