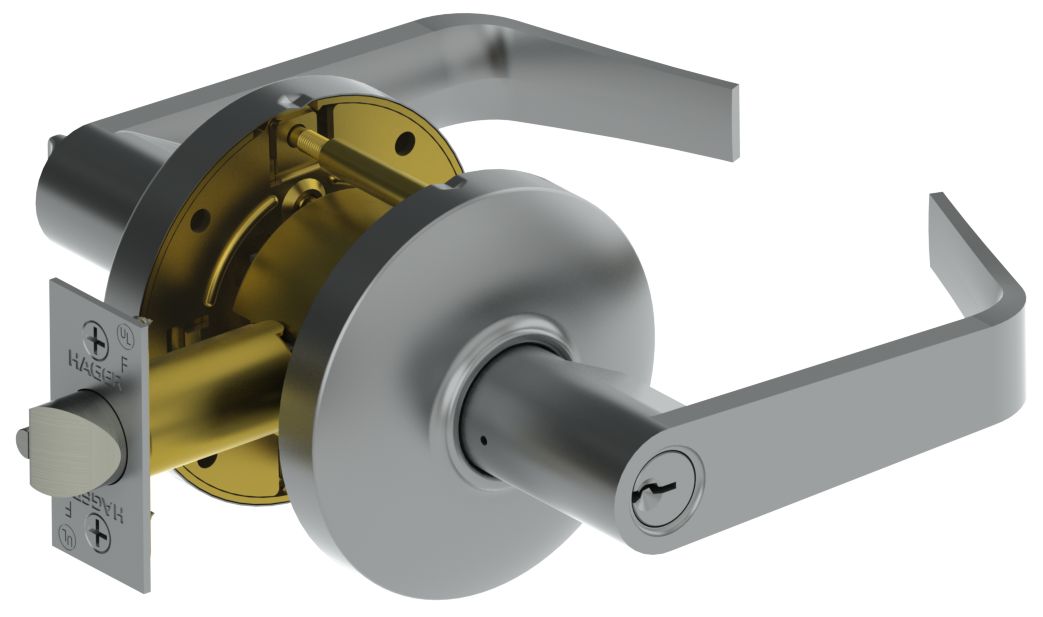

Hager Hinge 3550WTN26D Withnell Lever Office Cylindrical Lockset, finished in sleek Satin Chrome, combines style and functionality for commercial spaces. This Grade 2 office door lockset is designed for standard duty applications, ensuring reliability and security in professional environments. The Withnell lever offers a contemporary aesthetic while providing a comfortable grip. One of the standout features of this lockset is its non-handed design, allowing for versatile installation on both left- and right-swinging doors. With no exposed mounting screws, the lockset maintains a clean and polished look, perfect for enhancing any office décor. It is compatible with door thicknesses ranging from 1-3/8" to 2", making it adaptable to various door styles. The lockset includes a 2-3/4" backset and a 2-1/8" crossbore size, accommodating standard door preparations. Constructed from a zinc lever and wrought brass rose, it offers durability and longevity. The Hager keyway ensures added security, while the UL/cUL listing provides confidence in its performance for up to three hours. Backed by a limited lifetime warranty and a one-year finish warranty, the Hager 3550WTN26D Withnell Lever Lockset is an excellent choice for professionals seeking quality and reliability in door hardware.
At Hager, we are committed to being your one source for full line door hardware. We stand alone as one family and one brand. We create products that make a difference in one community at a time, while being mindful of the one planet we all share. Every product that Hager offers is backed by a 167-year legacy of quality, reputation, and excellence.
Attributes
Ansi Function: F82A - Entry
Application: CM
Backset: 2-3/4" Backset
Category: Mechanical Commercial Locksets
Clazz: HH
Color: Satin Chrome
Country of Origin: Mexico
Crossbore Size: 2-1/8" Bore
Cylinder Type: Conventional Cylinder
Design: Withnell
Dimension: 3-11/32" Rose; 4-17/32" Lever Length; 2-21/32" Projection
Door Range: 1-3/8" to 2"
Door Thickness: 1-3/8" to 2"
Finish: Satin Chrome
Finish Code: US26D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Office
Grade: Grade 2
Handing: Not Handed
Hazardous Material: NO
Item Class Description: Withnell Lever Office Cylindrical Lock # 098329
Item Type Keyword: Office
Keying: Keyed Different
Keys: Cut
Keyway: Hager Keyway
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob Design: Withnell Lever
Leverknob Design: WTN - Withnell Lever
Limited Warranty: Limited Lifetime Warranty and 1 Year Finish Warranty
Manufacturer Warranty: Limited Lifetime Warranty and 1 Year Finish Warranty
Material: Zinc Lever, Wrought Brass Rose, and Steel Chassis
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Number Of Inners: 1
Number Of Pins: 6 Pin Cylinder
Of Keys: 2
Order_ Qty: 1
PO date: 2024-10-30
Product Dimension: 3-11/32" Rose; 4-17/32" Lever Length; 2-21/32" Projection
Rose Escutcheon Design: Round Rose
Series: Hager 3500 Series
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Drive-In Dead Latch
Std Strike Height: 4-7/8 In.
Std Strike Number: 3935
Std Strike Type: ASA Strike
Std Strike Width: 1-1/4 In.
Strike: ASA Strike
Strike Dimension: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing Type: UL/cUL Listed for all functions up to 3 Hours
