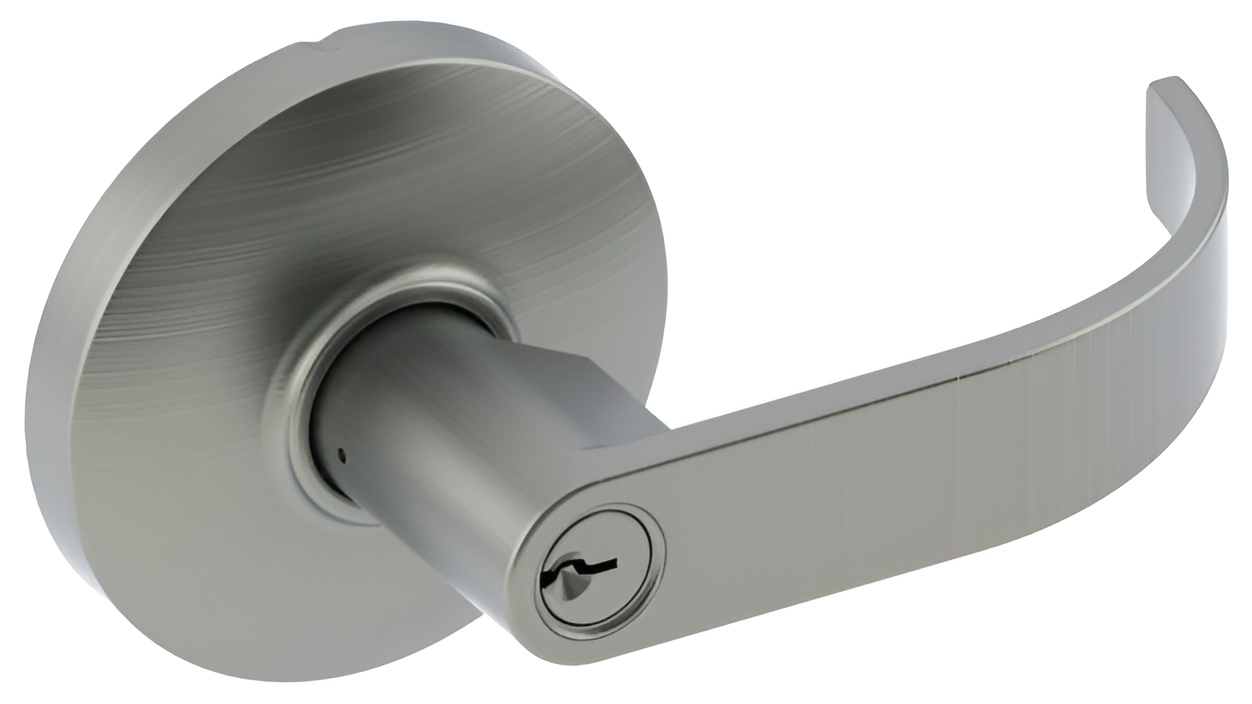

Hager 3580ARC26D Archer Lever Storeroom Cylindrical Lock is a testament to quality and security, designed for standard duty commercial applications. Its sleek satin chrome finish not only adds a modern touch but also ensures durability over time. The lockset features a non-handed design, making it versatile for various installations, and is ideal for storeroom functions, offering controlled access while maintaining security. Constructed with a robust zinc-based lever and a wrought brass rose, this lock is built to withstand the rigors of everyday use. The 2-3/4" backset and a crossbore size of 2-1/8" allow for straightforward installation in doors ranging from 1-3/8" to 2" in thickness. With a 6-pin cylinder and Hager keyway, you can trust in the security it provides. The round rose design complements the aesthetic appeal of the Archer lever, while the ASA strike ensures a proper fit. Additionally, Hager backs this product with a limited lifetime warranty and a one-year finish warranty, reflecting their commitment to excellence. UL/cUL listed for up to 3 hours, the Hager 3580ARC26D not only meets but exceeds industry standards, making it an excellent choice for any commercial setting.
At Hager, we are committed to being your one source for full line door hardware. We stand alone as one family and one brand. We create products that make a difference in one community at a time, while being mindful of the one planet we all share. Every product that Hager offers is backed by a 167-year legacy of quality, reputation, and excellence.
Attributes
Ansi Function: F86 - Storeroom
Application: CM
Baa Qualified: No
Backset: 2-3/4" Backset
Bolt Projection: 1/2" Latch
Burglar Rated: No
Category: Mechanical Commercial Locksets
Clazz: HH
Color: Satin Chrome
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Taiwan
Crossbore Size: 2-1/8" Bore
Cylinder Type: 6-Pin
Design: Archer Lever
Dimension: 3-11/32" Rose Diameter; 4-1/2" Lever Length; 2-21/32" Projection
Door Range: 1-3/8" to 2"
Door Thickness: 1-3/8" to 2"
Dust Box: None
Finish: Satin Chrome
Finish Code: US26D
Finish Description: Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Storeroom
Grade: Grade 2
Handing: Non-Handed
Hazardous Material: NO
Installation: Commercial
Item Class Description: Archer Lever Storeroom Cylindrical Lock # 000300
Item Type Keyword: Storeroom
Keying: Keyed Different
Keys: Cut
Keyway: Hager Keyway
Latch Faceplate Dimension: 1-1/8" x 2-1/4"
Lever Knob Design: Archer Lever
Leverknob Design: ARC - Archer Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: Lifetime
Manufacturer Warranty: Limited Lifetime Warranty and 1 Year Finish Warranty
Material: Zinc Lever, Wrought Brass Rose, and Steel Chassis
No Of Inners: 1
No Of Pins: 6 Pin Cylinder
Number Of Inners: 1
Number Of Pins: 6 Pin Cylinder
Of Keys: 2
Order_ Qty: 1
Origin: Taiwan
Pack Qty: 1
Pins: 6
Product Dimension: 3-11/32" Rose Diameter; 4-1/2" Lever Length; 2-21/32" Projection
Restrictions: None
Rose Escutcheon Design: Round Rose
Rose Escutcheon Dimensions Inside: 3-17/32" Diameter Rose
Screws: Combination
Series: Hager 3500 Series
Std Keyway: Schlage C Keyway
Std Latch Backset Dim: 2-3/4"
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 3935
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Strike: ASA Strike
Strike Dimension: 1-1/4" x 4-7/8"
Subcategory: Cylindrical Locksets
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Ul Listing Type: UL/cUL Listed for all functions up to 3 Hours
Unit of Measure: Each
Upc: 04135900300722
