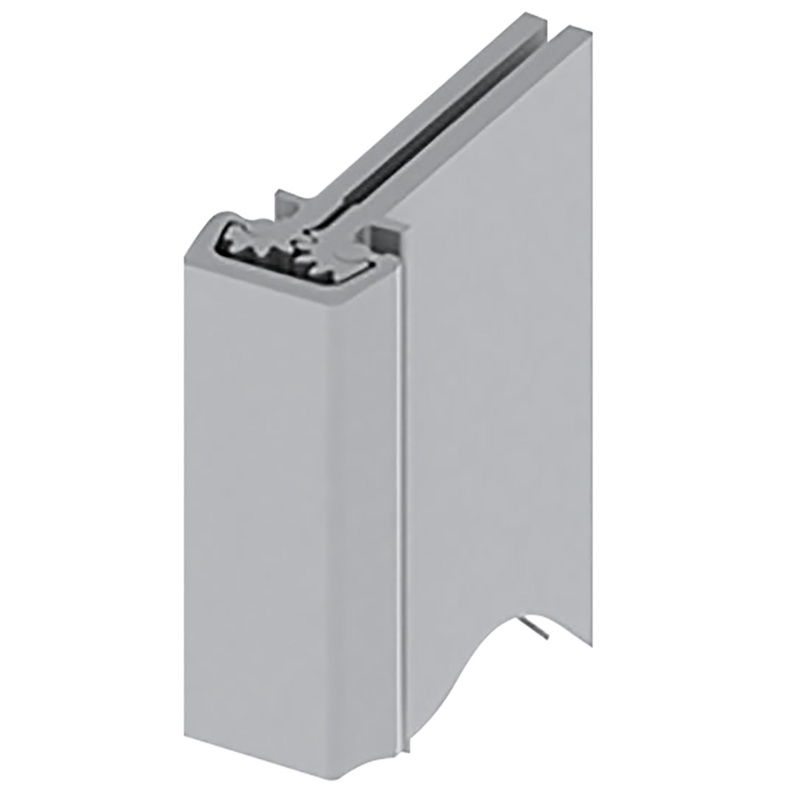

Hager 780-112HD 83 CLR UL-FF-HT Concealed Leaf Continuous Hinge

Hager 780-112HD 83 CLR UL-FF-HT Concealed Leaf Hinge offers a robust solution for heavy-duty applications. This 83-inch aluminum continuous geared hinge features a concealed leaf design and a hospital tip, ensuring both functionality and aesthetics in commercial settings. The hinge is fire-rated, providing peace of mind in safety compliance, and its satin aluminum clear anodized finish enhances durability while maintaining a sleek appearance. Engineered for a wide range of applications, the Hager 780-112HD is suitable for high-frequency use, making it an ideal choice for environments requiring reliable performance. It can accommodate various configurations including widethrow and electrically modified power transfer systems. This hinge is designed to meet strict ANSI/BHMA A156.26 C standards, ensuring quality and longevity. The hinge is classified as Grade 1, suitable for commercial installations, and is available with a lifetime warranty under certain conditions, reinforcing Hager's commitment to excellence. With its continuous gear bearing type and hospital tip style, this hinge is not only practical but also versatile, fitting seamlessly into various architectural designs. Trust the Hager 780-112HD for your door hardware needs, delivering both innovation and reliability.

CONCEALED LEAF CONT HINGE

Roton Aluminum Continuous Geared Hinge, Concealed Leaf, Heavy Weight, 83" Hinge, Hospital Tip, Fire Rated, Satin Aluminum Clear Anodized Finish

Roton Aluminum Continuous Geared Hinge, Concealed Leaf, Heavy Duty, 83" Hinge, Hospital Tip, Fire Rated, Satin Aluminum Clear Anodized

Wide variety of applications including widethrow, electrically modified power transfer and monitoring, anchor hinges, fire-rated spring hinges.

Hager hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door/frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge application.

• ANSI/BHMA A156.26 C
• Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards.
•  Warranty: Lifetime warranty statements, associated exceptions and limitations are available online at www.hagerco.com. Hager warrants US10B finish only over brass or bronze base material. If steel base material is necessary, Hager recommends US10A lacquer finish.
