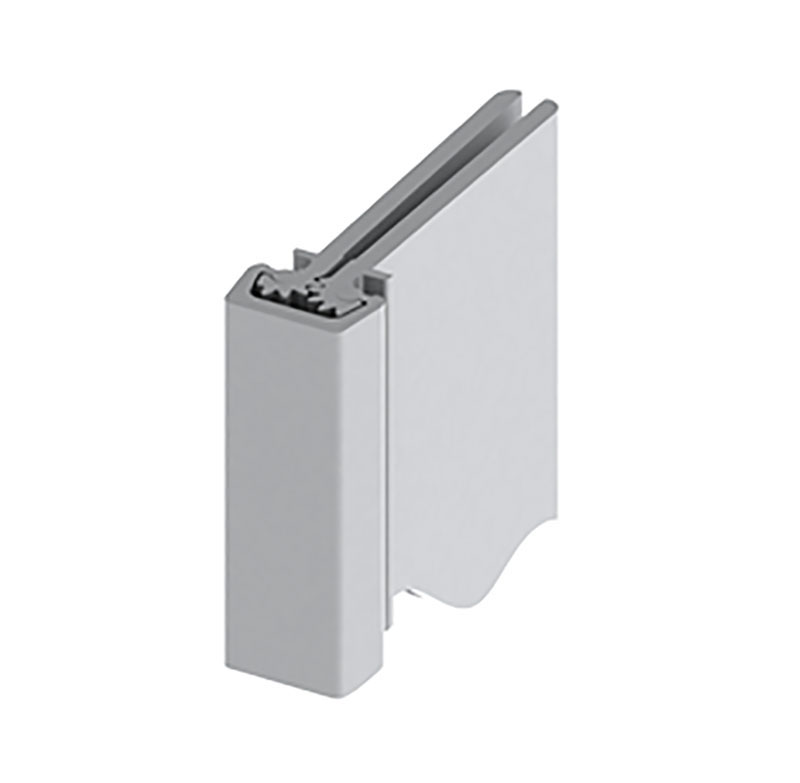

Hager 780-226HD 119 CLR Continuous Geared Hinge, 119"

Hager 780-226HD 119 CLR Continuous Geared Hinge offers a robust solution for both commercial and residential settings. This heavy-duty hinge features a concealed leaf design and measures an impressive 119 inches, making it ideal for wide door applications. Its satin aluminum clear anodized finish not only enhances durability but also provides a sleek, modern aesthetic. Designed with a cutout configuration, the Hager 780-226HD eliminates the need for reinforcement plates in most door and frame types, streamlining installation in new constructions and restoration projects alike. This hinge is suitable for a diverse range of applications, including electrically modified power transfer, monitoring, and fire-rated spring hinges. Meeting ANSI/BHMA A156.26 C standards, the hinge is engineered for reliability and performance. It is rated for 3 hours on metal doors and 90 minutes on wood composite doors with studs, ensuring compliance with safety regulations. With a lifetime warranty, Hager stands behind the quality of its products, providing peace of mind for builders and homeowners. For those seeking a premium hinge solution that combines functionality with style, the Hager 780-226HD is an exceptional choice.

CONTINUOUS GEARED HINGE, 119""

Concealed Leaf Continuous Geared Hinge, Heavy Duty, 119", Satin Aluminum Clear Anodized Finish

All Roton continuous geared hinges have cutout design and spacing coordination is thereby eliminated in both new construction and restoration work. Reinforcement plates are not required in doors or frames except where the gauge is too thin for the fasteners in relation to the door weight or where abusive operation is anticipated.

Wide variety of applications including widethrow, electrically modified power transfer and monitoring, anchor hinges, fire-rated spring hinges.

Hager hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door/frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge application.

• ANSI/BHMA A156.26 C
• Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards.
•  Warranty: Lifetime warranty statements, associated exceptions and limitations are available online at www.hagerco.com. Hager warrants US10B finish only over brass or bronze base material. If steel base material is necessary, Hager recommends US10A lacquer finish.
