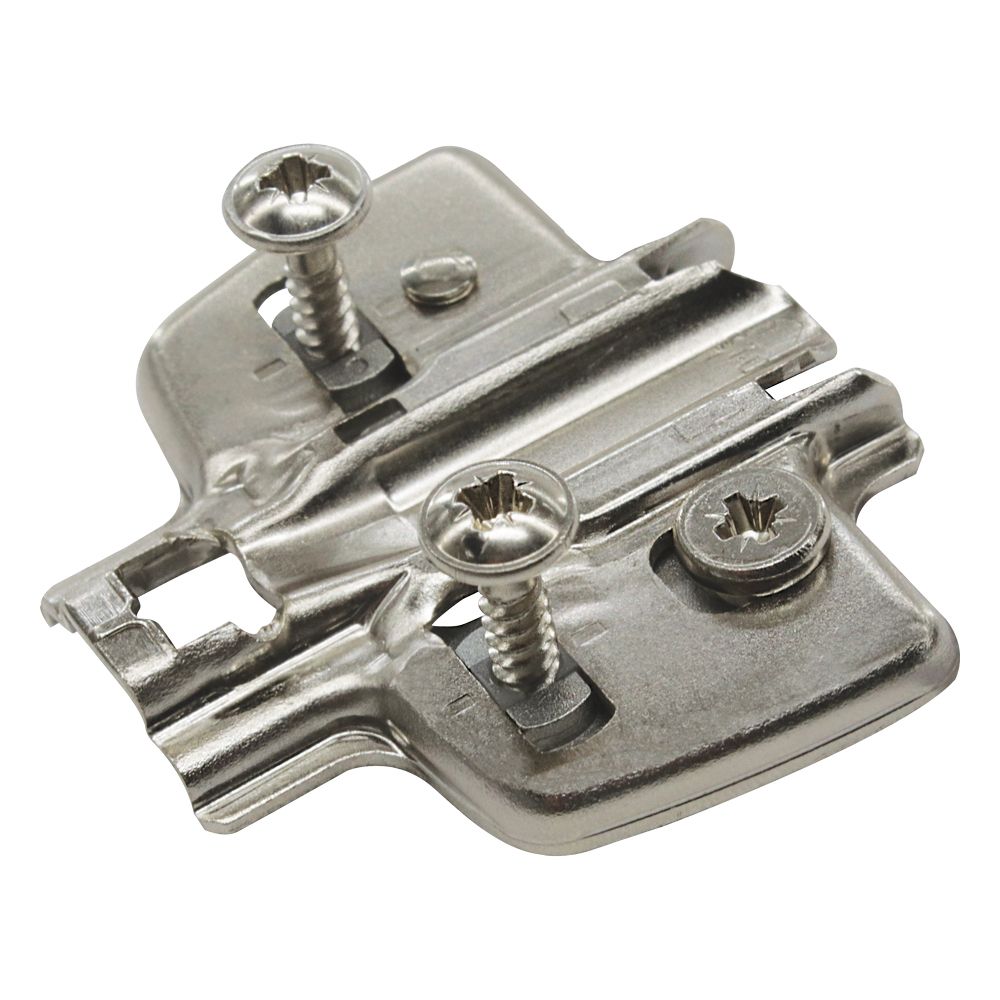

Hettich 9071651 Sensys 1.5mm Euro Plate

HETTICH 9071651 Sensys 1.5mm Euro Plate offers a sophisticated solution for your cabinet and door hardware needs. This cross mounting plate is designed for seamless integration with Sensys, Novisys, and Intermat systems, ensuring compatibility across various applications. With a hole line of 37 x 32 mm, the plate features direct height adjustment capabilities, providing an adjustment range of +2 mm to -2 mm. Constructed from steel and nickel-plated for durability, the HETTICH 9071651 is built to withstand the test of time while maintaining an elegant appearance. It is specifically designed for half overlay doors with a minimum side panel thickness of 15 mm, making it ideal for modern cabinetry. The installation process is straightforward, utilizing the Hettich Direkt system with a locating pin and special screws, which require a drilling diameter of 5 x 7.5 mm. Each package includes the necessary screws, ensuring a complete solution right out of the box. Weighing just 0.08 kg, this lightweight plate is easy to handle during installation. Elevate your cabinetry with the precision and performance of the HETTICH 9071651 Sensys 1.5mm Euro Plate, where quality meets functionality.

Sensys 1.5mm Euro Plate

• Half overlay doors, from 15 mm side panel thickness

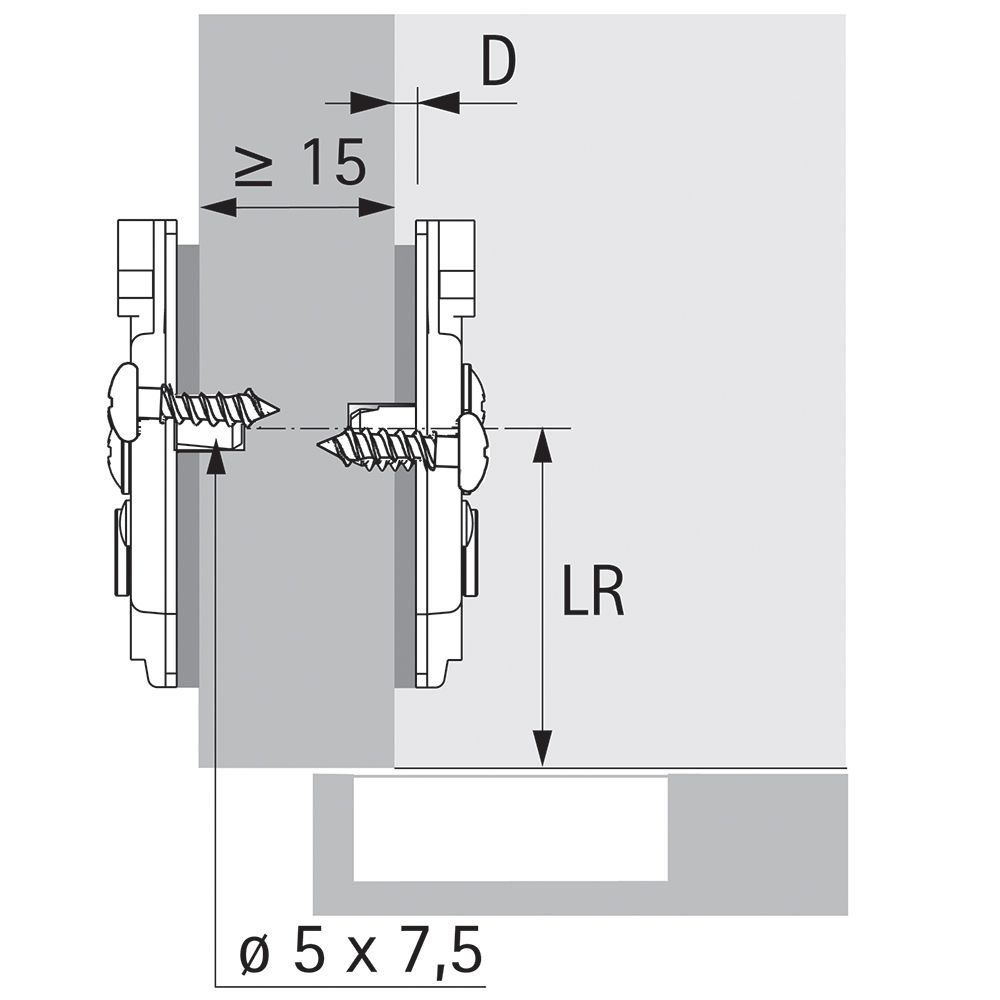

• Installation Hettich Direkt with locating pin and special screws (for drilling ø 5 x 7.5 mm)

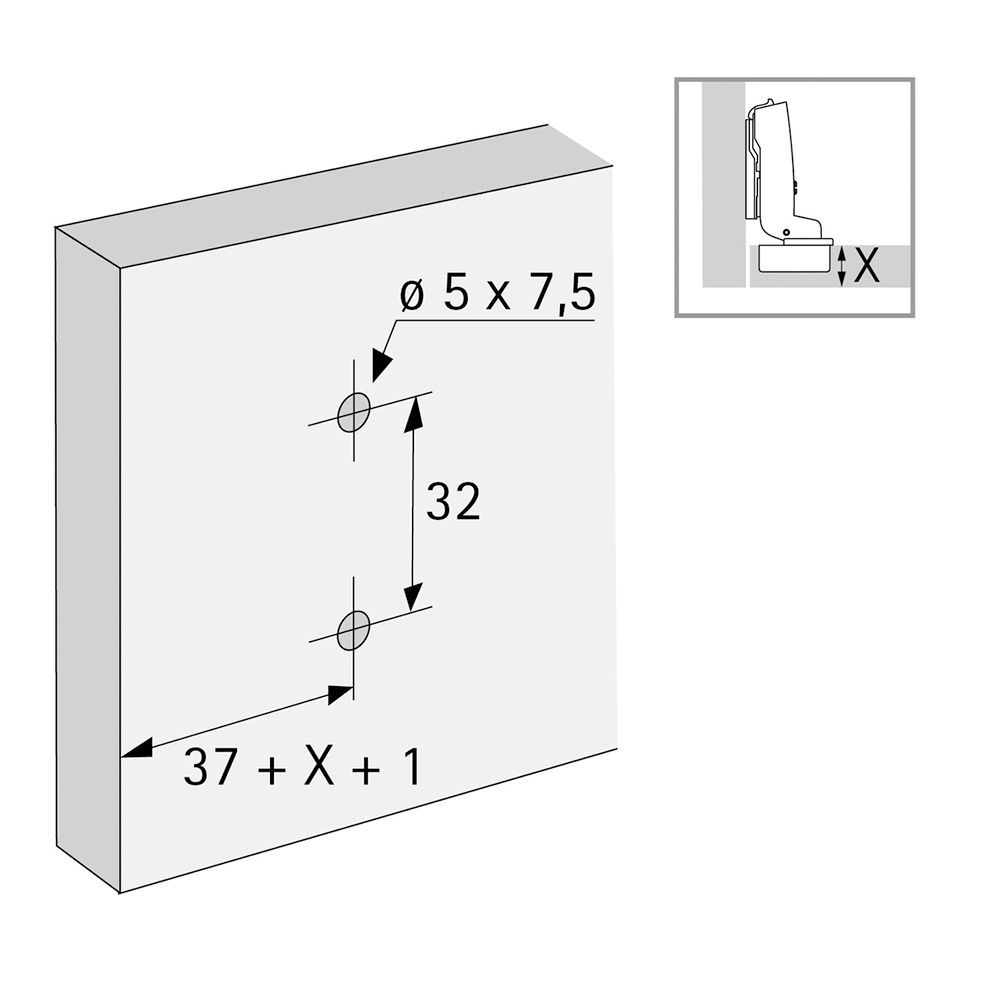

• For Hole line 37 x 32 mm
• Distance 1.5 mm
• For Sensys, Novisys and Intermat
• Adjustment range + 2 mm / - 2 mm
• Steel nickel plated
• Cross mounting plate with Direct height adjustment
