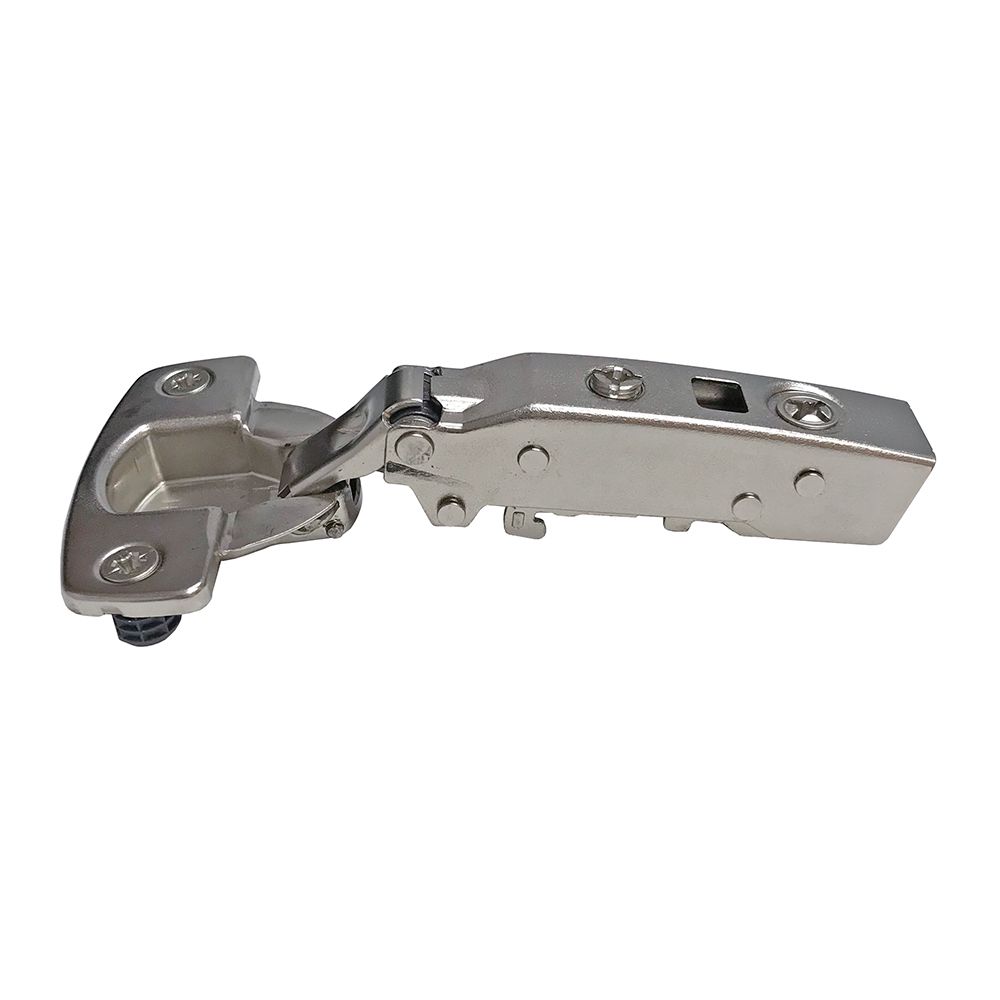

Hettich 9094301 Thin Overlay Press-In Hinge for Doors

HETTICH 9094301 Thin Door F/Overlay Press In Hinge offers a seamless blend of functionality and convenience for modern cabinetry. This innovative hinge features an integrated Silent System, ensuring a soft-close mechanism that minimizes noise when doors are shut. Designed for easy installation, the clip-on feature allows for quick assembly, making it ideal for both professionals and accomplished DIY enthusiasts. With a 7.8mm cup depth and 35mm cup diameter, this hinge accommodates door thicknesses ranging from 10mm to 19mm. Its adjustable overlay of +2/-2mm and depth adjustment of +3/-2mm offer flexibility, making it easy to achieve the perfect fit for your cabinetry. Height adjustments can be made directly in the mounting plate, enhancing installation precision and ease. Constructed from durable nickel-plated steel, the HETTICH 9094301 is not only robust but also resistant to wear, ensuring longevity. Please note that mounting plates are sold separately. This full overlay thin door hinge is a smart choice for any project where quality hardware is essential. Elevate your cabinetry with this reliable hinge that combines style and performance effortlessly.

Thin Door F/Overlay Press In Hinge

• +2/-2mm integrated overlay adjustment
• 10-19mm door thickness
• Height adjustment in the mounting plate
• Clip on installation
• Plates sold separately
• 35mm cup diameter
• Silent System (integrated soft-close device in the hinge arm)
• +3/-2mm integrated depth adjustment
• 7.8mm cup depth
• Nickel plated steel
