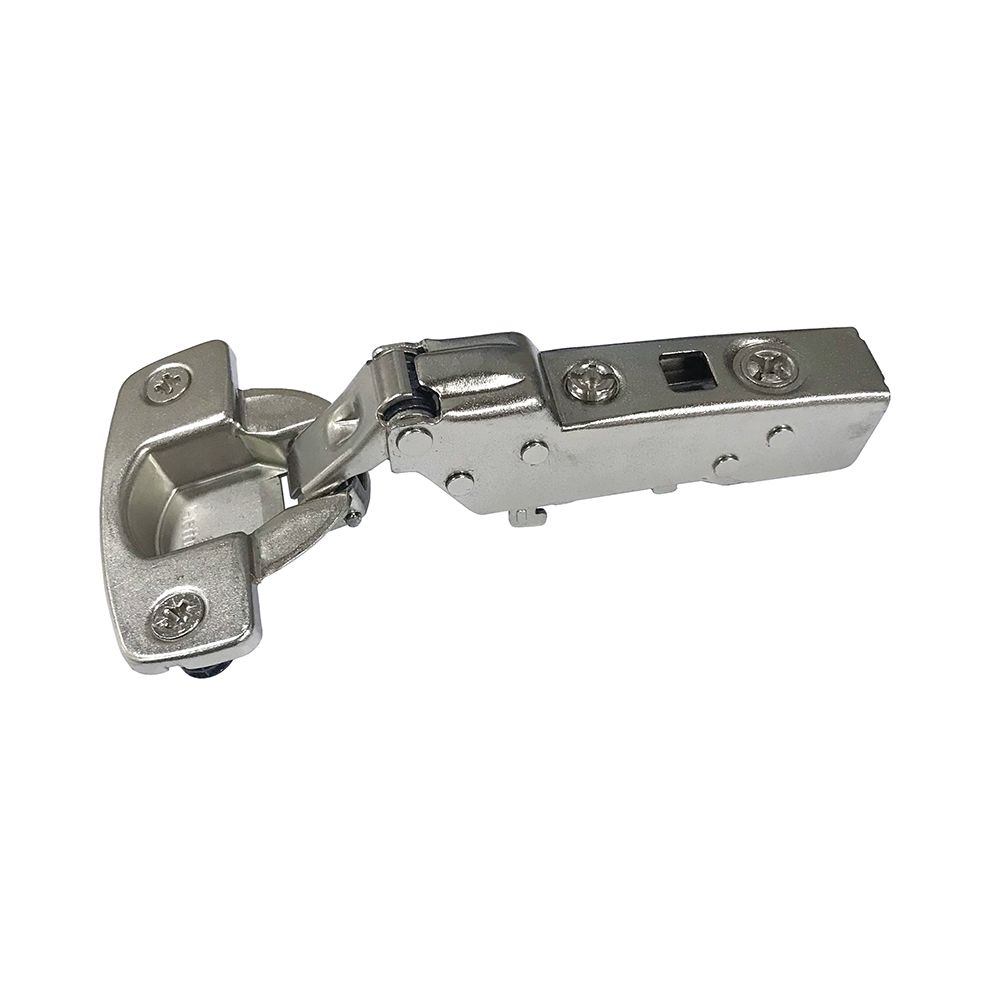

Hettich 9094311 Thin Overlay Press-In Hinge for Doors

HETTICH 9094311 Thin Door F/Overlay Press In Hinge offers a modern solution for cabinet door installations with its innovative design. Featuring an integrated Silent System, this hinge ensures a smooth and quiet closing action, ideal for both residential and commercial applications. The clip-on installation simplifies the fitting process, making it user-friendly for building professionals and knowledgeable homeowners alike. With a cup depth of 7.8mm and a cup diameter of 35mm, the hinge accommodates door thicknesses ranging from 10mm to 19mm, providing versatility for various cabinet designs. The integrated overlay adjustment of +2/-2mm and depth adjustment of +3/-2mm ensures precise alignment, while the height adjustment feature in the mounting plate allows for fine-tuning after installation. Constructed from nickel-plated steel, the HETTICH 9094311 hinge is not only durable but also visually appealing. Plates are sold separately, enabling customization based on specific project needs. Weighing just 0.210 kg, this half-overlay hinge is designed for efficiency without compromising strength. Elevate your cabinet projects with the reliable performance of HETTICH's Thin Door F/Overlay Press In Hinge.

Thin Door F/Overlay Press In Hinge

• +2/-2mm integrated overlay adjustment
• 10-19mm door thickness
• Height adjustment in the mounting plate
• Clip on installation
• Plates sold separately
• 35mm cup diameter
• Silent System (integrated soft-close device in the hinge arm)
• +3/-2mm integrated depth adjustment
• 7.8mm cup depth
• Nickel plated steel
