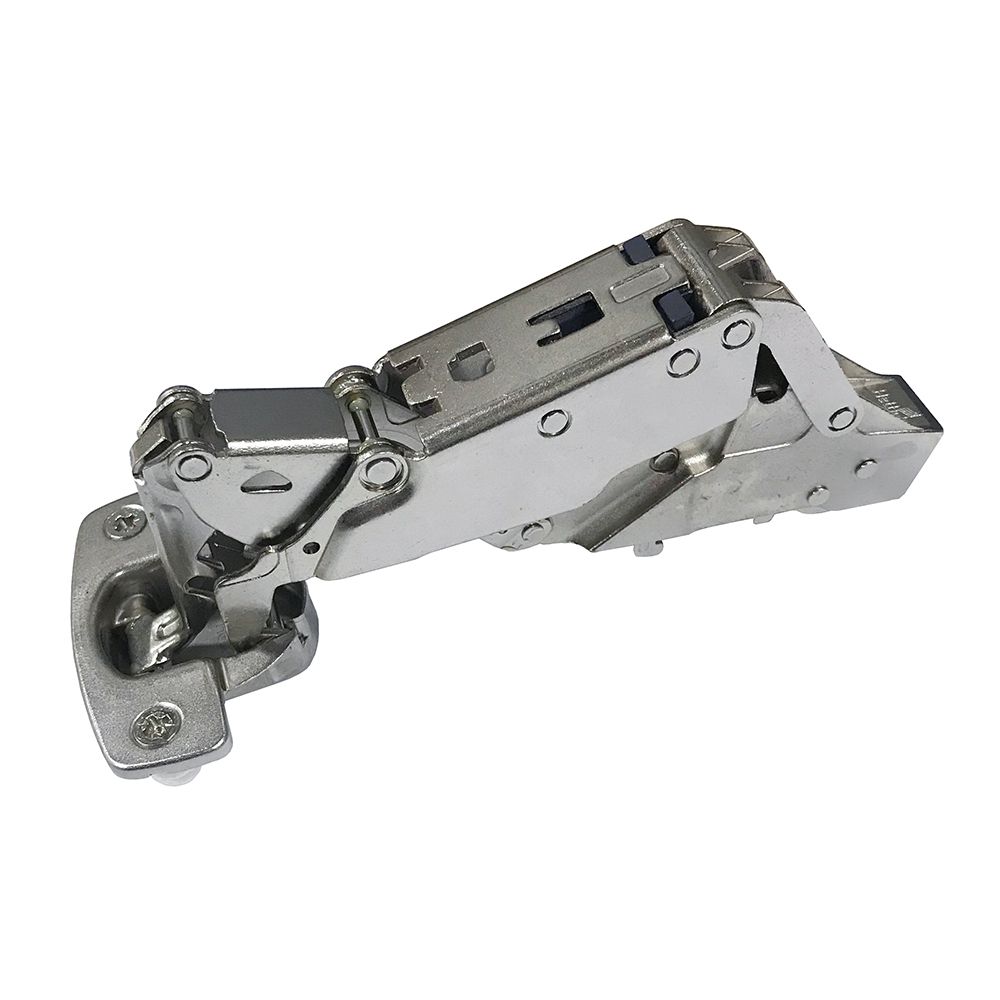

Hettich 9099631 165 0-Prot Self-Closing H-OL 2-Cam Press-In

HETTICH 9099631 165 0-Prot SelfCl H-OL 2Cam PressIn is a sophisticated hinge designed for seamless cabinet functionality. This model offers the choice of a Silent System, featuring an integrated soft-close device within the hinge arm, or a self-close option, ensuring quiet and smooth operation for your cabinetry. With an 11.6mm cup depth and a 35mm cup diameter, this hinge is engineered for versatility, accommodating door thicknesses ranging from 15mm to 32mm. The integrated overlay adjustment of +2/-2mm and depth adjustment of +3/-2mm allows for precise installation, making it easier to achieve the perfect fit. Additionally, height adjustments can be made directly in the mounting plate, providing flexibility to adapt to various cabinet designs. Constructed from durable nickel-plated steel, the HETTICH 9099631 hinge combines strength with a sleek finish, ensuring long-lasting performance that meets both aesthetic and functional demands. Plates for this hinge are sold separately, allowing for tailored assembly based on your specific needs. This European hinge is ideal for professionals seeking reliable hardware that enhances both the functionality and elegance of their cabinetry.

165 0-Prot SelfCl H-OL 2Cam PressIn

• +2/-2mm integrated overlay adjustment
• Available as the Silent System (integrated soft-close device in the hinge arm) or self-close
• Height adjustment in the mounting plate
• Clip on installation
• Plates sold separately
• 11.6mm cup depth
• 15-32mm door thickness
• 35mm cup diameter
• +3/-2mm integrated depth adjustment
• Nickel plated steel
