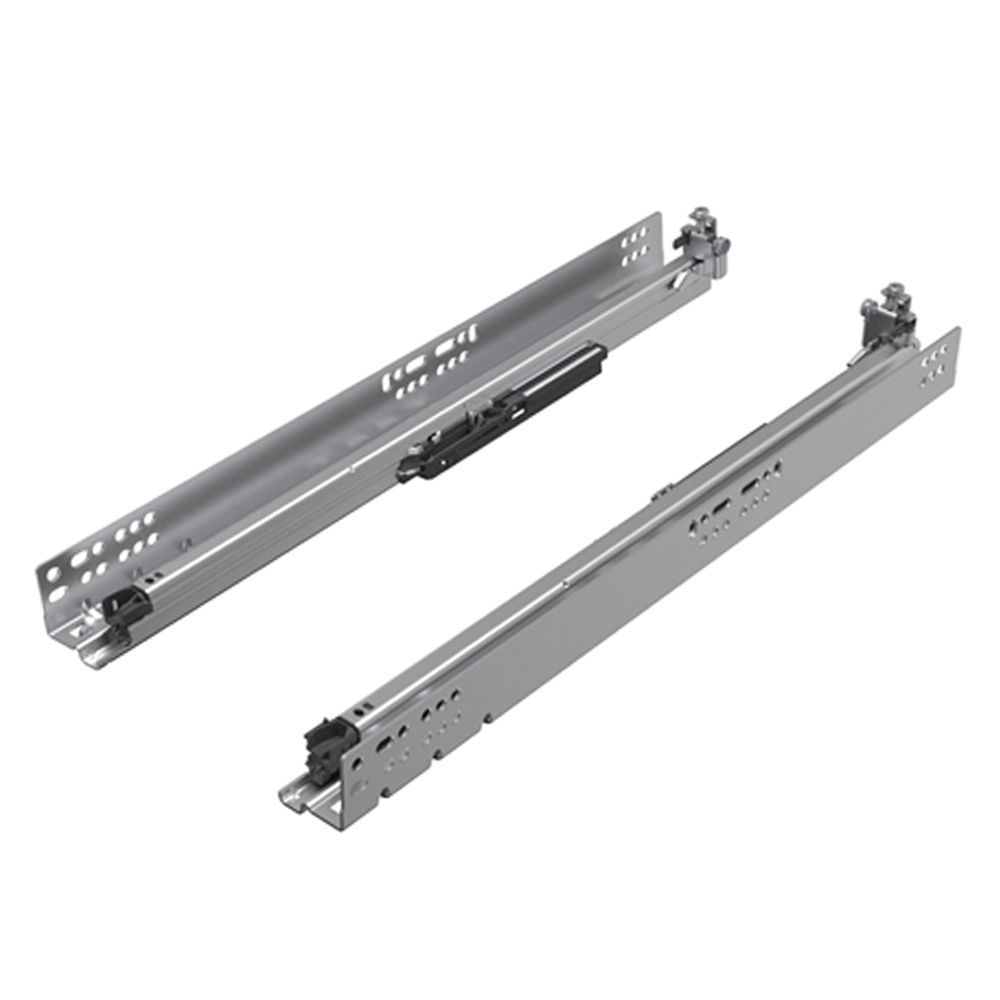

Hettich 9374861K 9" Quadro 5D Silent System Left/Right Hinge

HETTICH 9374861K 9in Quadro 5D w/Silent System LH/RH offers an exceptional solution for enhancing your cabinetry with its innovative design and advanced functionality. This high-quality sliding system is engineered to provide a seamless, quiet operation, making it ideal for both residential and commercial applications. The Quadro 5D system features a unique silent system that significantly reduces noise during movement, ensuring a tranquil environment in any space. With a length of 9 inches, it is perfectly suited for various cabinet configurations, providing versatility without compromising on performance. The left-hand and right-hand compatibility adds to its adaptability, making it a suitable choice for diverse installation needs. Crafted with precision, the HETTICH 9374861K is designed to withstand daily use while maintaining a smooth gliding action. The ease of installation is a significant advantage, allowing builders and DIY enthusiasts to implement this system with minimal hassle. Shipping is convenient as the product can be shipped via UPS, ensuring timely delivery for your projects. Invest in the HETTICH 9374861K to elevate the functionality and aesthetics of your cabinetry, achieving the perfect balance of style and practicality.

9in Quadro 5D w/ Silent System LH/RH

• Meets ANSI/BHMA Grade 1 requirements
• 5 dimensional adjustment all toolless: In & out +2/-1mm built into drawer slide Up & down + 3mm built into fixing clip Side to side +/- 1.5mm built into fixing clip Tilt adjustment with rear tilt adjuster 4mm Radial adjustment up to +/- 1.5mm
• Load Rating: 90 lbs dynamic, 100 lbs static
• Front fixing clips, sold as a set with left & right handed clips
• Height: 17/8" (includes dampener)
• Radial adjustment up to +/- 1.5mm
• Standard length drawer slides.
• Travel: Full Extension
• Easy drawer removal with front fixing clips
• Mounting: Undermount, for frame or frameless construction
• Optional Accessories Rear mounting bracket 9"- 21"
• Galvanized steel, suitable for rooms exposed to moisture
• Required Accessories Front fixing clips, sold as a set with left & right handed clips 2 Dimensional + 3mm toolless height adjustment +/- 2mm side adjustment HT9306535 for 1/2" subfront thickness HT9306536 for 5/8" subfront thickness HT9306540 for 5/8" subfront thickness - top mount
• +/- 2mm side adjustment
• Tilt adjustment with rear tilt adjuster 4mm
• Minimum interior drawer width = 51/8"
• Side to side +/- 1.5mm built into fixing clip
• Integrated hydraulic dampening device closes the drawer softly and quietly
• For 1/2" to 5/8" drawer material
• Rear mounting bracket 9"- 21"
• In & out +2/-1mm built into drawer slide
• HT9306535 for 1/2" subfront thickness
• HT9306540 for 5/8" subfront thickness - top mount
• Up & down + 3mm built into fixing clip
• HT9306536 for 5/8" subfront thickness
• 2 Dimensional + 3mm toolless height adjustment
