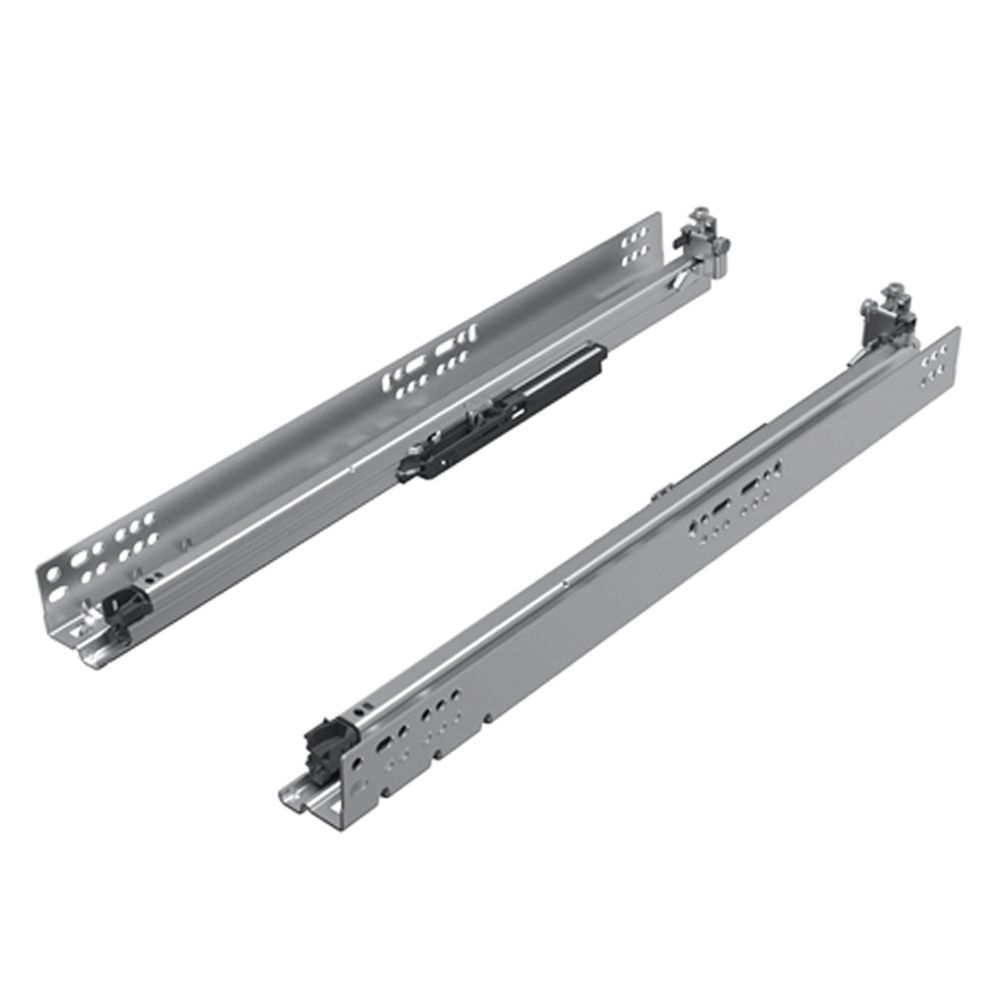

Hettich 9374863K 12in Quadro Silent System 5Dw LH/RH

HETTICH 9374863K 12in Quadro 5Dw/Silent System LH/RH offers a seamless combination of functionality and innovation for modern cabinetry. This advanced sliding system is designed for both left-hand and right-hand applications, ensuring versatility for a variety of projects. The 12-inch Quadro rails deliver smooth and quiet operation, thanks to the integrated Silent System that minimizes noise during use, making it ideal for environments where peace and quiet are paramount. Engineered with precision, the HETTICH Quadro system is built to support heavy loads while maintaining stability and durability. This ensures that your cabinet doors open and close effortlessly, enhancing the overall user experience. The sleek design not only provides aesthetic appeal but also maximizes space efficiency, making it a perfect choice for contemporary interiors. Installation is straightforward, allowing for a quick and efficient setup without compromising quality. The system is shipped via UPS, ensuring reliable delivery to your location. Whether you are a building professional or a knowledgeable homeowner, the HETTICH 9374863K 12in Quadro 5Dw/Silent System is an excellent addition to your cabinetry hardware collection, offering long-lasting performance and style. Elevate your projects with this cutting-edge sliding system that stands out in both functionality and design.

12in Quadro 5D w/ Silent System LH/RH

• Meets ANSI/BHMA Grade 1 requirements
• 5 dimensional adjustment all toolless: In & out +2/-1mm built into drawer slide Up & down + 3mm built into fixing clip Side to side +/- 1.5mm built into fixing clip Tilt adjustment with rear tilt adjuster 4mm Radial adjustment up to +/- 1.5mm
• Load Rating: 90 lbs dynamic, 100 lbs static
• Front fixing clips, sold as a set with left & right handed clips
• Height: 17/8" (includes dampener)
• Radial adjustment up to +/- 1.5mm
• Standard length drawer slides.
• Travel: Full Extension
• Easy drawer removal with front fixing clips
• Mounting: Undermount, for frame or frameless construction
• Optional Accessories Rear mounting bracket 9"- 21"
• Galvanized steel, suitable for rooms exposed to moisture
• Required Accessories Front fixing clips, sold as a set with left & right handed clips 2 Dimensional + 3mm toolless height adjustment +/- 2mm side adjustment HT9306535 for 1/2" subfront thickness HT9306536 for 5/8" subfront thickness HT9306540 for 5/8" subfront thickness - top mount
• +/- 2mm side adjustment
• Tilt adjustment with rear tilt adjuster 4mm
• Minimum interior drawer width = 51/8"
• Side to side +/- 1.5mm built into fixing clip
• Integrated hydraulic dampening device closes the drawer softly and quietly
• For 1/2" to 5/8" drawer material
• Rear mounting bracket 9"- 21"
• In & out +2/-1mm built into drawer slide
• HT9306535 for 1/2" subfront thickness
• HT9306540 for 5/8" subfront thickness - top mount
• Up & down + 3mm built into fixing clip
• HT9306536 for 5/8" subfront thickness
• 2 Dimensional + 3mm toolless height adjustment
