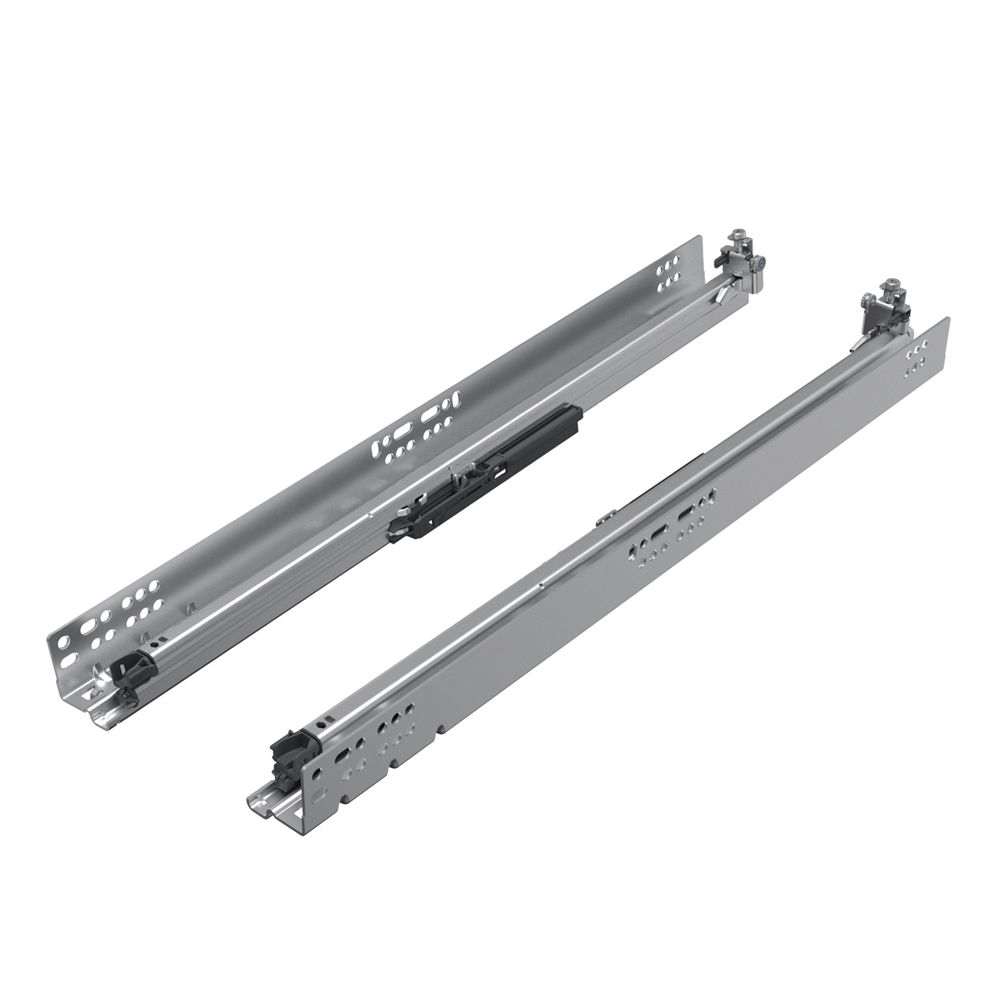

Hettich 9374899K 18" Quadro 5D Silent System Left/Right Hand

HETTICH 9374899K 18in Quadro 5D W/Silent Sys LH/RH offers an innovative solution for seamless cabinet movement. Designed with precision engineering, this hardware features a Quadro 5D system that ensures smooth, effortless opening and closing of drawers. Whether installed on the left or right, its silent operation enhances the user experience, minimizing noise in busy environments. The 18-inch length is ideal for optimizing space and ensuring durability, making it a perfect choice for various cabinetry projects. This product is particularly beneficial for those seeking a refined touch in their furniture or cabinet installations. The sophisticated design and dependable functionality are hallmarks of HETTICH, a brand recognized for its commitment to quality and innovation. Moreover, the HETTICH 9374899K is available for shipping via UPS, providing flexibility and convenience for your projects. Whether you're a building professional or a discerning homeowner, this product integrates seamlessly into modern design aesthetics while delivering the performance you expect. Elevate your cabinetry with the HETTICH 9374899K and experience the difference in quality and functionality that sets it apart from standard hardware options.

18in Quadro 5D w/ Silent Sys LH/RH

• Meets ANSI/BHMA Grade 1 requirements
• 5 dimensional adjustment all toolless: In & out +2/-1mm built into drawer slide Up & down + 3mm built into fixing clip Side to side +/- 1.5mm built into fixing clip Tilt adjustment with rear tilt adjuster 4mm Radial adjustment up to +/- 1.5mm
• Load Rating: 90 lbs dynamic, 100 lbs static
• Front fixing clips, sold as a set with left & right handed clips
• Height: 17/8" (includes dampener)
• Radial adjustment up to +/- 1.5mm
• Standard length drawer slides.
• Travel: Full Extension
• Easy drawer removal with front fixing clips
• Mounting: Undermount, for frame or frameless construction
• Optional Accessories Rear mounting bracket 9"- 21"
• Galvanized steel, suitable for rooms exposed to moisture
• Required Accessories Front fixing clips, sold as a set with left & right handed clips 2 Dimensional + 3mm toolless height adjustment +/- 2mm side adjustment HT9306535 for 1/2" subfront thickness HT9306536 for 5/8" subfront thickness HT9306540 for 5/8" subfront thickness - top mount
• +/- 2mm side adjustment
• Tilt adjustment with rear tilt adjuster 4mm
• Minimum interior drawer width = 51/8"
• Side to side +/- 1.5mm built into fixing clip
• Integrated hydraulic dampening device closes the drawer softly and quietly
• For 1/2" to 5/8" drawer material
• Rear mounting bracket 9"- 21"
• In & out +2/-1mm built into drawer slide
• HT9306535 for 1/2" subfront thickness
• HT9306540 for 5/8" subfront thickness - top mount
• Up & down + 3mm built into fixing clip
• HT9306536 for 5/8" subfront thickness
• 2 Dimensional + 3mm toolless height adjustment
