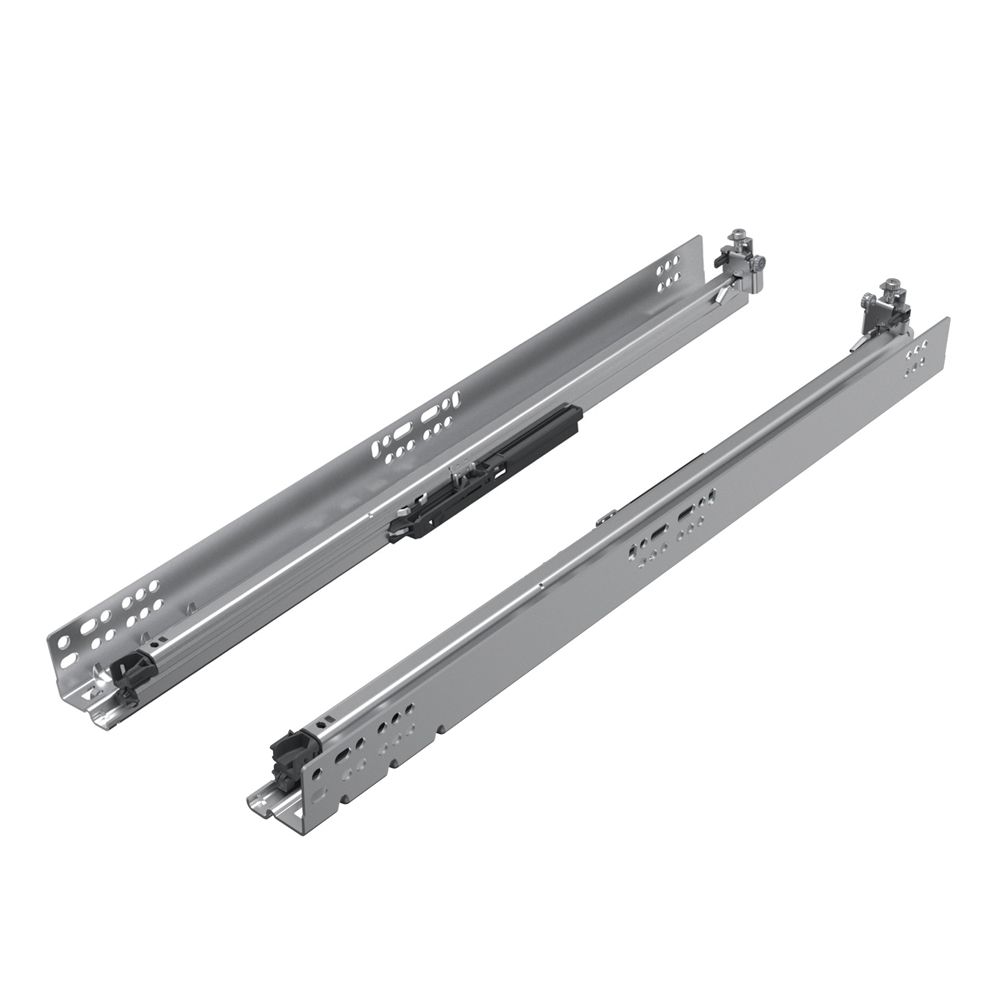

HETTICH 9374901K 21in Quadro 5D W/Silent Sys LH/RH offers a sophisticated solution for your cabinetry needs. Designed with precision, this sliding system incorporates Hettich's renowned Quadro technology, which ensures smooth and silent operation. The 21-inch length is ideal for a variety of applications, making it suitable for both residential and commercial settings. The Silent System feature is particularly noteworthy, as it minimizes noise during the opening and closing of doors, enhancing the overall user experience. Additionally, this model is compatible with both left-hand and right-hand configurations, providing versatility for diverse installations. Constructed with durability in mind, the HETTICH 9374901K is built to withstand daily use while maintaining its performance. The ease of installation is another advantage, allowing professionals and DIY enthusiasts alike to achieve a high-quality finish without hassle. Shipping is convenient, as this product can be sent via UPS, making it a practical choice for those looking to streamline their projects. Elevate your cabinetry with the HETTICH 9374901K, where quality meets innovation for an exceptional functionality.

21in Quadro 5D w/ Silent Sys LH/RH

• Meets ANSI/BHMA Grade 1 requirements
• 5 dimensional adjustment all toolless: In & out +2/-1mm built into drawer slide Up & down + 3mm built into fixing clip Side to side +/- 1.5mm built into fixing clip Tilt adjustment with rear tilt adjuster 4mm Radial adjustment up to +/- 1.5mm
• Load Rating: 90 lbs dynamic, 100 lbs static

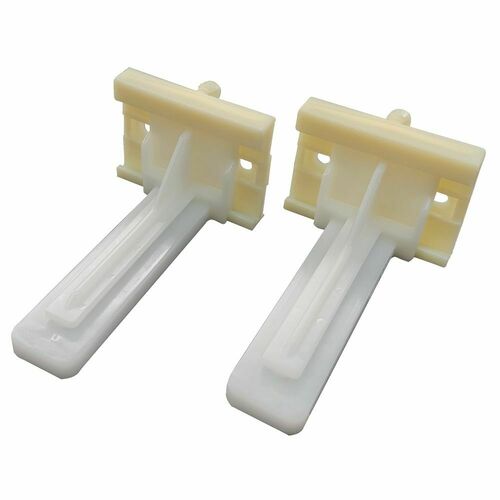

• Front fixing clips, sold as a set with left & right handed clips
• Height: 17/8" (includes dampener)
• Radial adjustment up to +/- 1.5mm
• Standard length drawer slides.

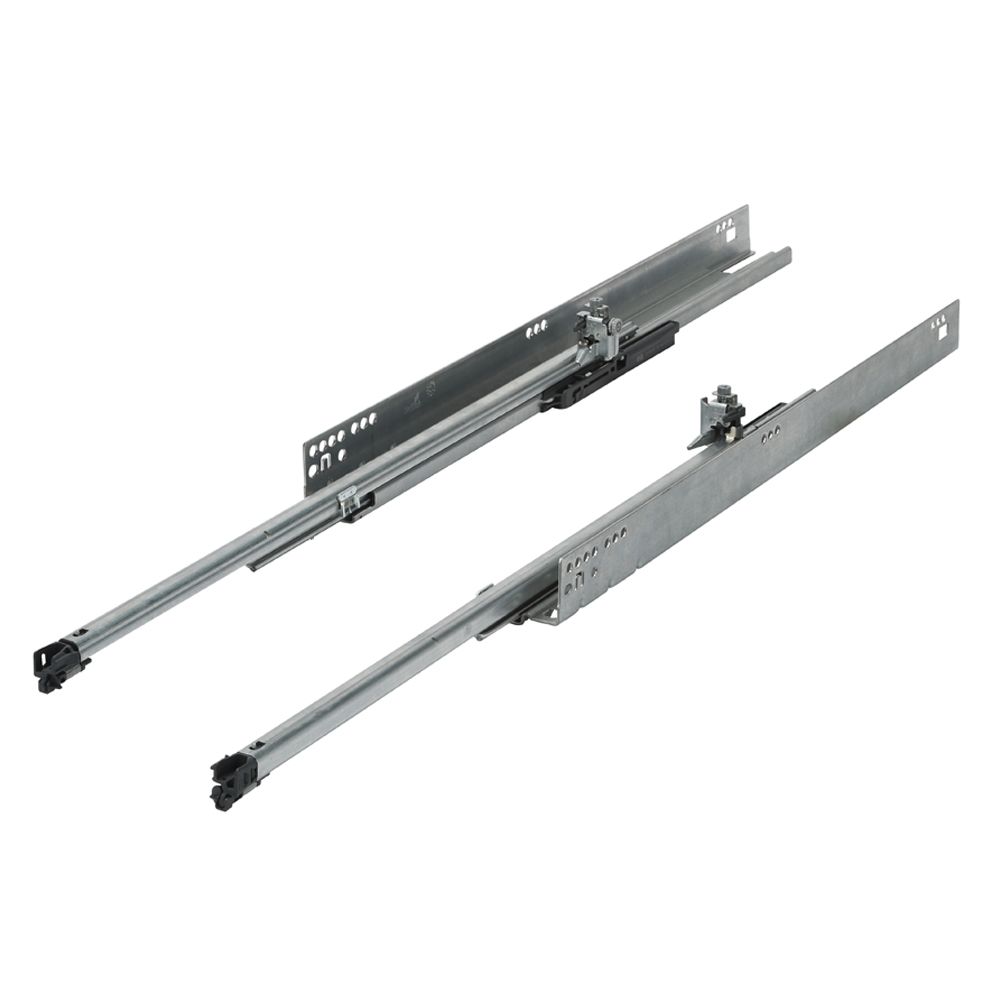

• Travel: Full Extension
• Easy drawer removal with front fixing clips
• Mounting: Undermount, for frame or frameless construction
• Optional Accessories Rear mounting bracket 9"- 21"
• Galvanized steel, suitable for rooms exposed to moisture
• Required Accessories Front fixing clips, sold as a set with left & right handed clips 2 Dimensional + 3mm toolless height adjustment +/- 2mm side adjustment HT9306535 for 1/2" subfront thickness HT9306536 for 5/8" subfront thickness HT9306540 for 5/8" subfront thickness - top mount
• +/- 2mm side adjustment
• Tilt adjustment with rear tilt adjuster 4mm
• Minimum interior drawer width = 51/8"
• Side to side +/- 1.5mm built into fixing clip
• Integrated hydraulic dampening device closes the drawer softly and quietly
• For 1/2" to 5/8" drawer material
• Rear mounting bracket 9"- 21"
• In & out +2/-1mm built into drawer slide
• HT9306535 for 1/2" subfront thickness
• HT9306540 for 5/8" subfront thickness - top mount
• Up & down + 3mm built into fixing clip
• HT9306536 for 5/8" subfront thickness
• 2 Dimensional + 3mm toolless height adjustment
