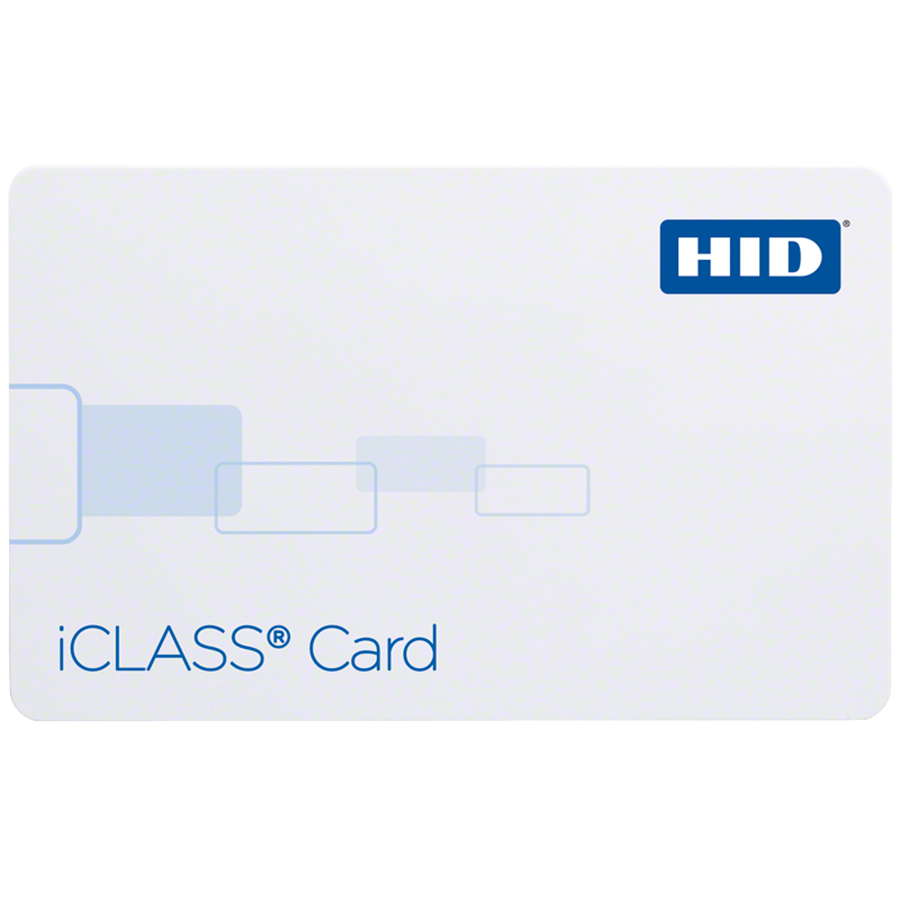

HID 2000HPGGMNFC126 iClass Printable Cards 26bit 2K FAC-126

HID Global Corporation 2000HPGGMNFC126 iClass Printable Cards 26bit 2K FAC-126 leverage advanced 13.56 MHz contactless smart card technology, making them ideal for a variety of applications including access control, biometrics, cashless vending, and more. With multiple securely separated files, these cards not only accommodate current needs but also support future growth and customization. These cards can be outfitted with a magnetic stripe, barcode, and even custom artwork or photo identification, providing versatility for any security setup. The iClass technology ensures robust security features such as mutual authentication and encrypted data transfer, significantly reducing the risk of compromised data or duplicated cards. Constructed from thin and flexible PVC, the cards meet ISO standards and are compatible with direct image and thermal transfer printers. With a memory capacity of 2K bits (256 bytes), they offer two application areas: a standard HID access control area and a user-customizable section. Operating efficiently across a wide temperature range, these cards can be used in various environments. HID Global stands behind the quality of their products, offering a lifetime warranty. Enhance your security measures with the reliability and flexibility of HID iClass Printable Cards.

iClass Printable Cards 26bit 2K FAC-126

HID’s iCLASS" 13.56 MHz read/write contactless smart card technology can be used for diverse applications such as access control, biometrics, cashless vending, public transportation, airline ticketing and customer loyalty programs. Multiple, securely separated files enable numerous applications and support future growth. The iCLASS Card offers iCLASS 13.56 MHz contactless read/write smart card technology along the ability to add a magnetic stripe, barcode, and anti-counterfeiting Features: including custom artwork or a photo identification directly on the credential. Your iCLASS Card can now be utilized for such diverse applications including access control, network log-on security, automotive vehicle identification, cashless vending, time and attendance, and biometric verification. Multiple securely separated files enable numerous applications and can support future capabilities. The iCLASS Card meets strict ISO thickness standards for use with direct image and thermal transfer printers. iCLASS® was specifically designed to make access control more powerful, more versatile, and more secure. All radio frequency data transmission between the card and reader is encrypted using a secure algorithm. By using industry standard encryption techniques, iCLASS reduces the risk of compromised data or duplicated cards. For even higher security, the card data may also be protected with DES or triple DES encryption. Multiple securely separated application areas are each protected by 64-bit diversified read/write keys which allow complex applications and provide for future expansion. Security mechanisms such as mutual authentication and encryption are efficiently combined with fast processing and data communication, resulting in transaction times of less than 100 milliseconds for a typical secure e-purse transaction.

Features:

• 13.56 MHz read/write contactless smart card technology provides high-speed, reliable communications with high data integrity.
• iCLASS technology ensures high security with mutual authentication, encrypted data transfer, and 64-bit diversified keys for read/write capabilities.
• Any existing HID format can be factory or field programmed into the secure HID access control application area.
• Available in 2k bit (256 Byte), 16k bit (2K Byte) or 32k bit (4K Byte) configurations.
• Meets ISO standards for thickness for use with all direct image and thermal transfer printers.
• Add a magnetic stripe, barcode, anti-counterfeiting, or photo ID.

2K BIT (256 BYTE) ICLASS Features:

• Available in two application area configuration only.
• Provides the HID standard access control application area and one other application area for user customization.
• Meets ISO 15693 standard for contactless communications.
• Provides a cost effective way to improve the security of your access control installation.

16K BIT (2K BYTE) & 32K BIT (4K BYTE) ICLASS Features:

• Sufficient read/write memory to store multiple biometric templates.
• 16k available in a two or sixteen application area configuration. 32k available with 16k memory configured in either 2 or 16 application areas, plus an additional 16k user configurable memory.
• Multiple securely separated files enable numerous applications, including the HID standard access control application, and support future growth.
• Meets ISO 15693 for contactless communications.

Specifications:

• Base Part Number:
• 2000 for 2K bit (256 Byte) card.
• 2001 for 16k bit (2k Byte) card with 2 application areas.
• 2002 for 16k bit (2k Byte) card with 16 application areas.
• 2003 for32k bit (4k Byte)16k/2+ 16k/1.
• 2004 for 32k bit (4k Byte) 16k/16 + 16k/1.
• Description:
• 13.56 MHz contactless smart card.
• Card Construction:
• Thin, flexible polyvinyl chloride (PVC) laminate.
• Dimensions:
• 2.127"(5.4cm) x 3.375"(8.57cm) x 0.033"(0.084cm)
• Weight:
• 0.20oz (5.7 g)
• Operating Temperature:
• - 40° to 158° F (- 40° to 70°C)
• Operating Humidity:
• 5 – 95% non-condensing
• Operating Frequency:
• 13.56 MHz
• RF Interface
• As suggested by ISO/IEC:15693 read/write
• Transaction Time:
• < 100 ms typical.
• Baud Rate:
• 15693 mode - 26 kbps.
• Memory Type:
• EEPROM, read/write
• Multi-application Memory:
• 2K bit (256 Byte) card: 2 application areas.
• 16K bit (2K Byte) card: 2 or 16 application areas.
• 32K bit (4K Byte) card: 16k bits in 2 or 16 application areas plus 16k bits user configurable.
• Write Endurance:
• Min. 100,000 cycles
• Data Retention:
• 10 Years.
• Typical Maximum Read Range:
• R10: 2.0-3.0" (5.0-7.6cm)
• R30/RW300: 2.0-3.5" (5.0-8.9cm)
• R40/RW400: 2.5-4.5" (6.3-11.4cm)
• RK40/RWK400: 3.0-4.0" (7.6-10.1cm)
• Dependent upon installation conditions.
• Card Marking:
• Print directly to the card with a direct image or thermal transfer printer. Slot punch vertically for easy use.
• Custom Graphics:
• Optional.
• Operates With:
• iCLASS® readers.
• Warranty:
• Lifetime Warranty.
