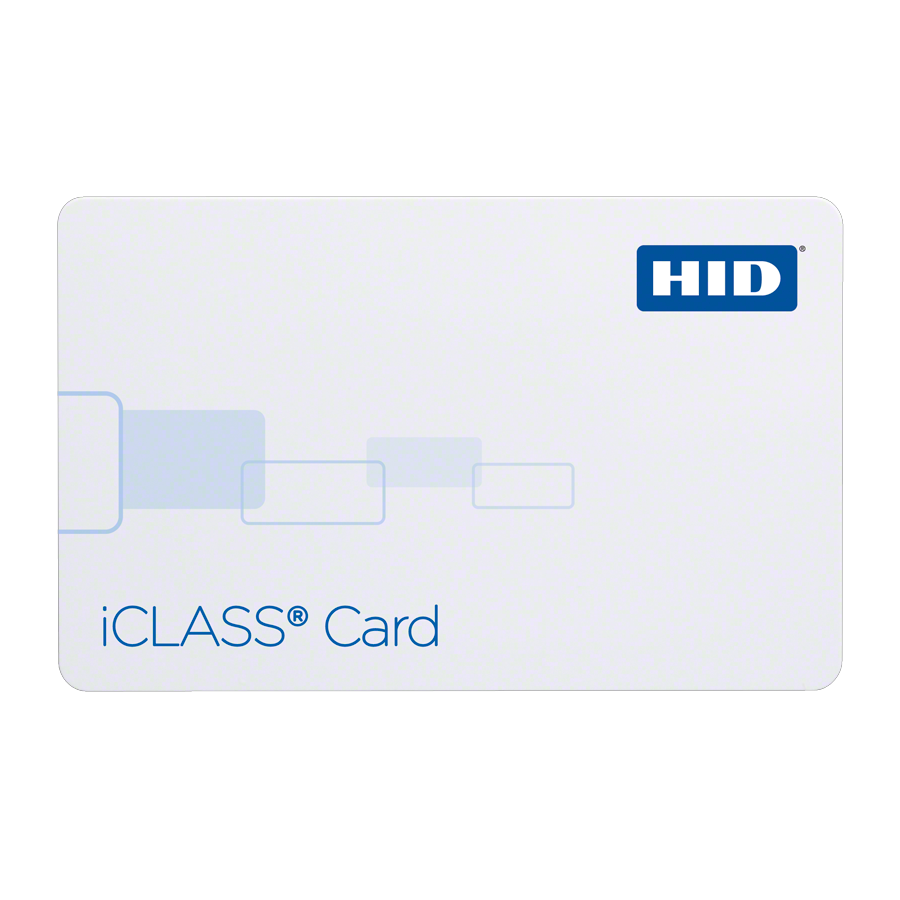

HID 2000HPGGMNFC128 iClass Printable Cards 26bit 2K FAC-128

HID Global Corporation 2000HPGGMNFC128 iClass Printable Cards offer a sophisticated solution for modern access control needs. Utilizing 13.56 MHz read/write contactless smart card technology, these cards ensure high-speed, reliable communication and enhanced security compared to legacy systems. Designed to meet ISO standards for card size and thickness, they are compatible with direct image and thermal transfer printers, allowing for custom graphics and photo ID printing. The 2000HPGGMNFC128 card features a thin, flexible PVC laminate construction, making it durable yet lightweight at just 0.20 oz. This card supports versatile applications including network log-on security, cashless vending, and biometric identification. With the ability to configure memory options from 2K bit to 32K bit, it accommodates multiple application areas, while also supporting existing HID card formats. Equipped with advanced security features such as mutual authentication, encrypted data transfer, and options for anti-counterfeiting measures like holograms and micro-printing, these cards provide peace of mind in any environment. With an operating temperature range of -40° to 158° F and a lifetime warranty, the HID Global iClass Printable Cards are the perfect choice for professionals seeking robust, reliable access solutions.

iClass Printable Cards 26bit 2K FAC-128

iCLASS smart card technology was specifically designed to make access control more powerful, more versatile, and more secure when compared with legacy 125 kHz frequency technologies. iCLASS 13.56 MHz read/write contactless smart card technology provides versatile interoperability in applications such as access control, network log-on security, cashless vending, time and attendance, event management and biometric identification. iCLASS smart card technology enables mutual authentication between smart card and reader, encrypted data transfer, and uses 64-bit diversified keys for read/write contactless smart card capabilities. However, these techniques alone are no longer sufficient to protect card data from modern hacking techniques. The iCLASS smart card meets ISO standard for card size and thickness for use with direct image and thermal transfer printers. It features a graphics quality surface optimized for photo ID printing, and is available in standard PVC construction, or a composite polyester/PVC construction for more demanding high wear and tear environments. The smart card can be produced with visual security and anti-counterfeiting features such as holograms, ultra-violet fluorescent inks, micro-printing, or a custom logo to quickly and easily identify genuine smart cards.

Features:

• 13.56 MHz read/write contactless smart card technology provides high-speed, reliable communications and powerful access control.
• Meets ISO standards for thickness for use with direct image and thermal transfer printers.
• Offers the ability to add a magnetic stripe, barcode, anti-counterfeiting features, custom artwork, or photo ID.
• Available in 2k bit (256 byte), 16k bit (2K Byte) or 32k bit (4K Byte) memory configurations.
• Supports all existing HID card formats, including corporate 1000.
• Supports field programming of any existing HID format into the HID access control application area on the card.
• Provides versatile interoperability in applications like access control, network log-on, cashless vending and many other areas.

Specifications:

• Base Part Number:
• 2000 for 2K bit (256 Byte) card.
• 2001 for 16k bit (2k Byte) card with 2 application areas.
• 2002 for 16k bit (2k Byte) card with 16 application areas.
• 2003 for32k bit (4k Byte)16k/2+ 16k/1.
• 2004 for 32k bit (4k Byte) 16k/16 + 16k/1.
• Description: 13.56 MHz contactless smart card.
• Card Construction: Thin, flexible polyvinyl chloride (PVC) laminate.
• Dimensions: 2.127"(5.4cm) x 3.375"(8.57cm) x 0.033"(0.084cm)
• Weight: 0.20oz (5.7 g)
• Operating Temperature: - 40° to 158° F (- 40° to 70°C)
• Operating Humidity: 5 – 95% non-condensing
• Operating Frequency: 13.56 MHz
• RF Interface As suggested by ISO/IEC:15693 read/write
• Transaction Time: < 100 ms typical.
• Baud Rate: 15693 mode - 26 kbps.
• Memory Type: EEPROM, read/write
• Multi-application Memory:
• 2K bit (256 Byte) card: 2 application areas.
• 16K bit (2K Byte) card: 2 or 16 application areas.
• 32K bit (4K Byte) card: 16k bits in 2 or 16 application areas plus 16k bits user configurable.
• Write Endurance: Min. 100,000 cycles
• Data Retention: 10 Years.
• Typical Maximum Read Range:
• R10: 2.0-3.0" (5.0-7.6cm)
• R30/RW300: 2.0-3.5" (5.0-8.9cm)
• R40/RW400: 2.5-4.5" (6.3-11.4cm)
• RK40/RWK400: 3.0-4.0" (7.6-10.1cm)
• Dependent upon installation conditions.
• Card Marking: Print directly to the card with a direct image or thermal transfer printer. Slot punch vertically for easy use.
• Custom Graphics: Optional
• Operates With: iCLASS readers.
• Warranty: Lifetime Warranty
