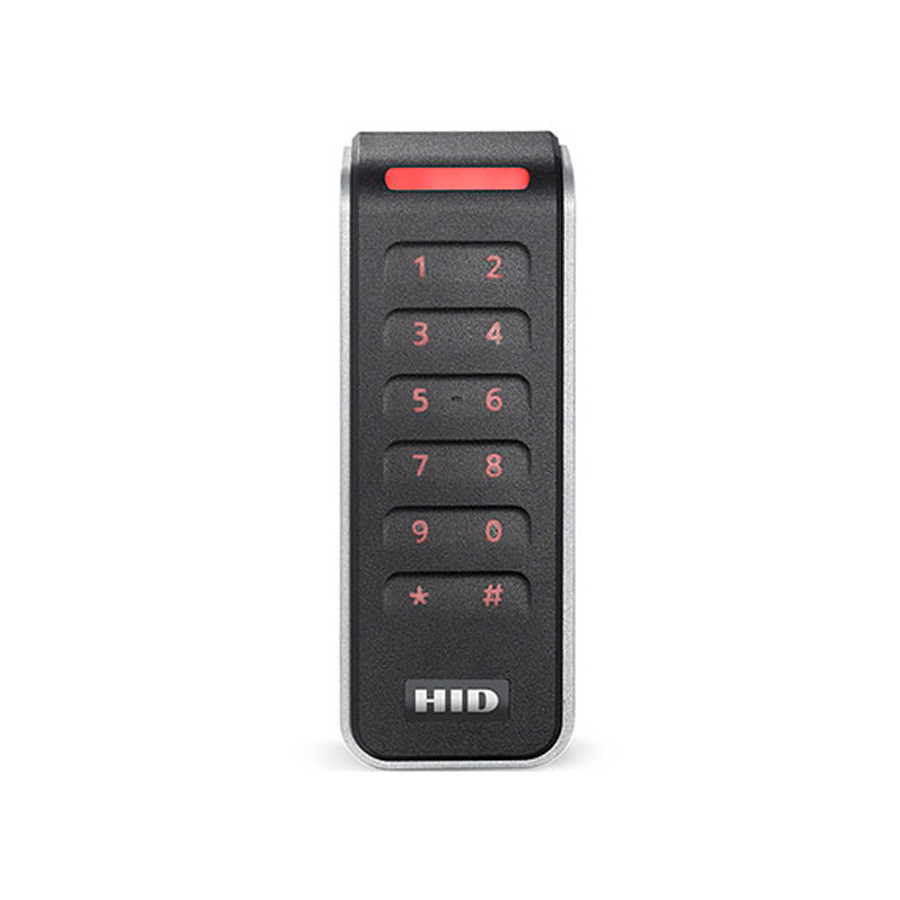

HID 20KTKS-00-000000 Signo Narrow Stile Keypad Reader, 12 Key, Bluetooth, Prox, Black/SilverHID Global Corporation 20KTKS-00-000000 Narrow Stile Signo Keypad Reader combines state-of-the-art technology with a sleek design, making it an excellent choice for modern access control systems. This reader supports a wide range of credential technologies, including Bluetooth and NFC, ensuring compatibility with both current and future applications. Designed for versatility, it features a 12-key keypad and offers secure authentication through OSDP. With an impressive IP65 rating, the 20KTKS reader is built to withstand outdoor conditions while providing reliable performance. Its operating voltage of 12V DC and a typical read range of 1.6 to 4 inches for various credential types make it an adaptable solution for different environments. The reader seamlessly integrates into the HID Origo® ecosystem, enhancing security management and configuration. Equipped with EAL5+ certified secure element hardware, the reader guarantees data authenticity and privacy, while also supporting over 15 common credential technologies, including HID Proximity and MIFARE. The flush mount terminal block and pigtail wiring options facilitate easier installation. Whether for automotive, residential, or commercial applications, the HID Global Corporation 20KTKS-00-000000 provides a robust and secure access control solution tailored to meet the demands of today’s security professionals.
Narrow Stile, Signo Keypad Reader, 12 Key, Standard Profile/Credential, Terminal Strip, OSDP, 125khz, 13.56 MHz, 2.4 GHz, Prox, Bluetooth, 12VDC, UL, FCC, Black Body, Silver Trim
Notice: The info below is not item specific.
HID Signo™ is the signature line of physical access control readers from HID Global. The versatility, performance and connected capabilities of HID Signo readers set a new industry benchmark for the most highly adaptable, interoperable and secure approach to electronic access control. Offering an unparalleled breadth of functionality, HID Signo affords security system installers and administrators a simple and effective approach to secure access control for almost any scenario. With support for the widest array of credential technologies — past, present and future — HID Signo is the perfect choice for those looking to make the transition to a secure authentication technology. HID Signo readers transcend the traditional approach to security by being designed to be connected and managed remotely without needing to physically touch each device. This functionality empowers access control systems to dynamically respond as new needs, configurations or threats arise.
Features:
- Highly Versatile:
- Support for the widest range of credential technologies, including HID Mobile Access® via native Bluetooth and Near Field Communication (NFC).
- Unparalleled Performance:
- Ultra secure storage of cryptographic keys on certified secure element hardware, plus a new surface detection feature that enables the reader to automatically recalibrate and optimize read range performance.
- Connected to the Future:
- All readers include out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communication.
- Mobile-ready by default, including Apple's Enhanced Contactless Polling (ECP) to support credentials in Apple Wallet.
- Sleek, innovative design to suit modern architecture.
- Integrated OSDP for secure authentication and configuration post installation.
- Built on a hardware platform designed to be adaptable to support future technology.
- Designed to seamlessly integrate into the HID Origo® ecosystem.
- Multi-Layered security to ensure data authenticity and privacy.
- EAL5+ Certified Secure Element Hardware.
- Trusted secure authentication using the SIO data model.
- Supports iCLASS Elite™ and Corporate 1000 Programs.
- Go mobile with native Bluetooth and NFC support.
- Integrated 125 kHz credential read support for easy migration.
- Supports over 15 common credential technologies.
- Flush mount terminal block and pigtail wiring options.
- Robust outdoor performance with an IP65 rating.
- Easily and securely managed using HID Reader Manager®.
- Configure via a mobile device or OSDP.
- Update firmware in response to threats.
- Personalize by configuring audio visual or keypad settings.
- Deactivate legacy credential technology to conclude secure migration.
Specifications:
- HID Signo Reader Model:
- 2.4 GHz (Bluetooth) Credential Compatibility:
- Mobile Credentials powered by Seos® (HID Mobile Access).
- 13.56 MHz (NFC) Credential Compatibility:
- Seos, iCLASS SE®, iCLASS SR®, iCLASS®, MIFARE Classic, MIFARE DESFire EV1/EV2, FeliCa™ & Contactless e-Purse Application Specification (CEPAS), Mobile Credentials powered by Seos (HID Mobile Access).
- 125 kHz Credential Compatibility:
- HID Proximity®, Indala® Proximity, AWID Proximity, and EM Proximity.
- Typical Read Range:
- Seos®,MIFARE Classic, MIFARE DESFire EV1/EV2 & ISO14443A Single Technology Cards: 1.6 to 4 in (4 to 10 cm)
- HID / AWID Proximity®, Indala Proximity®, EM Proximity & 125 kHz Single Technology Cards: 2.4 to 4 in (6 to 10 cm)
- Mounting:
- 20, 20K: Suited for mullion-mount door installations or any flat surface mounting.
- 40, 40K: Suited to mount and cover single gang switch boxes with a slotted mounting plate for alternate back-box spacing.
- Color: Black bezel with silver trim baseplate.
- Keypad:
- 20: None
- 20K: Yes (2 x 6 layout)
- 40: None
- 40K: Yes (3 x 4 layout)
- Dimensions:
- 20: 1.77 in x 4.78 in x 0.77 in (45 mm x 121.5 mm x 19.5 mm)
- 20K: 1.78 in x 4.79 in x 0.85 in (45 mm x 121.5 mm x 21.5 mm)
- 40: 3.15 in x 4.78 in x 0.77 in (80 mm x 121.5 mm x 19.5 mm)
- 40K: 3.16 in x 4.79 in x 0.85 in (80 mm x 121.5 mm x 21.5 mm)
- Product Weight:
- 20: Pigtail: 3.35 oz (95 g), Terminal: 2.65 oz (75 g).
- 20K: Pigtail: 3.88 oz (110 g), Terminal: 3.17 oz (90 g).
- 40: Pigtail: 4.94 oz (140 g), Terminal: 4.23 oz (120 g).
- 40K: Pigtail: 5.64 oz (160 g), Terminal: 4.94 oz (140 g).
- Operating Voltage:
- Current Draw:
- 20: NSC4: 60 mA, Peak: 250 mA, Max. Avg: 70 mA, IPM5: 45 mA.
- 20K: NSC4: 65 mA, Peak: 250 mA, Max. Avg: 75 mA, IPM5: 48 mA.
- 40: NSC4: 65 mA, Peak: 250 mA, Max. Avg: 75 mA, IPM5: 45 mA.
- 40K: NSC4: 70 mA, Peak: 250 mA, Max. Avg: 80 mA, IPM5: 55 mA.
- Device Input and Output:
- Input: Tri-color LED, Buzzer, Hold @ Active Low.
- Output: Tamper Relay 0-60V DC @ 100mA Max (Dry Contact).
- Operating Temperature & Humidity:
- - 31° F to + 150° F (- 35° C to + 66° C) 0% to 95% non-condensing.
- Environmental Rating:
- UL294 Outdoor and Indoor rated, IP65.
- Transmit Frequency:
- 125 kHz, 13.56 MHz, and 2.4 GHz
- Communications & Panel Connection:
- Wiegand, Clock-and-Data and RS-485 Half Duplex (OSDP) via Pigtail (18 in / 0.5 m) or Terminal Strip.
- Device Management:
- HID Reader Manager / OSDP configuration.
- Certifications:
- UL294/cUL (US), FCC (US), IC (Canada), CE (EU), RCM (Australia, New Zealand), SRRC (China), KCC (Korea), NCC (Taiwan), iDA (Singapore), RoHS, MIC (Japan), Green Circle, Bluetooth SIG, and additional regions.
- Security Ratings:
- EAL 5+ Certified Secure Element Hardware.
- Housing Materials:
- Warranty:
Attributes
Alternate Codes: 20K-T-KS-00-000000, 20K-TKS-00-000000, 20KTKS-00-000000, 20KTKS00000000
Category: Access Control, Hardwired, Prox Readers & Keypads (Hardwired)
