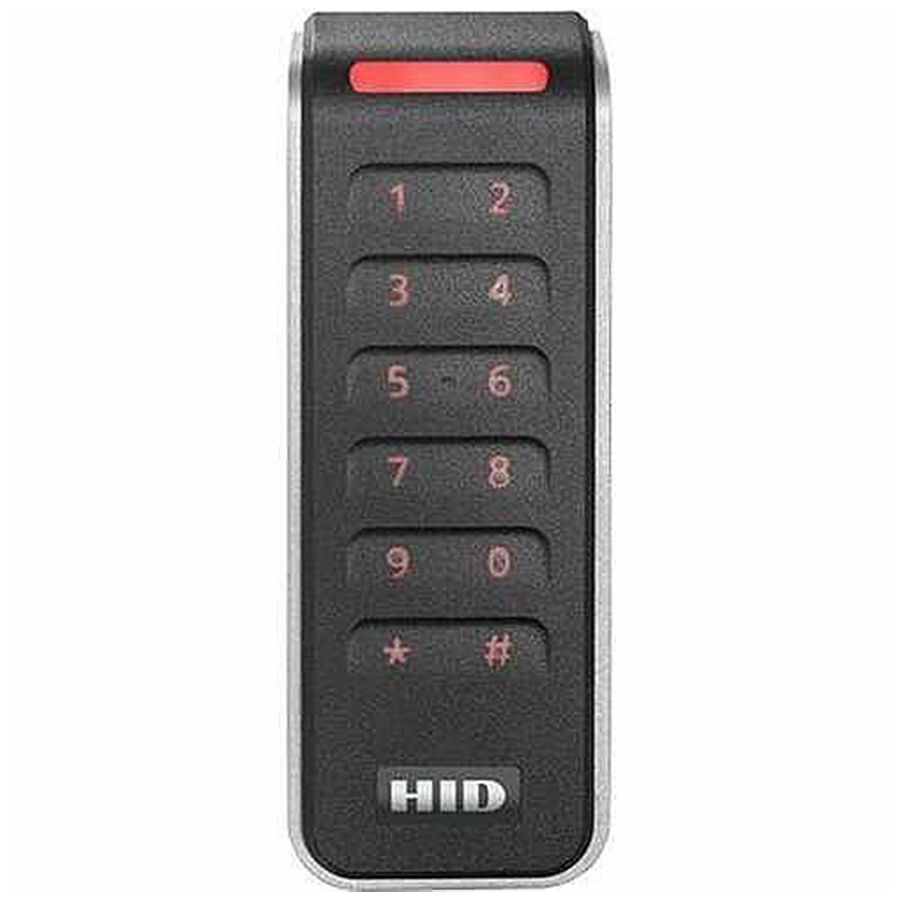

HID 20KTKS-T2-000000 Signo Narrow Style T2 Smart, Keypad Reader

HID Global Corporation 20KTKS-T2-000000 Signo Narrow Style T2 Smart Keypad Reader offers a sophisticated solution for modern access control needs. This adaptable reader supports a wide range of credential technologies, including HID Mobile Access® via Bluetooth and Near Field Communication (NFC), making it an ideal choice for businesses looking to enhance their security systems. Designed for both indoor and outdoor environments, the 20KTKS-T2 is rated IP65, ensuring robust performance under various conditions. Its sleek design seamlessly integrates into contemporary architecture, while its advanced features, such as ultra-secure storage of cryptographic keys and surface detection for optimized read range, set a new benchmark in security technology. This reader supports over 15 common credential technologies, including Seos and iCLASS, and features out-of-the-box compatibility with the Open Supervised Device Protocol (OSDP) for secure communication. Installation is straightforward, with options for flush mount or pigtail wiring, and device management is simplified with the HID Reader Manager® for remote configuration. With operating temperatures ranging from -31°F to +150°F and a limited lifetime warranty, the HID Signo T2 Keypad Reader is built to withstand the rigors of daily use while providing reliable, secure access for your premises.

Signo Narrow Style T2 Smart, Keypad Reader

HID Signo™ is the signature line of physical access control readers from HID Global. The versatility, performance and connected capabilities of HID Signo readers set a new industry benchmark for the most highly adaptable, interoperable and secure approach to electronic access control. Offering an unparalleled breadth of functionality, HID Signo affords security system installers and administrators a simple and effective approach to secure access control for almost any scenario. With support for the widest array of credential technologies — past, present and future — HID Signo is the perfect choice for those looking to make the transition to a secure authentication technology. HID Signo readers transcend the traditional approach to security by being designed to be connected and managed remotely without needing to physically touch each device. This functionality empowers access control systems to dynamically respond as new needs, configurations or threats arise.

Features:

• Highly Versatile:
• Support for the widest range of credential technologies, including HID Mobile Access® via native Bluetooth and Near Field Communication (NFC).
• Unparalleled Performance:
• Ultra secure storage of cryptographic keys on certified secure element hardware, plus a new surface detection feature that enables the reader to automatically recalibrate and optimize read range performance.
• Connected to the Future:
• All readers include out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communication.
• Mobile-ready by default, including Apple's Enhanced Contactless Polling (ECP) to support credentials in Apple Wallet.
• Sleek, innovative design to suit modern architecture.
• Integrated OSDP for secure authentication and configuration post installation.
• Built on a hardware platform designed to be adaptable to support future technology.
• Designed to seamlessly integrate into the HID Origo® ecosystem.
• Multi-Layered security to ensure data authenticity and privacy.
• EAL5+ Certified Secure Element Hardware.
• Trusted secure authentication using the SIO data model.
• Supports iCLASS Elite™ and Corporate 1000 Programs.
• Go mobile with native Bluetooth and NFC support.
• Supports over 15 common credential technologies.
• Flush mount terminal block and pigtail wiring options.
• Robust outdoor performance with an IP65 rating.
• Easily and securely managed using HID Reader Manager®.
• Configure via a mobile device or OSDP.
• Update firmware in response to threats.
• Personalize by configuring audio visual or keypad settings.
• Deactivate legacy credential technology to conclude secure migration.

Specifications:

• HID Signo Reader Model:
• 20
• 20K
• 40
• 40K
• 2.4 GHz (Bluetooth) Credential Compatibility:
• Mobile Credentials powered by Seos® (HID Mobile Access).
• 13.56 MHz (NFC) Credential Compatibility:
• Seos, iCLASS SE®, iCLASS SR®, iCLASS®, MiFare Classic, MiFare DESFire EV1/EV2, FeliCa™ & Contactless e-Purse Application Specification (CEPAS), Mobile Credentials powered by Seos (HID Mobile Access).
• Typical Read Range:
• Seos®,MiFare Classic, MiFare DESFire EV1/EV2 & ISO14443A Single Technology Cards: 1.6 to 4 in (4 to 10 cm)
• HID / AWID Proximity®, Indala Proximity®, EM Proximity: 2.4 to 4 in (6 to 10 cm)
• Mounting:
• 20, 20K: Suited for mullion-mount door installations or any flat surface mounting.
• 40, 40K: Suited to mount and cover single gang switch boxes with a slotted mounting plate for alternate back-box spacing.
• Color: Black bezel with silver trim baseplate.
• Keypad:
• 20: None
• 20K: Yes (2 x 6 layout)
• 40: None
• 40K: Yes (3 x 4 layout)
• Dimensions:
• 20: 1.77 in x 4.78 in x 0.77 in (45 mm x 121.5 mm x 19.5 mm)
• 20K: 1.78 in x 4.79 in x 0.85 in (45 mm x 121.5 mm x 21.5 mm)
• 40: 3.15 in x 4.78 in x 0.77 in (80 mm x 121.5 mm x 19.5 mm)
• 40K: 3.16 in x 4.79 in x 0.85 in (80 mm x 121.5 mm x 21.5 mm)
• Product Weight:
• 20: Pigtail: 3.35 oz (95 g), Terminal: 2.65 oz (75 g).
• 20K: Pigtail: 3.88 oz (110 g), Terminal: 3.17 oz (90 g).
• 40: Pigtail: 4.94 oz (140 g), Terminal: 4.23 oz (120 g).
• 40K: Pigtail: 5.64 oz (160 g), Terminal: 4.94 oz (140 g).
• Operating Voltage:
• 12V DC
• Current Draw:
• 20: NSC4: 60 mA, Peak: 250 mA, Max. Avg: 70 mA, IPM5: 45 mA.
• 20K: NSC4: 65 mA, Peak: 250 mA, Max. Avg: 75 mA, IPM5: 48 mA.
• 40: NSC4: 65 mA, Peak: 250 mA, Max. Avg: 75 mA, IPM5: 45 mA.
• 40K: NSC4: 70 mA, Peak: 250 mA, Max. Avg: 80 mA, IPM5: 55 mA.
• Device Input and Output:
• Input: Tri-color LED, Buzzer, Hold @ Active Low.
• Output: Tamper Relay 0-60V DC @ 100mA Max (Dry Contact).
• Operating Temperature & Humidity:
• - 31° F to + 150° F (- 35° C to + 66° C) 0% to 95% non-condensing.
• Environmental Rating:
• UL294 Outdoor and Indoor rated, IP65.
• Communications & Panel Connection:
• Wiegand, Clock-and-Data and RS-485 Half Duplex (OSDP) via Pigtail (18 in / 0.5 m) or Terminal Strip.
• Device Management:
• HID Reader Manager / OSDP configuration.
• Certifications:
• UL294/cUL (US), FCC (US), IC (Canada), CE (EU), RCM (Australia, New Zealand), SRRC (China), KCC (Korea), NCC (Taiwan), iDA (Singapore), RoHS, MIC (Japan), Green Circle, Bluetooth SIG, and additional regions.
• Security Ratings:
• EAL 5+ Certified Secure Element Hardware.
• Housing Materials:
• Polycarbonate – UL94 V0.
• Warranty:
• Limited Lifetime.
