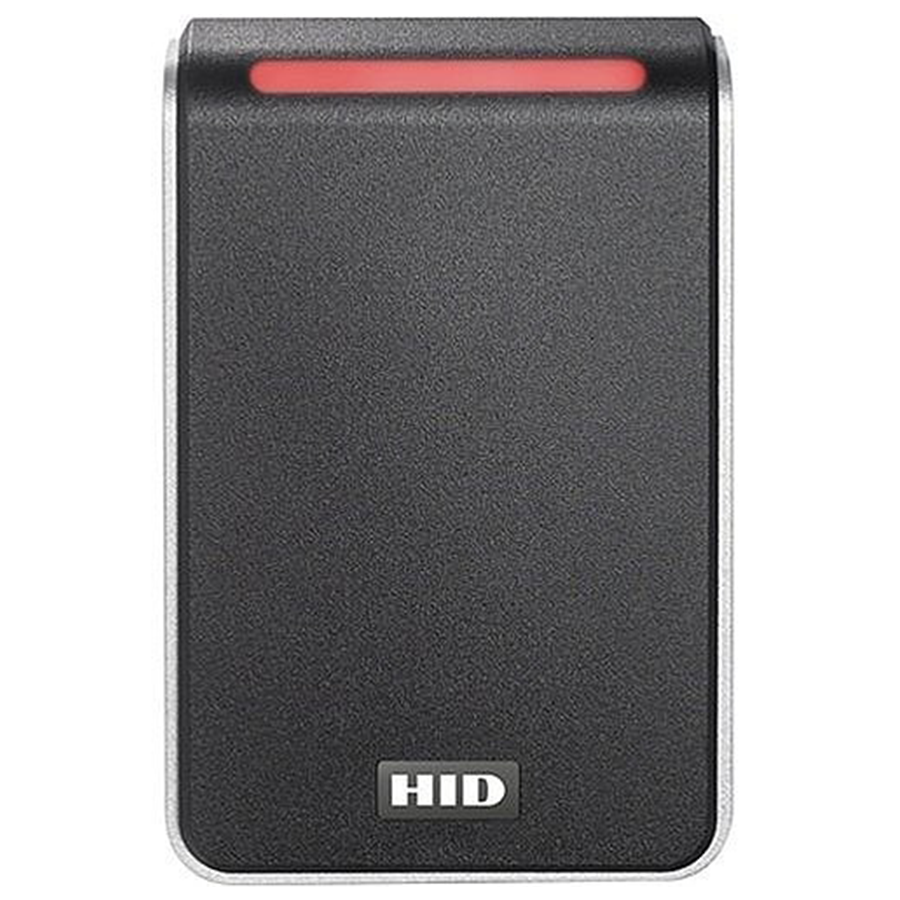

HID 40TKS-T2-000000 Signo Reader Single Gang

HID Global Corporation 40TKS-T2-000000 Signo Reader Single Gang offers a cutting-edge solution for electronic access control that combines versatility, performance, and security. Designed to meet the modern demands of access management, this reader supports a broad range of credential technologies, including HID Mobile Access® through Bluetooth and NFC. The Signo Reader stands out with its ultra-secure storage of cryptographic keys and a unique surface detection feature that optimizes its read range performance. It is equipped with Open Supervised Device Protocol (OSDP) for secure bidirectional communication, making future updates and configurations seamless. Built to integrate effortlessly into the HID Origo® ecosystem, it ensures a robust and adaptable security framework. With an IP65 rating, the 40TKS-T2 is engineered for both indoor and outdoor environments, ensuring reliable performance in various conditions. Its sleek design, available in a black bezel with a silver trim, complements modern architecture while providing multi-layered security for data authenticity and privacy. This model easily connects via pigtail or terminal strip and is compatible with over 15 credential technologies, including iCLASS and MiFare. Coupled with a limited lifetime warranty, the HID Global 40TKS-T2-000000 Signo Reader Single Gang is the ideal choice for security professionals seeking a powerful and flexible access control solution.

Signo Reader Single Gang

HID Signo™ is the signature line of physical access control readers from HID Global. The versatility, performance and connected capabilities of HID Signo readers set a new industry benchmark for the most highly adaptable, interoperable and secure approach to electronic access control. Offering an unparalleled breadth of functionality, HID Signo affords security system installers and administrators a simple and effective approach to secure access control for almost any scenario. With support for the widest array of credential technologies — past, present and future — HID Signo is the perfect choice for those looking to make the transition to a secure authentication technology. HID Signo readers transcend the traditional approach to security by being designed to be connected and managed remotely without needing to physically touch each device. This functionality empowers access control systems to dynamically respond as new needs, configurations or threats arise.

Features:

• Highly Versatile:
• Support for the widest range of credential technologies, including HID Mobile Access® via native Bluetooth and Near Field Communication (NFC).
• Unparalleled Performance:
• Ultra secure storage of cryptographic keys on certified secure element hardware, plus a new surface detection feature that enables the reader to automatically recalibrate and optimize read range performance.
• Connected to the Future:
• All readers include out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communication.
• Mobile-ready by default, including Apple's Enhanced Contactless Polling (ECP) to support credentials in Apple Wallet.
• Sleek, innovative design to suit modern architecture.
• Integrated OSDP for secure authentication and configuration post installation.
• Built on a hardware platform designed to be adaptable to support future technology.
• Designed to seamlessly integrate into the HID Origo® ecosystem.
• Multi-Layered security to ensure data authenticity and privacy.
• EAL5+ Certified Secure Element Hardware.
• Trusted secure authentication using the SIO data model.
• Supports iCLASS Elite™ and Corporate 1000 Programs.
• Go mobile with native Bluetooth and NFC support.
• Supports over 15 common credential technologies.
• Flush mount terminal block and pigtail wiring options.
• Robust outdoor performance with an IP65 rating.
• Easily and securely managed using HID Reader Manager®.
• Configure via a mobile device or OSDP.
• Update firmware in response to threats.
• Personalize by configuring audio visual or keypad settings.
• Deactivate legacy credential technology to conclude secure migration.

Specifications:

• HID Signo Reader Model:
• 20
• 20K
• 40
• 40K
• 2.4 GHz (Bluetooth) Credential Compatibility:
• Mobile Credentials powered by Seos® (HID Mobile Access).
• 13.56 MHz (NFC) Credential Compatibility:
• Seos, iCLASS SE®, iCLASS SR®, iCLASS®, MiFare Classic, MiFare DESFire EV1/EV2, FeliCa™ & Contactless e-Purse Application Specification (CEPAS), Mobile Credentials powered by Seos (HID Mobile Access).
• Typical Read Range:
• Seos®,MiFare Classic, MiFare DESFire EV1/EV2 & ISO14443A Single Technology Cards: 1.6 to 4 in (4 to 10 cm)
• HID / AWID Proximity®, Indala Proximity®, EM Proximity: 2.4 to 4 in (6 to 10 cm)
• Mounting:
• 20, 20K: Suited for mullion-mount door installations or any flat surface mounting.
• 40, 40K: Suited to mount and cover single gang switch boxes with a slotted mounting plate for alternate back-box spacing.
• Color: Black bezel with silver trim baseplate.
• Keypad:
• 20: None
• 20K: Yes (2 x 6 layout)
• 40: None
• 40K: Yes (3 x 4 layout)
• Dimensions:
• 20: 1.77 in x 4.78 in x 0.77 in (45 mm x 121.5 mm x 19.5 mm)
• 20K: 1.78 in x 4.79 in x 0.85 in (45 mm x 121.5 mm x 21.5 mm)
• 40: 3.15 in x 4.78 in x 0.77 in (80 mm x 121.5 mm x 19.5 mm)
• 40K: 3.16 in x 4.79 in x 0.85 in (80 mm x 121.5 mm x 21.5 mm)
• Product Weight:
• 20: Pigtail: 3.35 oz (95 g), Terminal: 2.65 oz (75 g).
• 20K: Pigtail: 3.88 oz (110 g), Terminal: 3.17 oz (90 g).
• 40: Pigtail: 4.94 oz (140 g), Terminal: 4.23 oz (120 g).
• 40K: Pigtail: 5.64 oz (160 g), Terminal: 4.94 oz (140 g).
• Operating Voltage:
• 12V DC
• Current Draw:
• 20: NSC4: 60 mA, Peak: 250 mA, Max. Avg: 70 mA, IPM5: 45 mA.
• 20K: NSC4: 65 mA, Peak: 250 mA, Max. Avg: 75 mA, IPM5: 48 mA.
• 40: NSC4: 65 mA, Peak: 250 mA, Max. Avg: 75 mA, IPM5: 45 mA.
• 40K: NSC4: 70 mA, Peak: 250 mA, Max. Avg: 80 mA, IPM5: 55 mA.
• Device Input and Output:
• Input: Tri-color LED, Buzzer, Hold @ Active Low.
• Output: Tamper Relay 0-60V DC @ 100mA Max (Dry Contact).
• Operating Temperature & Humidity:
• - 31° F to + 150° F (- 35° C to + 66° C) 0% to 95% non-condensing.
• Environmental Rating:
• UL294 Outdoor and Indoor rated, IP65.
• Communications & Panel Connection:
• Wiegand, Clock-and-Data and RS-485 Half Duplex (OSDP) via Pigtail (18 in / 0.5 m) or Terminal Strip.
• Device Management:
• HID Reader Manager / OSDP configuration.
• Certifications:
• UL294/cUL (US), FCC (US), IC (Canada), CE (EU), RCM (Australia, New Zealand), SRRC (China), KCC (Korea), NCC (Taiwan), iDA (Singapore), RoHS, MIC (Japan), Green Circle, Bluetooth SIG, and additional regions.
• Security Ratings:
• EAL 5+ Certified Secure Element Hardware.
• Housing Materials:
• Polycarbonate – UL94 V0.
• Warranty:
• Limited Lifetime.
