Imperial USA ED-501-DU Rim Panic is expertly designed for doors up to 36 inches wide, making it an ideal choice for both hollow metal and wood doors in heavy-duty commercial and industrial applications. This rim-type exit device features a non-handed and reversible design, ensuring compatibility with various door configurations. With a robust ANSI A156.3 Grade 1 certification, this panic device guarantees reliability and security. The ED-501-DU is UL10C fire rated, providing essential safety as a barrier in emergencies. Its user-friendly installation includes a standard strike and shim, while the capacity to be cut down to 26 inches in length offers flexibility for unique door sizes. The device suits doors with a thickness ranging from 1-3/4 to 2 inches and requires a stile width of a minimum of 3 inches. Notable specifications include a 2-1/4 inch projection, an optional alarm kit (EAK500), and the availability of an XL version for doors up to 48 inches. The Hex Dogging feature allows for ease of operation, particularly on non-UL fire-rated versions. Backed by a one-year warranty, the Imperial USA ED-501-DU Rim Panic device combines durability and functionality, making it a top choice for secure exits in high-traffic environments.

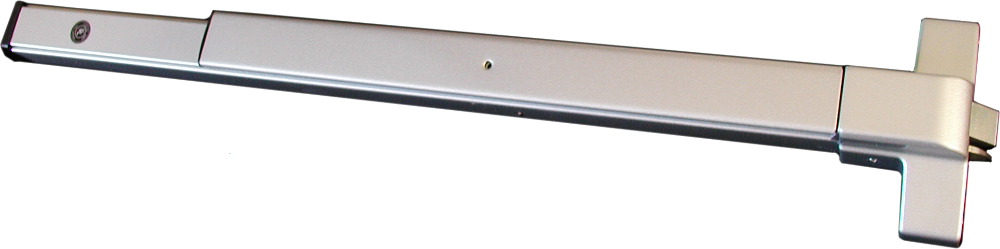

Rim Panic for Doors up to 36in, Duranodic

The 501 series "rim type" exit device is suitable for doors (hollow metal, or wood) where there is no projection on the surface. It is appropriate for heavy duty commercial and industrial applications. Fits doors 26" to 36" and XL for 48" and is non-handed and reversible.

Specifications:

• ANSI A156.3 Grade 1
• ED-F501: UL10C Fire rated; barrier
• Non-handed
• EAK500: Alarm kit
• Door width: up to 36"
• Available in XL for 48"
• Comes with standard strike and shim
• Dogging standard only on non-UL fire rated
• Warranty: 1 year
• Projection: 2-1/4"
• Door thickness: 1-3/4" up to 2"
• Stile: 3" minimum
• Plastic end cap
• Can be cut down to 26" in length

Finishes:

• AL - Aluminum
• DU - Duronotic
• US32D - Brushed stainless steel

Features

• Plastic end cap
• Can be cut down to 26" in length
• ANSI A156.3 Grade 1
• Door width: up to 36"
• Stile: 3" minimum
• EAK500: Alarm kit
• Warranty: 1 year
• Non-handed
• ED-F501: UL10C Fire rated; barrier
• Projection: 2-1/4"
• Dogging standard only on non-UL fire rated
• Available in XL for 48"
• Comes with standard strike and shim
• Door thickness: 1-3/4" up to 2"

Resources

• Cut Sheet
