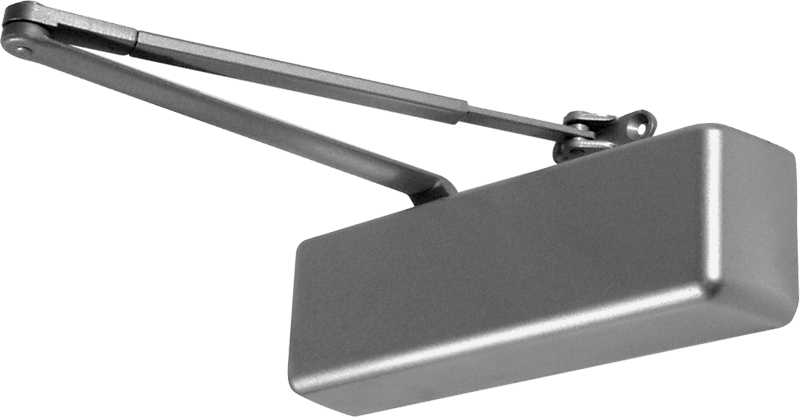

Imperial TC4300-DU ADA Door Closer

Imperial USA TC4300-DU ADA Door Closer is a robust solution designed for high-traffic environments, ensuring both functionality and compliance with ADA standards. This heavy-duty, grade 1 certified door closer features a cast iron construction, providing exceptional durability for institutional applications. With adjustable spring tension accommodating sizes 1-6, it can efficiently handle doors weighing up to 300 lbs. This door closer allows for precise control over closing speeds, thanks to its three independent regulating valves for sweep, latch, and backcheck speeds. The non-handed design ensures versatility, making it suitable for both left and right-hand doors. Installation is straightforward with the inclusion of both wood and machine screws, and the tri-packed mounting options offer flexibility for various door types, including aluminum and glass storefront doors. Available in two attractive finishes-Duronodic and Aluminum-the TC4300-DU not only performs exceptionally but also complements a variety of architectural styles. Backed by a 5-year mechanical warranty, this door closer is UL listed (R7483) and meets ANSI BHMA A156.4 performance standards, making it a reliable choice for professionals seeking quality and assurance in their security hardware solutions.

ADA Door Closer

The TC4300 series heavy duty door closers are grade 1 certified. This series is also fully compliant with opening force requirements for ADA standards. It has a wide collection of options and installation accessories to accommodate the requirements specified in any industrial or institutional application. This closer is recommended for use on all glass and aluminum store front doors. Moreover, the spring tension is adjustable and comes in sizes 1-6. Items are available in two finishes : Aluminum and Duronodic. They carry a 5 year mechanical warranty to be the guarantee for our clients.

Features:

• Heavy-duty, cast iron construction with adjustable spring tension
• Adjustable control sweep, latch closing and backcheck speeds
• Meets the performance standards of grade 1, ANSI BHMA A156.4
• Recommended for institutional and other high traffic demanding applications
• Cast iron body with hardened steel rack & pinion
• Comes non-handed/reversible therefore it can be installed on a left hand or a right hand door
• Supplied with both wood and machine screws
• Fits with doors weighing up to 300 lbs.
• Tri-packed - regular pull side, top jamb, parallel arm
• Includes three independent regulating valves - control sweep, latch closing speeds and backcheck
• Adjustable backcheck speed
• Includes a cover
• CTC Hole Pattern: 2-1/4 in. x 3-1/1 in.
• UL listed R7483
• ADA compliant
• 5 year mechanical warranty

Finishes:

• DU - Duronodic
• AL - Aluminum
