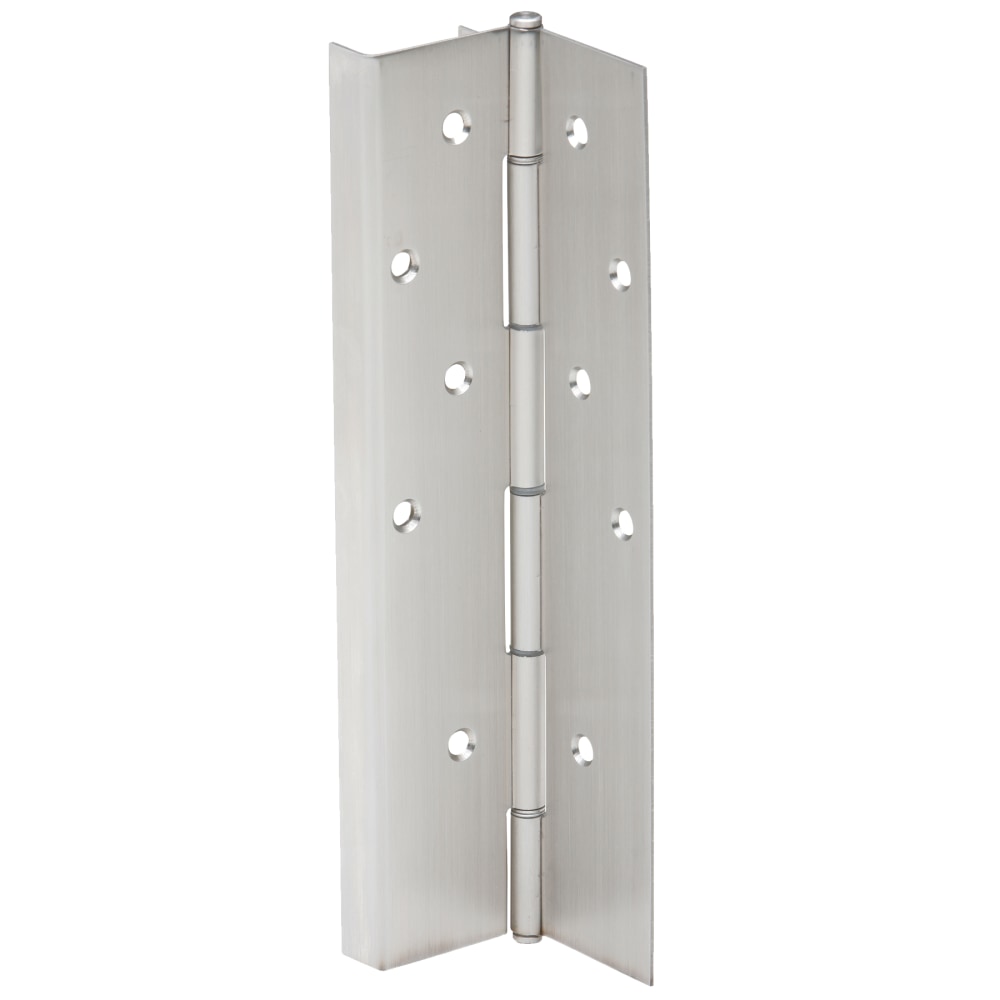

Ives 705 95 US32D Pin Barrel Continuous Hinge offers a robust and reliable solution for commercial door applications. Designed for full mortise installation, this continuous hinge spans an impressive 95 inches, ensuring maximum support and durability for high-traffic entryways. Crafted from high-quality stainless steel, it features a sleek satin finish (630/US32D) that not only enhances its aesthetic appeal but also provides excellent resistance to corrosion and wear. This hinge incorporates a pin-in-barrel bearing type, which allows for smooth and consistent door operation, reducing wear over time. Its non-handed design simplifies installation, making it ideal for a variety of door orientations. The standard weight and self-reaming, self-tapping screws included facilitate easy and secure mounting. Compliant with ANSI A156.26 standards and UL10C listed, the Ives 705 hinge meets stringent safety and performance criteria. Furthermore, it is backed by a lifetime limited warranty, underscoring its quality and reliability. Whether you’re outfitting a new building or upgrading existing hardware, this continuous hinge serves as an essential component for ensuring the long-term functionality of your doors.
Pin Barrel Continuous Hinge
Pin and Barrel Continuous Hinge, Full Mortise, Full Wrap, No Inset, 95", Satin Stainless Steel, Non-Handed
Standard pin material are: Brass Hinge – Steel Pin, Stainless Steel Hinge – Stainless Steel Pin, Steel Hinge – Steel Pin
Ansi: A156.26
Base Material: Stainless Steel
Bearing Type: Pin in Barrel
Commercial Residential: Commercial
Finish: 630/US32D
Finish Family: Matte Silver
Grade: Grade 1
Height: 95"
Hinge Type: Continuous Hinge, Full Mortise
Installation: Commercial
Limited Warranty: Lifetime
Pack Qty: 1
Screw: Self Reaming and Tapping
Series: Ives Hinges
Subtype: Continuous Hinges
Tip Style: Standard
Type: Hinges and Pivots
Ul Listing: UL10C
Unit of Measure: Each
Weight: Standard Weight
