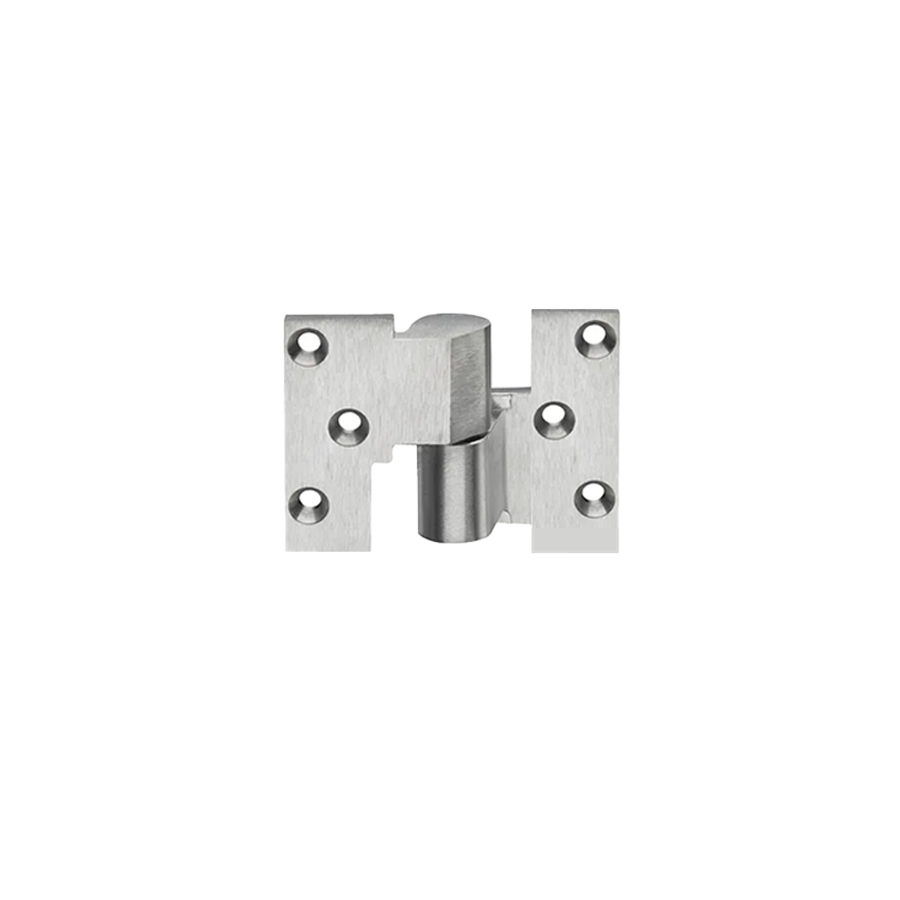

Ives 7212INT US26D RH 3/4in Offset Intermediate Pivot RH, 1-9/16in High, Satin Chrome 626/US26D

Ives 7212INT US26D RH 3/4in Offset Intermediate Pivot RH Right Hand is expertly designed to provide robust support for doors exceeding 7 feet in height. Constructed with high-quality cast brass and finished in elegant satin chrome, this pivot hinge combines durability with style, making it an ideal choice for both residential and commercial applications. With a load rating of 200 lbs, the 7212INT is recommended for door thicknesses of at least 1-3/4 inches, accommodating a 1/8-inch bevel on 2-inch doors. The positive locking vertical adjustment mechanism ensures precise positioning and balance, allowing for smooth operation with precision bearings. It is essential to use an additional pivot for every 100 pounds over the pivot set limit, ensuring optimal performance and longevity. This intermediate pivot is compatible with other Ives models, including the 7212, 7212V, and 7222 offset pivots, making it a versatile addition to your hardware toolkit. Certified to meet ANSI/BHMA A156.4 C07382 and UL10C listings (3 hour), the Ives 7212INT not only offers reliability but also peace of mind in safety standards. Choose this pivot for a seamless blend of functionality and aesthetic appeal.

3/4in Offset Intermediate Pivot RH Right Hand, 1-9/16in High, 626/US26D Satin Chrome

Ives offers a complete line of 3/4" offset, 1-1/2" offset, center hung, intermediate, pocket and power transfer pivots with all exposed parts made of brass or stainless steel for maximum corrosion resistance. The offerings include high strength brass and stainless steel forgings, as well as castings for fire-rated and non-rated doors, combined with precision bearings for smooth operation. The positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load.

Features:

• Use for door heights over 7'0" and one every 2'6" as needed.
• This intermediate pivot is used with 7212, 7212V, and 7222 offset pivots
• Use for door weight over the pivot set limit. Use one additional pivot for every additional 100 pounds.
• Recommended for use with 1 3⁄4" minimum door thickness, with 1⁄8" bevel in 2"
• Handed LH or RH
• Certifications:
• Meets ANSI/BHMA A156.4 C07382
• UL10C Listed (3 hour)
• Material Substrate: Made from cast brass

Finishes:

• 605/US3 - Bright Brass
• 606/US4 - Satin Brass
• 612/US10 - Satin Bronze
• 613/US10B - Oil Rubbed Bronze
• 619/US15 - Satin Nickel
• 622/BLK - Matte Black
• 625/US26 - Bright Chrome
• 626/US26D - Satin Chrome
• 643e/716 - Aged Bronze
• 689/SP28 - Aluminum Painted
• 691/SP10 - Bronze Painted
• 695/SP313/US10BE - Dark Bronze Painted
• 706/SP4 - Brass Painted
