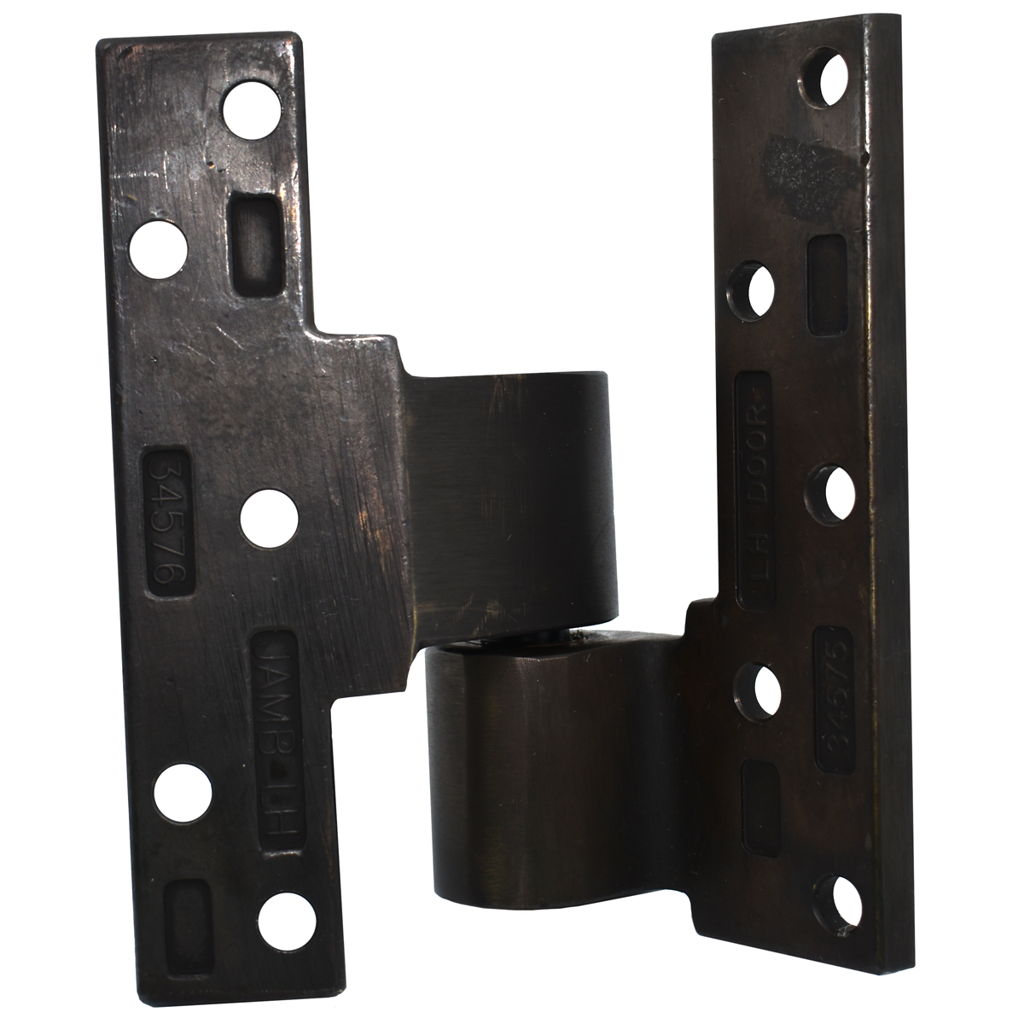

Ives 7215INT-US10B LH KIT is a robust 3/4-inch offset intermediate pivot designed specifically for left-hand doors. Measuring 5 inches high and finished in an elegant oil-rubbed bronze (613/US10B), this pivot ensures both functionality and aesthetic appeal. Engineered to meet the rigorous demands of NFPA 80, Section 3-3.8, it is essential for certain fire door applications, making it a critical component for safety compliance. The Ives 7215INT pivot is suitable for doors taller than 7 feet, with an installation recommendation of one pivot for every 2 feet, plus an additional pivot for every 100 pounds over the pivot set limit. Crafted from durable cast brass, this pivot provides excellent corrosion resistance, ensuring longevity even in high-traffic environments. Its precision bearings facilitate smooth door operation, while the positive locking vertical adjustment mechanism allows for precise door positioning and load balancing. This model is compatible with Ives 7215, 7226, and 7227 offset pivots, as well as their fire-rated counterparts. With ANSI/BHMA A156.4 C07321 and UL10C Listed (20 min) certifications, the Ives 7215INT-US10B LH KIT is a reliable choice for building professionals and discerning homeowners seeking quality and security in their door hardware.
KIT - 3/4in Offset Intermediate Pivot LH Left Hand, 5in High, 613/US10B Oil Rubbed Bronze
Ives offers a complete line of 3/4" offset, 1-1/2" offset, center hung, intermediate, pocket and power transfer pivots with all exposed parts made of brass or stainless steel for maximum corrosion resistance. The offerings include high strength brass and stainless steel forgings, as well as castings for fire-rated and non-rated doors, combined with precision bearings for smooth operation. The positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load.
Features:
Finishes:
Alternate Codes: 7215INTLH US10B, 7215INT-US10B LH, 7215INTUS10BLH, IVE7215INTLH US10B
Category: Hinges, Pivots
