Ives 7215INT-US10B RH KIT features a 3/4-inch offset design, ideal for right-hand applications. Standing at 5 inches high and finished in a rich oil-rubbed bronze (613/US10B), this pivot is engineered for durability and reliability. It is constructed from high-quality cast brass, ensuring maximum corrosion resistance while maintaining aesthetic appeal. This intermediate pivot is essential for fire door applications, adhering to NFPA 80, Section 3-3.8 regulations. It is recommended for door heights exceeding 7 feet and should be installed one pivot every 2 feet as needed. The 7215INT model pairs perfectly with the 7215, 7226, and 7227 offset pivots, providing a seamless installation experience. For fire-rated doors, use the 7215F, 7226F, or 7227F versions. The innovative positive locking vertical adjustment mechanism allows for precise door positioning and balance, accommodating door weights above the pivot set limit. With a minimum door thickness requirement of 1 3/4 inches and a 1/8-inch bevel on 2-inch doors, this product is versatile for various applications. Certifying to ANSI/BHMA A156.4 C07321 and UL10C Listed (20 min), the Ives 7215INT-US10B RH KIT guarantees safety and performance in any environment.

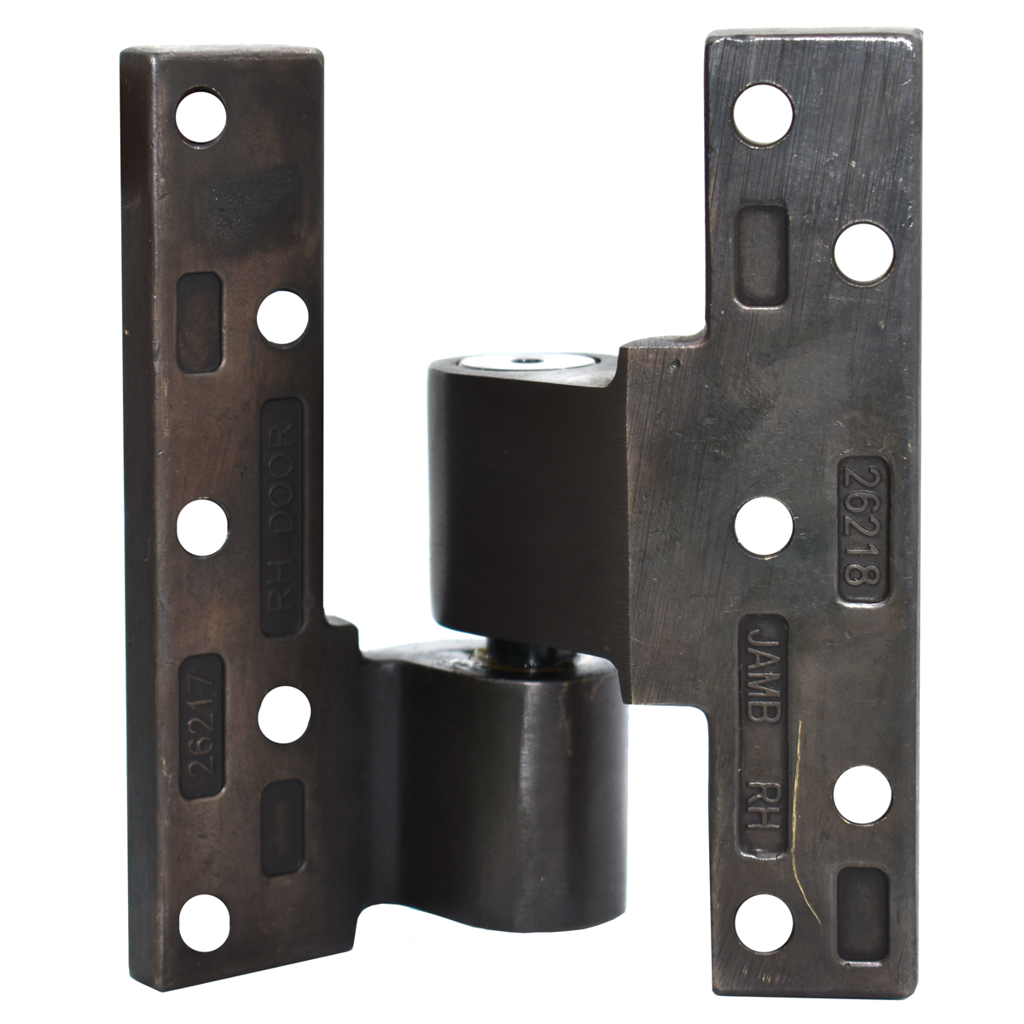

KIT - 3/4in Offset Intermediate Pivot RH Right Hand, 5in High, 613/US10B Oil Rubbed Bronze
Ives offers a complete line of 3/4" offset, 1-1/2" offset, center hung, intermediate, pocket and power transfer pivots with all exposed parts made of brass or stainless steel for maximum corrosion resistance. The offerings include high strength brass and stainless steel forgings, as well as castings for fire-rated and non-rated doors, combined with precision bearings for smooth operation. The positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load.
Features:
Finishes:
Alternate Codes: 7215INT US10B RH, 7215INTUS10BRH
Category: Hinges, Pivots
