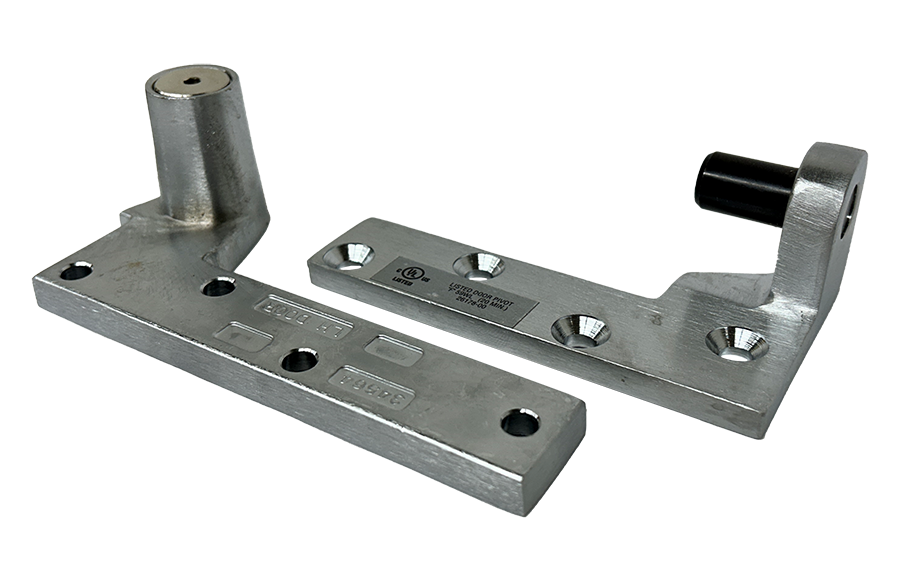

Ives 7215SET US26D RH 3/4in Offset Pivot Set RH, Top Bottom Jamb Mount, Satin Chrome 626/US26D

Ives 7215SET US26D RH 3/4in Offset Pivot Set RH Right Hand offers a robust solution for your door pivot needs, designed for both fire-rated and non-rated doors. This pivot set is engineered to support a maximum door load of 500 pounds, making it ideal for heavy-duty applications. With a 3/4" offset, it accommodates doors with a minimum thickness of 1-3/4", ensuring compatibility with various installations. The Ives 7215SET features a top header mount and a jamb mount, providing versatile installation options. Its precision bearings ensure smooth operation, while the positive locking vertical adjustment mechanism allows for a 3/16" adjustment range, enabling installers to achieve precise positioning and balanced load distribution. Constructed from durable cast brass with a satin chrome finish, this pivot set is designed for maximum corrosion resistance, ensuring longevity and aesthetic appeal. It meets ANSI/BHMA A156.4 C07131 standards and is UL 10C Listed for 20 minutes, further enhancing its reliability in critical applications. Available in a range of finishes, including bright brass and satin nickel, the Ives 7215SET is both functional and stylish, making it a preferred choice for building professionals and knowledgeable homeowners alike.

3/4in Offset Pivot Set RH Right Hand, Top and Bottom Jamb Mount, 626/US26D Satin Chrome

Ives offers a complete line of 3/4" offset, 1-1/2" offset, center hung, intermediate, pocket and power transfer pivots with all exposed parts made of brass or stainless steel for maximum corrosion resistance. The offerings include high strength brass and stainless steel forgings, as well as castings for fire-rated and non-rated doors, combined with precision bearings for smooth operation. The positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load.

Features:

• 3/4" Offset pivot, 500lb with top header mount (fire and non-fire rated models)
• Maximum door load 500 pounds
• Recommended for use with 1 3⁄4" minimum door thickness, with 1⁄8" bevel in 2"
• Vertical adjustment range 3⁄16", with positive locking
• Handed LH or RH
• 7215 Set (7215 Top and 7215 Btm)
• 7215 Top (7212-7215-7222-7226-7227 Top), header mount
• 7215 Btm (7215 Btm), jamb mount
• Certifications:
• Meets ANSI/BHMA A156.4 C07131
• 7215 - UL 10C Listed (20 min)
• Material Substrate: Made from cast brass

Finishes:

• 605/US3 - Bright Brass
• 606/US4 - Satin Brass
• 612/US10 - Satin Bronze
• 613/US10B - Oil Rubbed Bronze
• 619/US15 - Satin Nickel
• 622/BLK - Matte Black
• 625/US26 - Bright Chrome
• 626/US26D - Satin Chrome
• 643e/716 - Aged Bronze
• 689/SP28 - Aluminum Painted
• 691/SP10 - Bronze Painted
• 695/SP313/US10BE - Dark Bronze Painted
• 706/SP4 - Brass Painted
