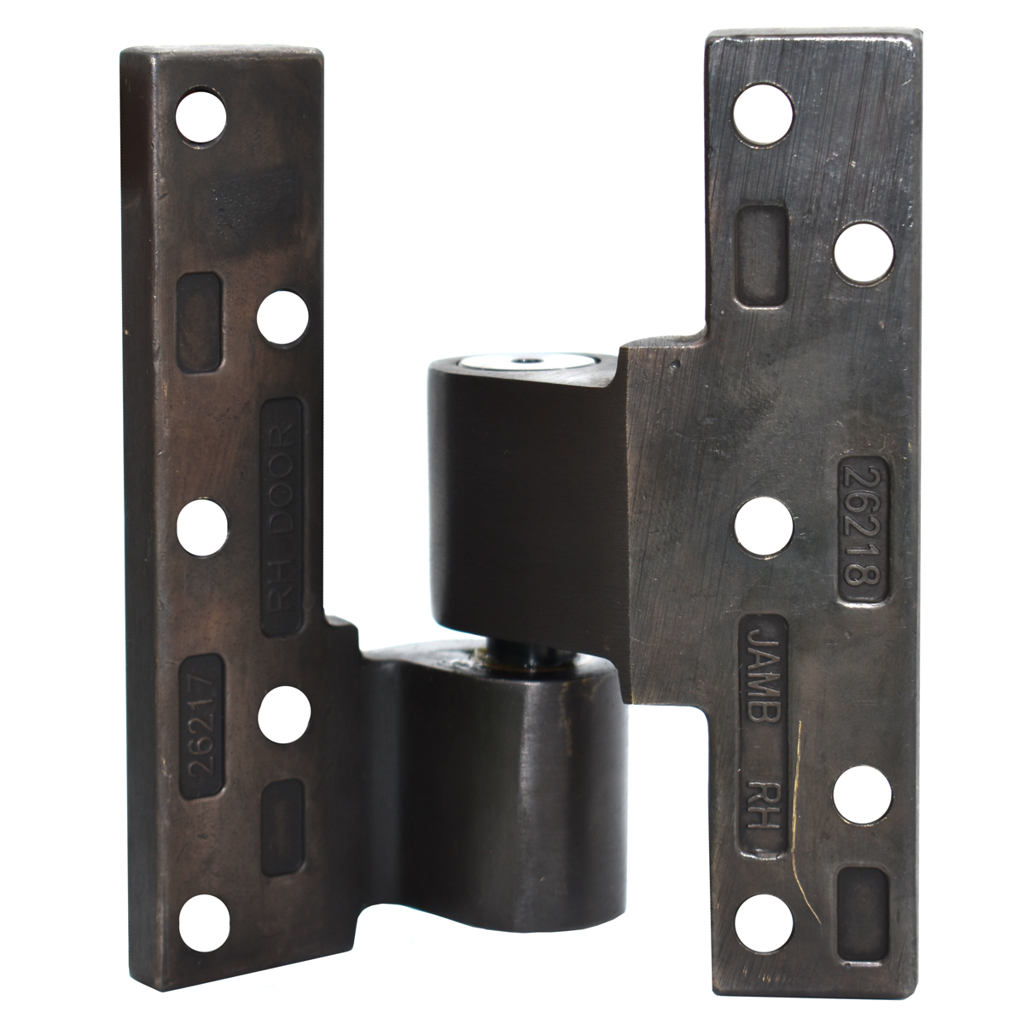

Ives 7226INT US10B RH 3/4in Offset Intermediate Pivot RH, 5in High, Oil Rubbed Bronze

Ives 7226INT US10B RH 3/4in Offset Intermediate Pivot RH Right Hand is engineered for reliability and performance in demanding door applications. This high-quality pivot, crafted from durable cast brass, is designed for doors exceeding 7 feet in height and provides essential support for heavier doors. The 3/4" offset configuration is compliant with NFPA 80, ensuring it meets safety standards for fire-rated and non-rated doors. With a height of 5 inches, this pivot is ideal for use in conjunction with Ives 7215, 7226, and 7227 offset pivots, allowing for seamless integration into your door system. The positive locking vertical adjustment mechanism enables precise positioning and load balancing, making installation straightforward and efficient. The 7226INT is available in an elegant Oil Rubbed Bronze finish, enhancing both aesthetics and durability. It’s suitable for door thicknesses of 1-3/4" with a 1/8" bevel, and its handed design caters specifically to right-hand installations. This pivot meets ANSI/BHMA A156.4 C07321 standards and is UL10C Listed for 20-minute fire-rated applications, making it a dependable choice for both residential and commercial settings. Choose the Ives 7226INT for superior performance and peace of mind in your door hardware needs.

3/4in Offset Intermediate Pivot RH Right Hand, 5in High, 613/US10B Oil Rubbed Bronze

Ives offers a complete line of 3/4" offset, 1-1/2" offset, center hung, intermediate, pocket and power transfer pivots with all exposed parts made of brass or stainless steel for maximum corrosion resistance. The offerings include high strength brass and stainless steel forgings, as well as castings for fire-rated and non-rated doors, combined with precision bearings for smooth operation. The positive locking vertical adjustment mechanism allows the installer to precisely position the door and balance the load.

Features:

• 3/4" Offset intermediate pivot (fire and non-fire rated models)
• NFPA 80, Section 3-3.8 requires intermediate pivot on some fire door applications
• Use for door heights over 7'0" and one every 2'6" as needed.
• 7215-7226-7227 intermediate pivot is used with 7215, 7226, and 7227 offset pivots
• Use for door weight over the pivot set limit. Use one additional pivot for every additional 100 pounds
• Recommended for use with 1 3⁄4" minimum door thickness, with 1⁄8" bevel in 2"
• Handed LH or RH
• Certifications:
• Meets ANSI/BHMA A156.4 C07321
• UL10C Listed (20 min)
• Material Substrate: Made from cast brass

Finishes:

• 605/US3 - Bright Brass
• 606/US4 - Satin Brass
• 612/US10 - Satin Bronze
• 613/US10B - Oil Rubbed Bronze
• 619/US15 - Satin Nickel
• 622/BLK - Matte Black
• 625/US26 - Bright Chrome
• 626/US26D - Satin Chrome
• 643e/716 - Aged Bronze
• 689/SP28 - Aluminum Painted
• 691/SP10 - Bronze Painted
• 695/SP313/US10BE - Dark Bronze Painted
• 706/SP4 - Brass Painted
