Ives 8302-0 4X16 US32D Pull Plate combines functionality with a sleek design, making it an ideal choice for both commercial and residential applications. Crafted from high-quality satin stainless steel (630/US32D), this pull plate measures 4 inches by 16 inches, ensuring durability and a modern aesthetic that complements any door setting. Designed with a 10-inch center-to-center spacing and a 3/4-inch diameter round pull, the Ives 8302-0 facilitates easy access while withstanding frequent use. Its heavy-duty mounting hardware exceeds industry standards, providing a secure installation that supports door thicknesses ranging from 1 1/2 inches to 1 3/4 inches, with optional packages available for thicker doors. The pull plate comes standard with through bolt screws and decorative washers, enhancing its visual appeal. Additionally, the Ives 8302-0 meets ANSI/BHMA A156.06 certification, ensuring it adheres to rigorous quality standards. Available in a variety of finishes, this pull plate can be customized to match existing door hardware seamlessly. Whether you're upgrading your home or outfitting a commercial space, the Ives 8302-0 4X16 US32D Pull Plate is a reliable choice that combines style, strength, and versatility.

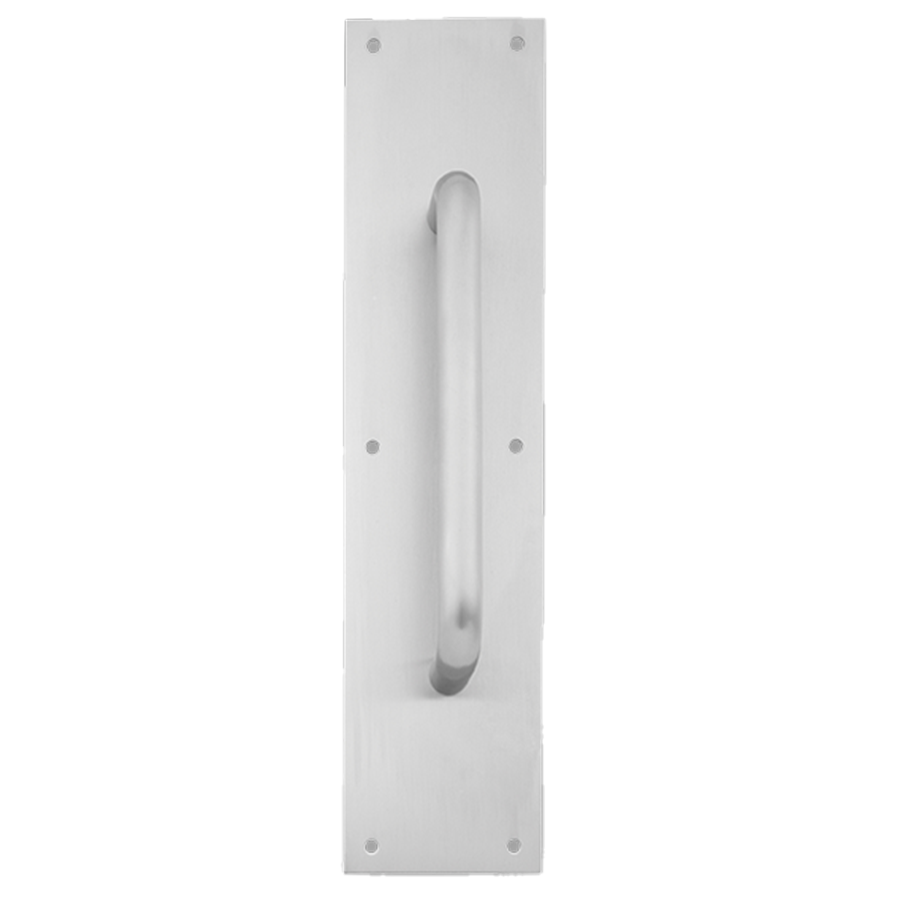

Pull Plate 4in x 16in, 10in CTC, 3/4in Diameter Round Pull, 630/US32D Satin Stainless Steel

Ives offers a wide selection of push and pull plates that coordinate with Ives door pulls. There are several mounting packages, center-to-center spacing and cylinder or cutout options specific to any door and pull. Featuring more than 10 finishes, the plates can suite with the surrounding door hardware of any door opening.

Specifications:

• Material Substrate: Made from aluminum, brass or stainless steel (300 Series)
• Mounting Hardware:
• Heavy duty mounting hardware exceeds industry standards
• 5⁄16-18 mounting hardware
• Specify door thickness:
• Standard mounting hardware for door thickness of 1 1⁄2" to 1 3⁄4" unless otherwise specified
• Optional package available for 2" and 2 1⁄4" thick doors
• Comes standard with through bolt screws and decorative washers.
• Optional mounting hardware available (see general information section for details) F, G, I, J, L
• Mounting hardware for other door thicknesses are available as engineering special
• Standard mounting package: #6 x 5⁄8 Oval head screws
• Optional TEK/TORX package: #6 x 5⁄8 Self-drilling, self-tapping screws. #6 x 5⁄8 5⁄8 Torx screws
• Widths and heights:
• 3 1⁄2" x 15"
• 4" x 16"
• 6" x 16"
• Pull center to center spacing:
• 6"
• 8"
• 10"
• Certifications:
• Meets ANSI/BHMA A156.06

Finishes:

• 605/US3 - Bright Brass
• 606/US4 - Satin Brass
• 612/US10 - Satin Bronze
• 613/US10B - Oil Rubbed Bronze
• 619/US15 - Satin Nickel
• 625/US26 - Bright Chrome
• 626/US26D - Satin Chrome
• 626-AM/US26D-AM - Satin Chrome Antimicrobial
• 628/US28 - Satin Aluminum, Clear Anodized
• 630/US32D - Satin Stainless
• 630-AM/US32D-AM - Satin Stainless Antimicrobial
• 631/BLK - Matte Black
• 643e/716 - Aged Bronze
• 695/SP313/US10BE - Dark Bronze Powder Coat

Features

• Optional mounting hardware available (see general information section for details) F, G, I, J, L
• Specify door thickness:
• Meets ANSI/BHMA A156.06
• 10"
• Certifications:
• Optional package available for 2" and 2 1⁄4" thick doors
• 8"
• Widths and heights:
• Optional TEK/TORX package: #6 x 5⁄8 Self-drilling, self-tapping screws. #6 x 5⁄8 5⁄8 Torx screws
• 3 1⁄2" x 15"
• 6"
• 5⁄16-18 mounting hardware
• Comes standard with through bolt screws and decorative washers.
• Mounting Hardware:
• Heavy duty mounting hardware exceeds industry standards
• Standard mounting hardware for door thickness of 1 1⁄2" to 1 3⁄4" unless otherwise specified
• Standard mounting package: #6 x 5⁄8 Oval head screws
• 4" x 16"
• Material Substrate: Made from aluminum, brass or stainless steel (300 Series)
• Pull center to center spacing:
• 6" x 16"
• Mounting hardware for other door thicknesses are available as engineering special
