Ives 9100HD-33-STD-630 Push Bar offers a robust and reliable solution for high-traffic environments, combining functionality with a sleek design. Crafted from durable satin stainless steel (630/US32D), this push bar measures 1 inch in diameter and features a 2-1/2-inch projection, making it ideal for various applications, including commercial and residential settings. This push bar meets ANSI A156.06 standards and comes equipped with heavy-duty 3/8-16 mounting hardware, ensuring secure installation on doors with a thickness of 1-1/2 inches to 1-3/4 inches. The standard package includes through-bolt screws and decorative washers, enhancing the bar's aesthetic appeal. Additionally, the product is available in standard lengths of 28 inches and 33 inches, with custom lengths available in whole 1-inch increments from 25 to 45 inches. Designed for both hollow metal and wood doors, the Ives 9100HD-33-STD-630 offers versatile mounting options to suit your specific needs. Its robust construction exceeds industry standards for durability and corrosion resistance, making it suitable for external applications. Elevate your door hardware with this stylish and functional push bar, ensuring ease of access while maintaining a professional appearance.

Push Bar STD 1in Round 2-1/2in Projection, 630/US32D Satin Stainless Steel

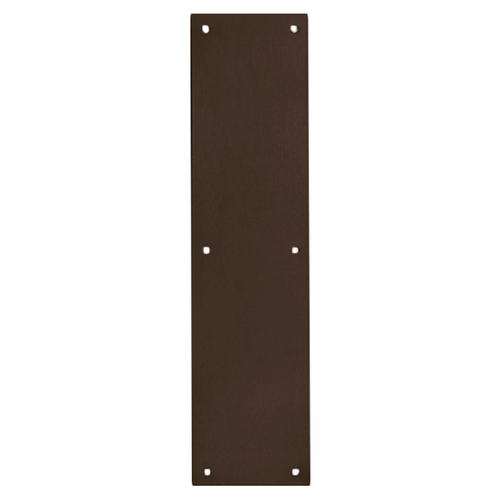

Ives offers a wide selection of push and pull plates that coordinate with Ives door pulls. There are several mounting packages, center-to-center spacing and cylinder or cutout options specific to any door and pull. Featuring more than 10 finishes, the plates can suite with the surrounding door hardware of any door opening.

Features:

• Meets ANSI A156.06
• Heavy duty mounting hardware exceeds industry standards
• 3/8-16 mounting hardware
• Standard mounting hardware for door thickness of 1-1/2" to 1-3/4"
• Comes standard with thru-bolt screws and decorative washers.
• Material size: 1" round
• Projection: 2-1/2"
• Clearance: 1-1/2"
• Caution: The length of push bar should not interfere with the door jamb or cause a pinch point

Specifications:

• Available Sizes:
• Available in standard lengths of 28" and 33"
• Also available in whole 1" increments from 25" to 45"
• Material Substrate:
• Made from solid aluminum (6061-T6 alloy), brass, or stainless steel (304 or 316 series)
• 316 Series stainless steel standard, exceeding industry standards for corrosion resistance
• Recommended for external applications
• Mounting Hardware:
• Heavy duty mounting hardware exceeds industry standards
• 3⁄8-16 mounting hardware
• Specify door thickness: Standard mounting hardware for door thickness of 1-1⁄2" to 1-3⁄4" unless otherwise specified. Optional package available for 2" and 2-1⁄4" thick doors
• Comes standard with type NS mounting
• Optional mounting hardware available A, F, I, L, N, NO, STD, O, P, PQ, Q, X
• Mounting hardware for other door thicknesses are available as engineering special

Through Bolt Mounts:

• STD Mount - Standard Mount:
• Through bolt mount with countersunk washers
• Hollow metal and wood door applications
• (2) 3⁄8-16 x 2-1⁄4" brass, flathead mounting screws, plated to match
• (2) 3⁄8-16 Countersunk washers, plated to match
• F Mount - Countersunk Holes:
• Used with countersunk holes in doors
• Wood door applications
• (2) 2-1⁄4" steel flathead mounting screws, plated to match
• O Mount - Decorative:
• Decorative through bolt mount
• Hollow metal and wood door applications
• (2) 3⁄8-16 x 2-1⁄4" Decorative mounting bolts - machine screw, plated to match
• Q Mount - Decorative, Glass Doors:
• Decorative through bolt mount
• Glass door applications
• (2) Decorative mounting bolts - machine screw, plated to match
• (2) Metal and vinyl washers
• X Mount - Security:
• Security through bolt mount with countersunk washers
• Hollow metal and wood door applications
• (2) Flathead security pin in socket mounting screws, plated to match
• (2) Countersunk washers, plated to match

Concealed Mounts:

• A Mount - Aluminum Doors:
• Concealed mount
• Aluminum door applications
• (2) Mounting bolts - machine screw
• (2) Set screws
• Designed to be used with rivet nuts (not supplied)
• G Mount - Pull Plate:
• Concealed mount with pull plate
• Hollow metal and wood door applications
• Pull mounts directly onto plate; plate is attached to door
• (2) 3⁄8 - 16 x 5⁄8" steel flathead mounting screws
• I Mount - Wood Doors:
• Concealed mount
• Wood door applications
• (2) Mounting bolts - wood screw
• (2) Set screws
• L Mount - Hollow Metal Doors:
• Concealed mount
• Hollow metal door applications
• (2) Mounting bolts - machine screw
• (2) Set screws

Back to Back Pull Mounts:

• J Mount - 8102 Pull Only:
• Back to back mounting - 5/16-18 hardware
• Hollow metal and wood door applications
• (2) Mounting bolts - machine screw
• (2) Set screws
• K Mount - 8121 Pull Only:
• Back to back mounting - 8-32 hardware
• Hollow metal and wood door applications
• (8) Machine screws
• (4) Mounting sleeves
• N Mount:
• Back to back mounting - 3/8-16 hardware
• Hollow metal and wood door applications
• (2) Mounting bolts - machine screw
• (2) Set screws
• P Mount - Glass doors:
• Back to back mounting - 3/8-16 hardware
• Glass door applications
• (2) Mounting bolts - machine screw
• (2) Set screws
• (2) Metal and vinyl washers

Finishes:

• 605/US3 - Bright brass
• 606/US4 - Satin brass
• 612/US10 - Satin bronze
• 613/US10B - Oil rubbed bronze
• 619/US15 - Satin nickel
• 625/US26 - Bright chrome
• 626/US26D - Satin chrome
• 626-AM/US26D-AM - Satin chrome antimicrobial
• 628/US28 - Satin aluminum, clear anodized
• 629/US32 - Bright stainless steel
• 630/US32D - Satin stainless
• 631/BLK - Matte black
• 643e/716 - Aged bronze
• 695/SP313/US10BE - Dark bronze powder coat
