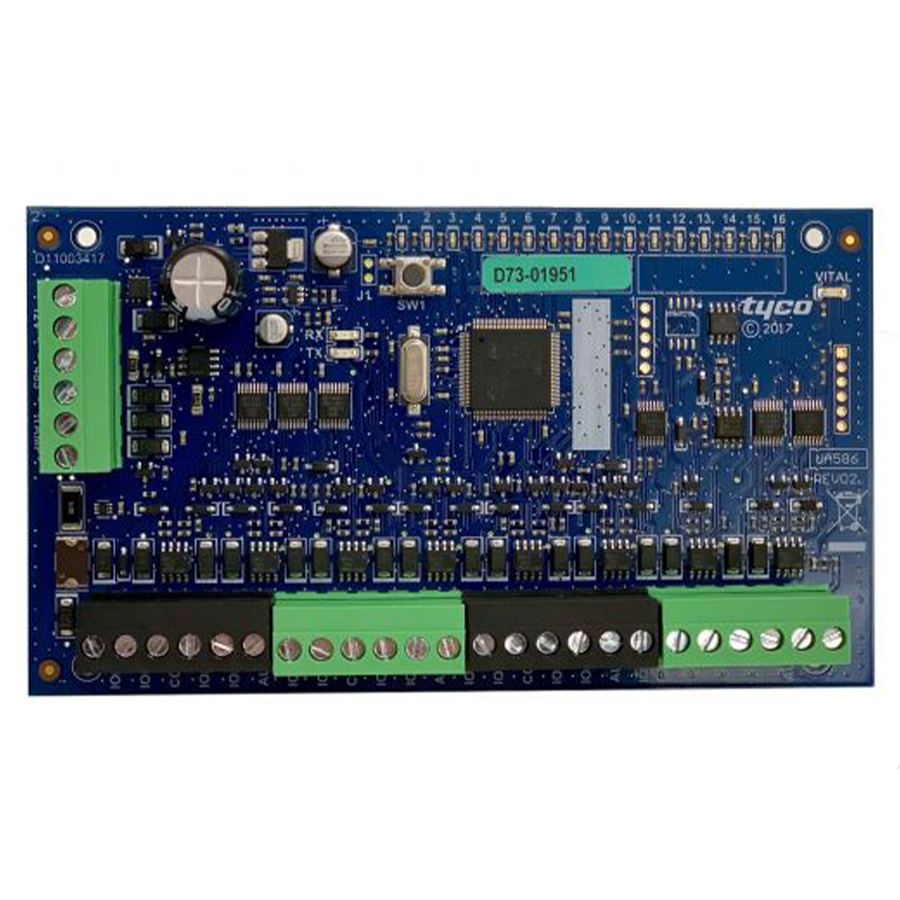

Kantech KT-MOD-IO-16 16 Point I/O Board

Kantech KT-MOD-IO-16 16 Point I/O Board offers a robust solution for expanding the input and output capabilities of KT-1 and KT-400 door controllers. This versatile module allows for a total of 256 supervised inputs and outputs per controller, making it an economical choice for enhancing system functionality. With 16 terminals that can be configured in lots of four, the IO16 module simplifies installation and reduces the complexity of wiring. Designed for a range of applications, including alarm monitoring and elevator control, the KT-MOD-IO-16 features 16 open collector outputs that can interface with elevator controls, accommodating up to 64 floors. Additionally, each module includes a dedicated tamper input for added security and 16 LED indicators that provide real-time visual status, facilitating quick diagnostics and troubleshooting. The compact, modular design requires minimal panel space, ensuring it seamlessly integrates into existing systems. Fully compatible with EntraPass security management software (version 8.10 and higher), this I/O board enhances the operational capacity of your security setup while maintaining ease of use. Choose the Kantech KT-MOD-IO-16 for a reliable and efficient expansion of your access control system.

16 Point I/O Board

The input, output, and relay family of modules (INP16, OUT16, REL8, IO16) provide a flexible, cost-effective means to expand the input/output functionality of the KT-1 and KT-400 door controllers. The INP16 input module provides 16 supervised inputs with a maximum of 256 inputs per door controller; while the OUT16 output module provides 16 open collector outputs that can also be used as an elevator control interface (ECI) with up to 16 relays (up to 64 floors for elevator control). For additional relays the REL8 increases flexibility by giving you the option to add 8 relays to the KT-400 door controller and can also be used as an ECI with a maximum 256 relays per controller (up to 64 floors for elevator control). The RS-485 input/output module (IO16) is easy to install and configure, featuring 16 terminals (configurable in lots of 4). This single unit enhances the functionality of the door controller by expanding its capacity and, eliminating the need to have additional lines of input/ output modules linked to a system. Common applications include: alarm monitoring and elevator control.

Features:

• Provides cost-effective expansion of input and output capacity
• Small, modular size requires minimal panel space
• Reduces length of sensor and control wiring (IO16)
• Dedicated tamper input included on each module
• 16 terminals for use as inputs/ outputs or elevator control (IO16)
• 16 LED indicators offering visual status of each terminal enable quick diagnostics and troubleshooting (IO16)
• Total of 256 inputs and 256 outputs per KT controller (IO16)
• Compatible with KT-1 and KT-400 door controllers
• Fully compatible with EntraPass security management software (IO16 v8.10 and higher)
