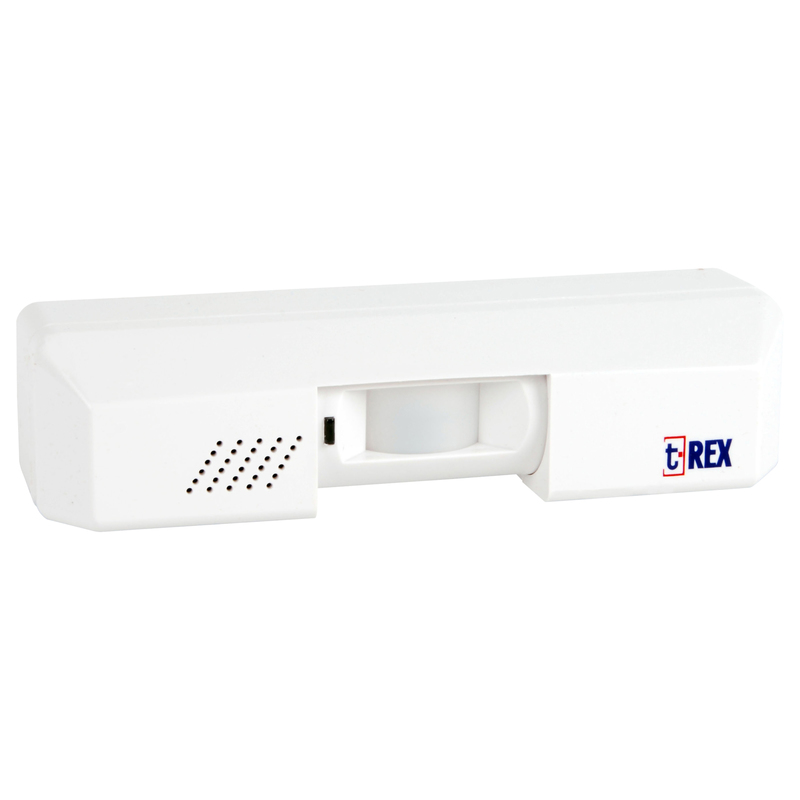

Kantech TREX-XL Exit Request Detector

Kantech TREX-XL Request To Exit Detector offers a robust solution for exit detection and door surveillance, making it an ideal choice for commercial access control applications. This sleek white detector features passive infrared (PIR) sensor technology, ensuring reliable detection of individuals exiting a monitored area. With a detection range of 10 to 20 feet, the TREX-XL is designed to effectively cover large doorways, providing peace of mind in high-traffic environments. Equipped with a tamper feature and a built-in piezo buzzer, the detector alerts users to unauthorized access attempts, enhancing security. The unit operates on a voltage range of 12 to 28 VDC and consumes a line draw of 50mA. Its timed relay action, adjustable between 0.5 to 60 seconds, allows for customizable exit timing, accommodating various operational needs. Measuring 4.5 inches in height, 1.88 inches in length, and 7.13 inches in width, the TREX-XL is compact yet powerful. Designed for commercial installation, this device is a reliable addition to any security system. With a single SPDT relay and support for various sensor applications, the Kantech TREX-XL Request To Exit Detector ensures effective monitoring and enhanced safety for your premises.

Request To Exit Detector

Request to Exit Detector, Tamper, Timer, Piezo Buzzer, White

Kantech creates a new standard and provides a complete solution to exit detection and door surveillance for access control applications.
