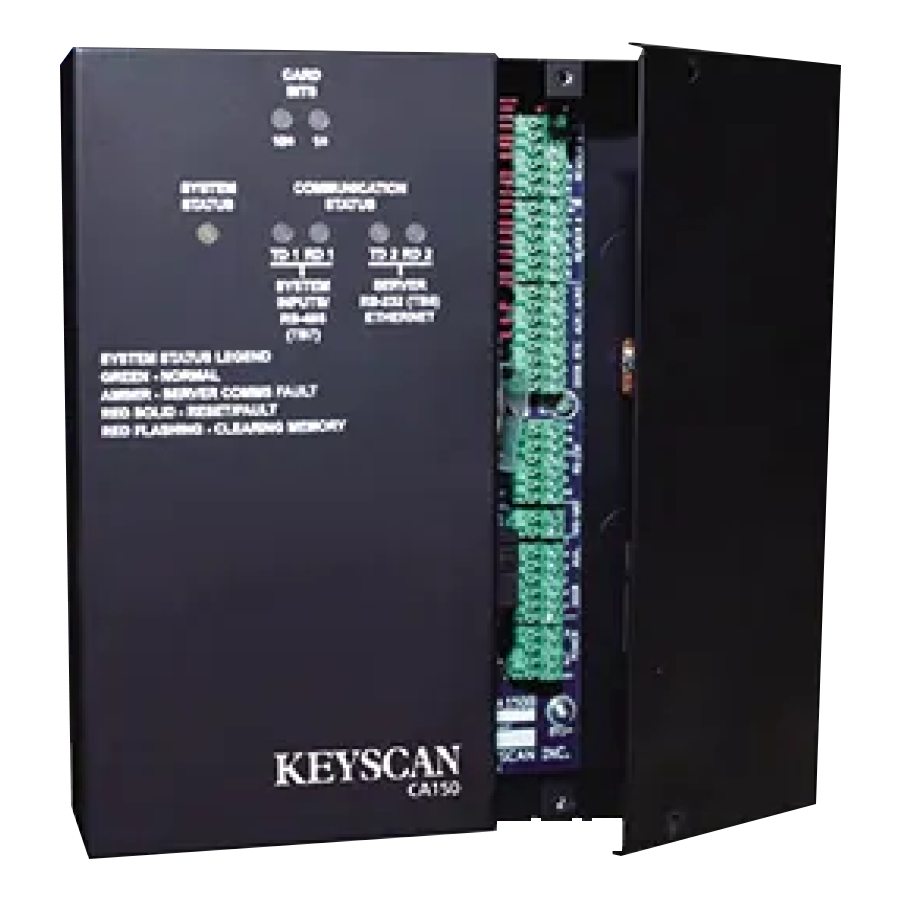

Keyscan CA150 1 Door PoE Equipped Controller

Keyscan CA150 1 Door PoE Equipped Controller delivers exceptional access control capabilities with flexibility and ease of use. Designed for single-door deployments, this PoE-ready unit integrates seamlessly with existing Keyscan systems or stands alone, providing a reliable solution for monitoring and regulating access. The CA150 features dual processors and expanded flash memory, accommodating up to 45,000 credentials, with the option for 90,000 using special order hardware. Its transaction buffer retains up to 6,000 transactions, ensuring no data is lost during communication interruptions, thanks to the auto-transfer protocol. Configurable reader settings support various Wiegand protocols, allowing for tailored security measures. Designed with expansion in mind, the CA150 includes multiple inputs and outputs, as well as support for 512 time schedules and 511 groups. Network connectivity is facilitated by a built-in TCP/IP module, and its PoE mode powers not just the reader but also auxiliary devices, making installation straightforward. With its compact design and robust features, the Keyscan CA150 is an ideal choice for building professionals and knowledgeable homeowners seeking efficient and reliable access control solutions for their properties. Ensure the safety of your premises with a controller that adapts to your evolving security needs.

1 Door PoE Equipped Controller

The CA series of door controllers provide unmatched access control system design flexibility. The CA series of door controllers includes 1, 2, 4, & 8-reader access control units. These Keyscan door controllers can be used for regulating and monitoring access at virtually any door. Interior or exterior doors can easily be supervised with readers, contacts, and an array of locking devices that suit your needs. dormakaba’s Keyscan CA series access control units will satisfy new access control systems or augment existing Keyscan systems.

Features:

• 1, 2, 4, 8 reader access control units for maximum system design flexibility
• Door controllers function seamlessly with Keyscan 1 and 2-cab EC series elevator floor control units
• Easily configurable reader settings supporting many Wiegand protocols
• Up to 6000 transactions retained in transaction buffer
• Auto-transfer protocol uploads transaction buffer when communication is re-established after an interruption
• Dual processors
• Expanded flash memory allows for 45,000 credentials per site (90,000 with special order hardware)
• Lockdown and global communication among multiple ACUs, server and sites (requires CIMs and CIM Link)
• Removable terminal blocks
• Accommodates 512 time schedules and 511 groups
• Multiple inputs and outputs for expansion capability

Models:

• CA150: Single-door, PoE equipped, access control unit
• CA250: 2-reader access control unit
• CA4500: 4-reader access control unit
• CA8500: 8-reader access control unit

Components:

• Ideal for a single-door deployment or to augment an existing system with a need for one additional door.
• Network connectivity with built-in PoE ready TCP/IP module
• PoE mode powers reader, strike, and other auxiliary devices, up to 680mA
• DHCP supported
• Dual processors
• Flash memory
• Two reader ports

Resources

• Cut Sheet
