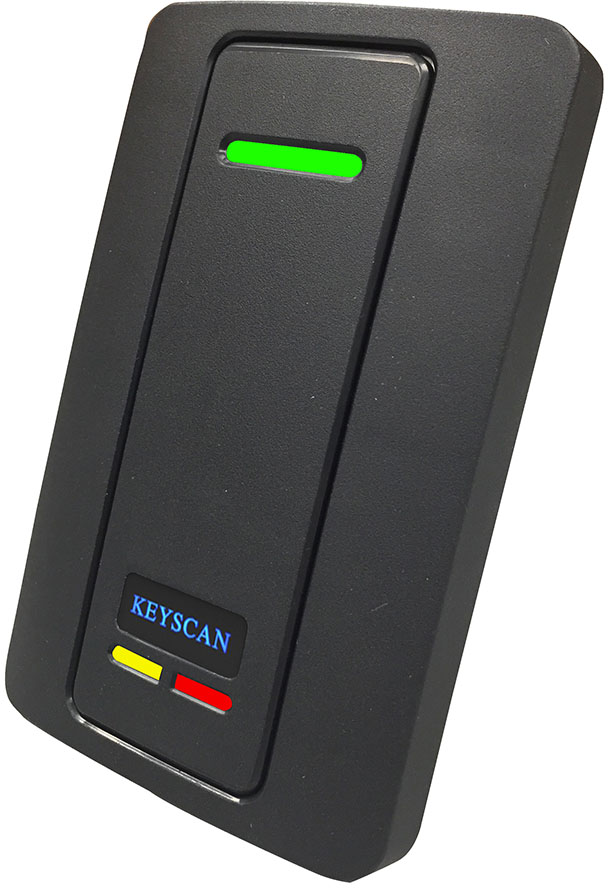

Keyscan K-SMART3 Mullion Single Gang BLE Reader, 13.56MHz, 12VDC, Wiegand, Black

Keyscan K-SMART3 Mullion and Single Gang Mount BLE Reader is a versatile 13.56MHz reader solution designed for both mobile and physical credentials. This reader is an excellent choice for new installations and upgrades, delivering exceptional performance and reliability when paired with Keyscan K-SECURE credentials. The K-SMART3 features advanced technology tailored for Keyscan access control systems, ensuring secure and efficient operations. With the ability to read Keyscan's 36-bit format, the K-SMART3 enhances credential encryption for added security. Anti-tamper "heartbeat" intelligence alerts users if the signal is interrupted, while auxiliary LED indicators provide visual confirmation of operational modes, such as lockdown. Designed for both indoor and outdoor use, the durable epoxy construction withstands harsh weather conditions, making it ideal for various environments. The reader also supports multiple BLE ranges, allowing flexibility based on installation and mobile device type, while the audible tones will alert users to any malfunctions or door-held-open events. With dimensions of 4 7/16" x 1 11/16" for the mullion mount and 4 3/4" x 3" for the single-gang mount, the K-SMART3 is compact yet powerful. It operates on a 12VDC input, making it compatible with a wide range of access control setups. Experience the reliability and innovation of Keyscan with the K-SMART3 today.

Mullion and Single Gang Mount BLE Reader, 13.56MHz, 12VDC Input, Pigtail, Wiegand, Black

The K-SMART3 reader series are cost-effective 13.56MHz reader solutions in reader and reader-keypad models. Keyscan K-SMART3 readers will function with both physical and mobile credentials. The K-SMART3 makes an ideal choice for new installations and existing system upgrades and retrofits because it offers unrivalled performance and reliability with Keyscan K-SECURE credentials.

Features:

• Leading edge K-SMART3 readers are mobile-ready for use with Keyscan mobile credentials
• Includes added technologies and dedicated functions for Keyscan access control systems
• Reads Keyscan 36-bit format for enhanced reader and credential encryption
• Anti-tamper "heartbeat" intelligence triggers alarm conditions when the signal is interrupted
• Auxiliary LED indicators provide visual confirmation of Keyscan‘s exclusive Present3 and lockdown mode
• Compatible with K-SMART legacy readers
• Compatible with K-SF-1K fobs and K-SECURE 1K & 4K credentials as well as ISO 14443 contactless non-proprietary smartcards (reading card serial number only)
• Support for Keyscan mobile credentials with no added programming
• On board audible tones generate a sound alert whenever malfunction or ‘door held open" events are detected
• Durable tamper-resistant epoxy design with weather-resistant construction for reliable indoor or outdoor operation
• Also available in keypad reader w/BLE models in both single-gang and mullion mount options:
• K-SMART3KM (Keypad mullion)
• K-SMART3KW (Keypad single-gang)

Specifications:

• Dimensions:
• Mullion mount: 4 7/16" x 1 11/16" x 11/16" (11.5 cm x 4.49 cm x 1.7 cm)
• Single-gang mount : 4 3/4" x 3" x 5/8" (12 cm x 7.6 cm 1.6 cm)
• Physical credential read range: On or off metal 1" (3 cm)
• Mobile credential read range: Four BLE read ranges – Short, medium, long or maximum (all read ranges are subject to installation of reader and type of mobile device used)
• Input voltage: 12 VDC at reader
• Typical current draw: 125mA
• Cable distance: 12" wire pigtail standard Wiegand interface 500 feet (152 meters); 6 conductor shielded 22 AWG
• Operating temperature: - 40° C to 66° C (- 40° F to 150.8° F)
• Reader programming card: K-PC2 command card (included) to toggle Keyscan enhanced features (Present3 & heartbeat)
• BLE programming card: Card to program BLE reader range setting (short, medium, long or maximum) - package of five identical programming cards sold separately
• Indoor/outdoor design secured in a rugged, tamper-resistant epoxy potting designed to withstand harsh weather conditions; Easily installed in any location
• Connections must be in accordance with NFPA 70. Reader and/or control unit power sources must not be connected to a receptacle controlled by a switch
