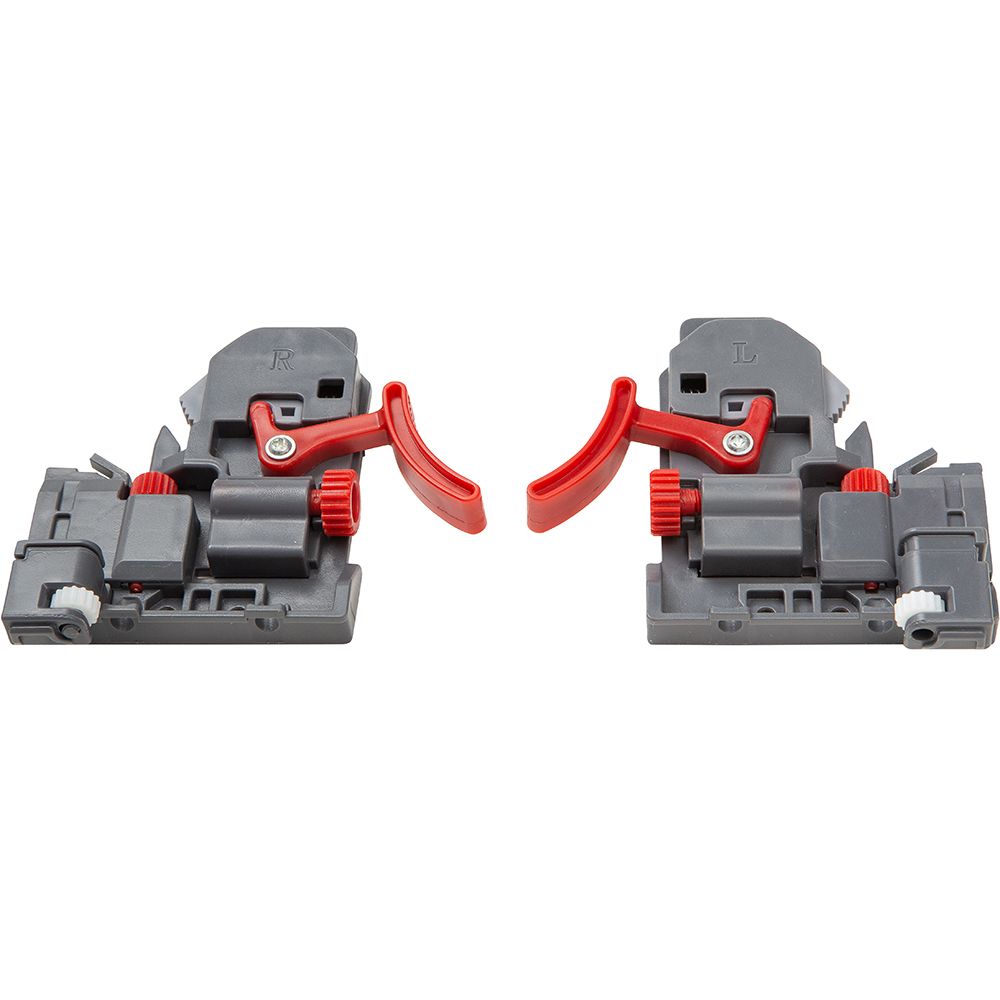

Knape & Vogt 2070-3D-RL 2070 Front Release Levers

KNAPE & VOGT 2070-3D-RL 2070 Front Release Levers elevate your cabinetry with an exceptional blend of functionality and style. Designed as part of the GSlide series, these undermount drawer slides offer full-extension capabilities and soft-close operation, ensuring a smooth and quiet experience every time you open or close a drawer. With a robust dynamic load rating of 75 pounds, they are suitable for various high-quality cabinet projects. These levers are perfect for both frame and frameless constructions, accommodating drawer thicknesses from 1/2" to 5/8". The installation process is straightforward, making it easy for professionals and DIY enthusiasts alike to enhance their cabinetry. The sleek zinc finish not only adds a modern touch but also meets or exceeds ANSI performance standards established by BIFMA, BHMA, and KCMA. Designed with a 32mm hole pattern that aligns with previous GS2070 slides, the 2070 Front Release Levers facilitate easy drawer removal, optimizing accessibility. With a recommended maximum drawer width of 24" and a minimum interior drawer width of 6 1/2", these levers provide versatility for various drawer configurations. Optional rear mounting brackets are also available, offering additional installation flexibility.

2070 Front Release Levers

• Load Rating: 75-Pound Class Dynamic
• Easy drawer removal with front release levers
• 5/32" (4mm) setback
• Height: 17/8" (includes dampener)
• Optional rear mounting bracket
• Minimum interior drawer width = 61/2"
• Designed to meet or exceed ANSI performance standards as established by BIFMA, BHMA and KCMA
• Recommended max drawer width 24"
• Travel: Full Extension
• 32mm hole pattern matches previous GS2070 slides and industry standards
• Available for drawer thickness of 1/2" to 5/8" drawer material
• Mounting: Undermount, for frame or frameless construction
• Zinc finish
• Release levers sold separately
