La Gard 1777 Flat Guard Ring Dial

La Gard Inc 1777 Flat Guard Ring Dial offers a robust solution for the operation of mechanical combination locks, designed for use with all LA GARD mechanical systems. With an external diameter of 95 mm, this die-cast dial features a stylish satin chrome finish, ensuring durability and a sleek appearance. The dial and ring combination is user-friendly, featuring front reading with separate markings for changing and opening the lock, which enhances usability and security. The spindle thread measures UNS 5/16"-40 and has a projecting length of 102 mm, making it suitable for configurations with up to four wheels, with usable lengths of 79 mm and 73 mm, respectively. Included with the dial is a hardware pack containing two screws (8-32 x 5/16 PH), allowing for straightforward installation. Additionally, the 1777 model can be customized with optional steel spindles in various lengths and configurations to meet specific requirements. This dial is not just functional; it combines practicality with an aesthetic appeal that will suit any secure environment. Whether you are a building professional or a conscientious homeowner, the La Gard Inc 1777 Flat Guard Ring Dial is a dependable choice for enhancing your security.

Flat Guard Ring Dial

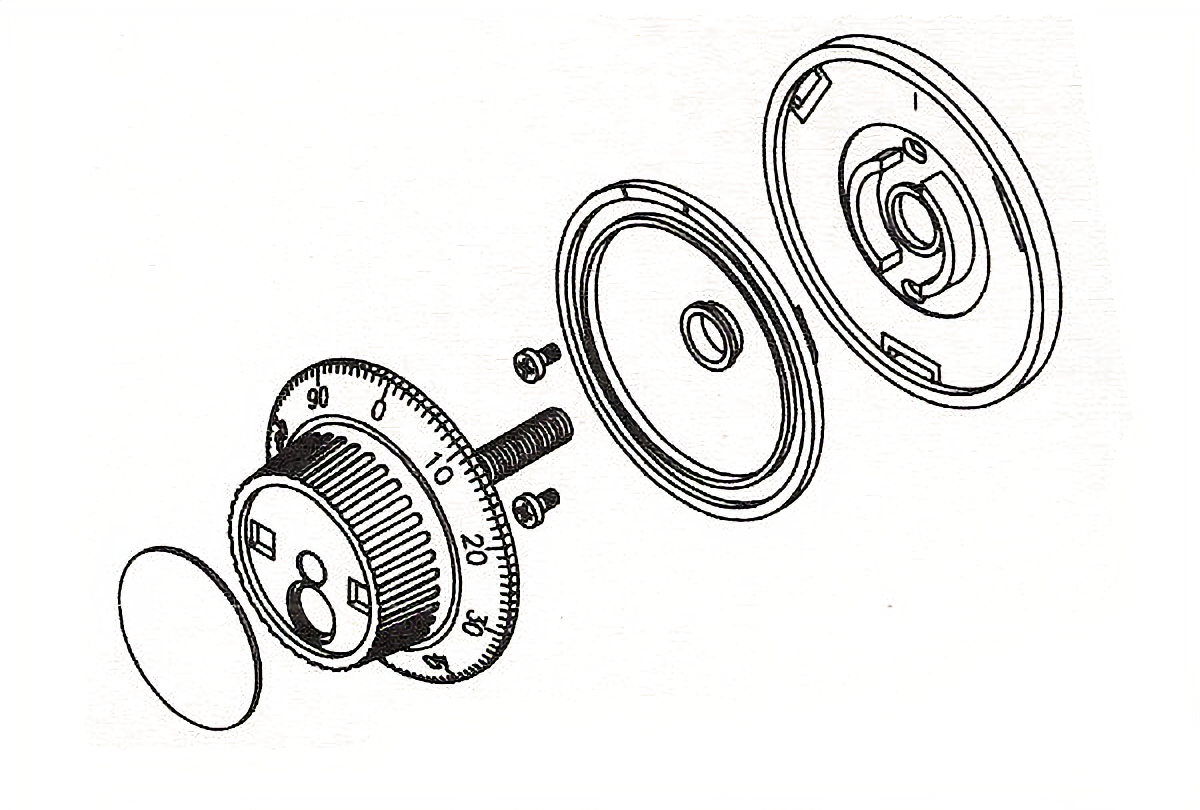

The conical dial and ring combination 1777/1779 is for the operation of mechanical combination locks.

Dial and Ring Combination:

• External diameter 95 mm
• Die-cast with satin chrome finish
• Hardware pack: 2 screws 8-32 x 5/16 PH (8mm)

Scale:

• Front reading
• Separate change and opening marking

Spindle:

• Thread UNS 5/16"-40, die-cast
• Projecting 102 mm
• Usable length: 79 mm for 3 wheels
• 73 mm for 4 wheels
• Dial splined on 43
• Suitable for all LA GARD mechanical combination locks

Options:

• Spindle, steel, projecting 192 mm (usable length: 169 mm for 3 wheels, 162 mm for 4 wheels)
• Spindle, steel, projecting 293 mm (usable length: 270 mm for 3 wheels, 263 mm for 4 wheels)
• With Hudson key lock and 2 numbered keys (LA GARD No. 1731)
• With Hudson key lock and 10 numbered keys (LA GARD 1779)

Features

• Hardware pack: 2 screws 8-32 x 5/16 PH (8mm)
• Die-cast with satin chrome finish
• External diameter 95 mm
