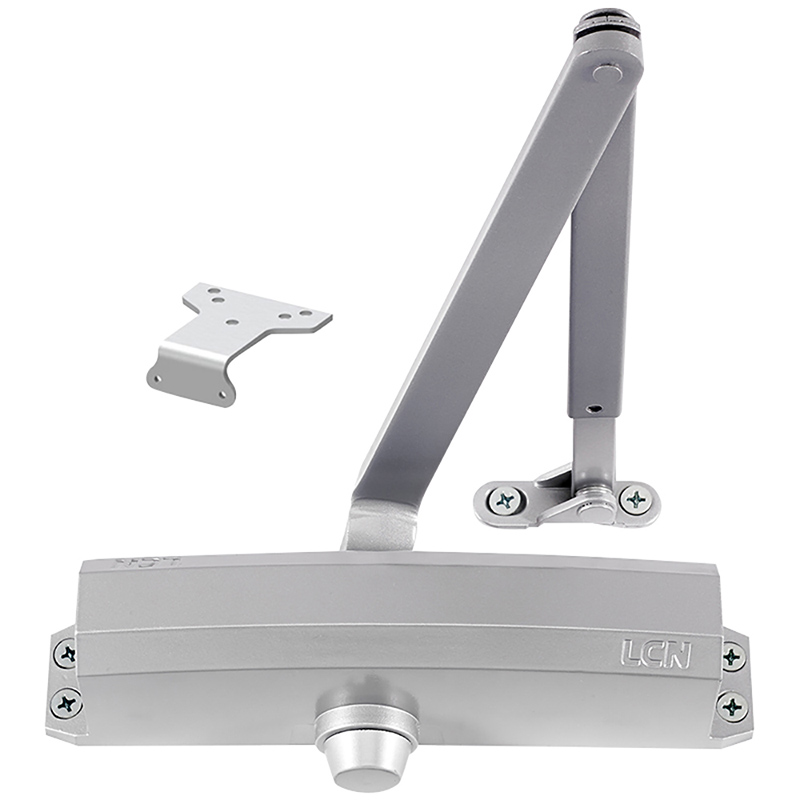

LCN 1250-Hw/PA 689 AL Surface Closer

LCN 1250-Hw/PA 689 Surface Closer AL is a robust hold open arm door closer designed for low-frequency and low-abusive traffic areas. Crafted from durable cast aluminum, this light-duty closer is perfect for storefronts and interior offices where reliable performance is essential. Featuring a patented design, it offers dependable operation while minimizing maintenance needs. The 1250 Series includes a full complement bearing and utilizes all-weather fluid to ensure smooth functionality in various conditions. Its adjustable spring size accommodates settings from 1 to 5, making it versatile for different door weights. The non-handed installation allows for easy mounting on either the push or pull side of the door, using the tri-mount style that simplifies the process. With peel-n-stick templates and a universal screw pack, retrofitting is hassle-free, and the most common hole pattern in the industry ensures compatibility with existing hardware. The closer also boasts a 180-degree hold open capability, enhancing accessibility in commercial spaces. Finished in a sleek matte silver (689/US28), the LCN 1250-Hw/PA is not only functional but also aesthetically pleasing. Backed by a 15-year limited warranty, it provides peace of mind and long-lasting performance in your door control systems.

Surface Closer AL

Hold Open Arm Door Closer w/62PA Shoe, Aluminum

The LCN Cast Aluminum Series closers were specially designed to deliver consistent, dependable, long lasting performance while offering high quality, effective solutions. This series of closers features a cast aluminum body, full compliment bearing, peel-n-stick templates and are offered in six standard finishes, as well as custom colors. The 1250 Series Light Duty Closer is designed for low frequency and low abusive traffic areas, ideal for storefronts and interior offices.

Cast aluminum light duty closer for low frequency and low abusive applications.

The patented 1250 Series offers an alternative closer solution at competitive prices, and includes LCN quality, engineering, reliability and service. This closer is ANSI Grade 1 certified, constructed of durable cast aluminum and built with top-quality components to provide years of worry-free performance in light duty door control applications.

Designed for low-frequency and low-abusive traffic areas, the 1250 Series is ideal for aluminum storefronts, interior offices and other applications. The closer features dependable operation, low maintenance and an optional slim line cover. Also, with the most common hole pattern in the industry, the 1250 Series is primed for easy aftermarket replacement.

• Cast Aluminum body
• Patented design
• Peel-n-Stick templates
• Universal screw pack
• Full complement bearing
• All weather fluid
• Adjustable spring size 1-5
• Non-handed
• 15 Year warranty
