LCN 1260-3049 689 Hold Open Arm AL

LCN 1260-3049 689 Hold Open Arm AL offers a robust and versatile solution for commercial door applications. This light to medium duty Grade 1 cast iron closer is designed to seamlessly fit into the most common commercial footprint, ensuring reliable performance and durability. With an adjustable spring size range of 1 to 5, the LCN 1260 accommodates both interior doors up to 4’6" and exterior doors up to 3’6", making it suitable for various settings. The non-handed design and peel-n-stick template with a 3/4" x 9-1/16" mounting hole pattern simplify installation on either right or left swinging doors. This closer features a full complement bearing, a 1-3/8" diameter piston, and a 5/8" diameter single heat-treated pinion journal, ensuring smooth operation over time. Compliance with ADA requirements makes this door closer an excellent choice for accessibility. The LCN 1260 is available in a matte silver finish, with options for custom powder coating and an SRI primer for corrosive environments. Additionally, the optional Quick Fix™ bracket kit enhances installation flexibility. Experience the perfect blend of functionality and style with the LCN 1260-3049, a dependable choice for any commercial space.

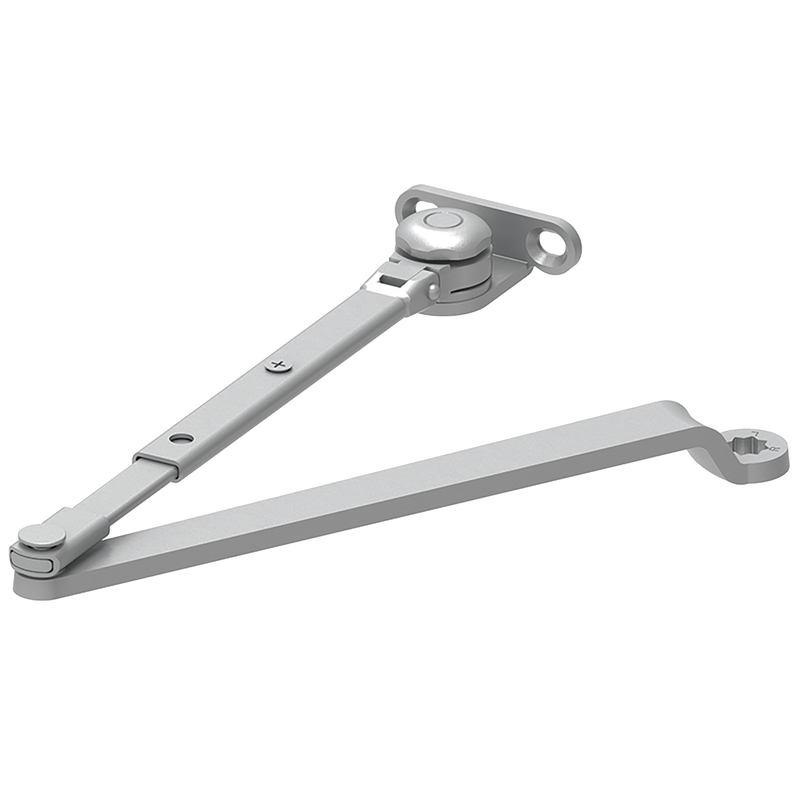

Hold Open Arm AL

Hold Open Arm, Aluminum Finish

The LCN 1260 Series is a light to medium duty Grade 1 cast iron closer designed to fit into the most common commercial footprint. The 1260 is adjustable from spring sizes 1 to 5 and offers a complete line of regular and extra duty arms. The 1260 features a full compliment bearing, 1-3/8 In. diameter piston and a 5/8 In. diameter single heat treated pinion journal. The non-handed design along with the peel-n-stick template with a 3/4 In. x 9-1/16 In. mounting hole pattern make for an easy installation.

Combines features of both the 1070 and 1370 LCN Series.

The 1260 Series is a versatile and economical cast iron clsoer with dual mounting capabilities. The 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.

• Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
• Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Mounts to most common commercial footprint (3/4” x 9 1/16”)
• Closer meets ADA requirements. See 1260 Series catalog page 10
• Optional Quick Fix™ bracket kit
• Standard or optional custom powder coat finish
• Optional SRI primer for installations in corrosive conditions
• Optional Slim Line cover
