LCN 1260-3049 691 Hold Open Arm - LTBRZ

LCN 1260-3049 691 Hold Open Arm LTBRZ offers a robust solution for managing door movement in commercial spaces. Designed for light to medium-duty applications, this Grade 1 cast iron closer seamlessly adapts to the most common commercial footprint. With an adjustable spring size range from 1 to 5, it effectively accommodates various door sizes, allowing for ease of use in both interior and exterior settings-up to 4'6" for interior doors and 3'6" for exterior doors. The LCN 1260 features a full complement bearing, a 1-3/8 inch diameter piston, and a durable 5/8 inch heat-treated pinion journal for reliable performance. Its non-handed design simplifies installation, and the peel-n-stick template with a 3/4 inch x 9-1/16 inch mounting hole pattern ensures a straightforward setup. This closer meets ADA requirements, making it a compliant choice for accessibility. Additionally, the 1260 series includes options for custom finishes, including a standard or optional Slim Line cover, and an optional Quick Fix™ bracket kit for enhanced adaptability. Ideal for professionals seeking a versatile and economical solution, the LCN 1260-3049 delivers both functionality and style in a matte bronze finish.

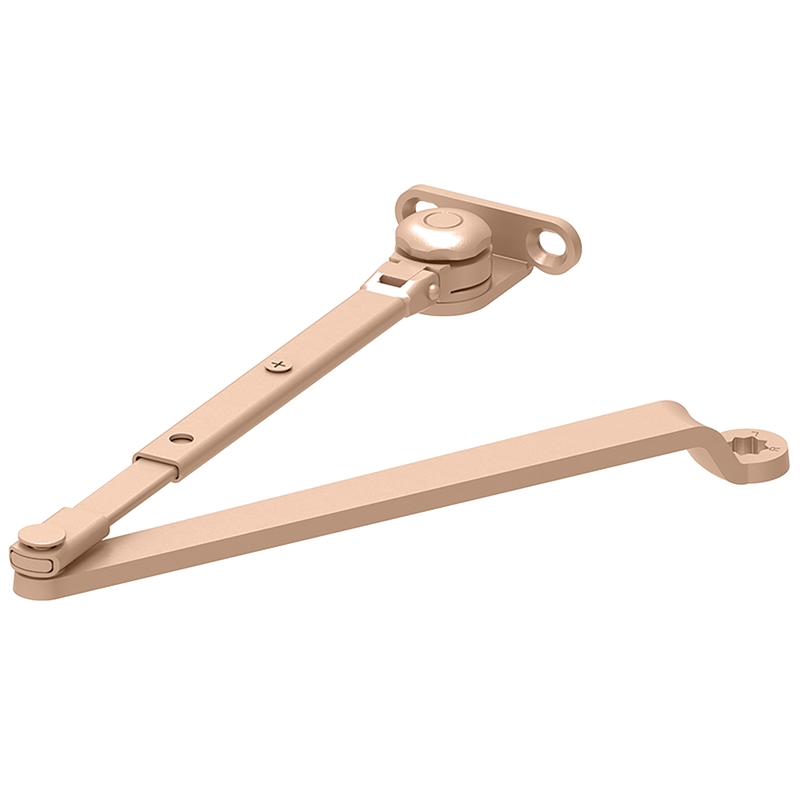

Hold Open Arm LTBRZ

Hold Open Arm, Light Bronze Finish

The LCN 1260 Series is a light to medium duty Grade 1 cast iron closer designed to fit into the most common commercial footprint. The 1260 is adjustable from spring sizes 1 to 5 and offers a complete line of regular and extra duty arms. The 1260 features a full compliment bearing, 1-3/8 In. diameter piston and a 5/8 In. diameter single heat treated pinion journal. The non-handed design along with the peel-n-stick template with a 3/4 In. x 9-1/16 In. mounting hole pattern make for an easy installation.

Combines features of both the 1070 and 1370 LCN Series.

The 1260 Series is a versatile and economical cast iron clsoer with dual mounting capabilities. The 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.

• Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
• Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Mounts to most common commercial footprint (3/4” x 9 1/16”)
• Closer meets ADA requirements. See 1260 Series catalog page 10
• Optional Quick Fix™ bracket kit
• Standard or optional custom powder coat finish
• Optional SRI primer for installations in corrosive conditions
• Optional Slim Line cover
