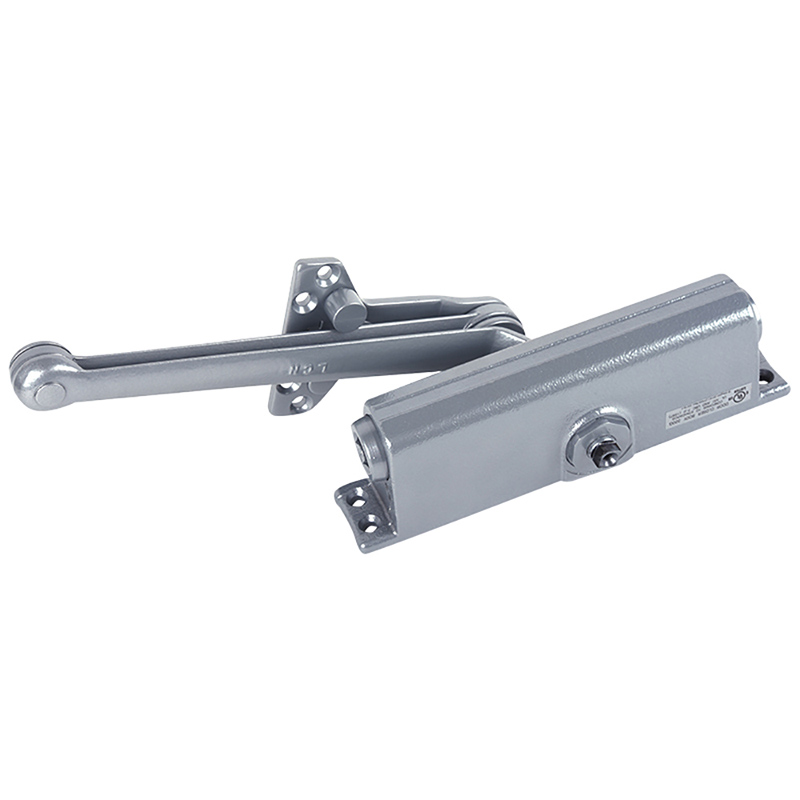

LCN 1261-CUSH 689 AL Surface Closer

LCN 1261-CUSH 689 Surface Closer AL is a Grade 1 surface door closer designed for light to medium-duty applications. Featuring a Cush-N-Stop arm and push side parallel arm mounting, this closer accommodates a 110-degree swing and is adjustable from sizes 1 to 5, making it highly versatile for various door configurations. The durable cast iron construction ensures longevity, while the all-weather fluid allows reliable performance in any climate. This non-handed model simplifies installation with its peel-n-stick template and common mounting hole pattern of 3/4" x 9-1/16". The 1260 Series combines features from both the 1070 and 1370 LCN Series, offering a comprehensive solution for commercial environments. With a full complement bearing, a 1-3/8" diameter piston, and a single heat-treated pinion journal, this closer guarantees smooth operation. The LCN 1261 also meets ADA requirements, making it a practical choice for accessible designs. Optional features include a Quick Fix™ bracket kit, Slim Line cover, and a custom powder coat finish, catering to various aesthetic and functional needs. Backed by a 20-year limited warranty, this closer is both reliable and economical, ensuring doors close securely and smoothly for years to come.

Surface Closer AL

Grade 1 Surface Door Closer, Cush-N-Stop Arm, Push Side Parallel Arm Mounting, 110 Degree, Size 1 to 5, No Cover, All Weather Fluid, Aluminum Finish, Non-Handed

The LCN 1260 Series is a light to medium duty Grade 1 cast iron closer designed to fit into the most common commercial footprint. The 1260 is adjustable from spring sizes 1 to 5 and offers a complete line of regular and extra duty arms. The 1260 features a full compliment bearing, 1-3/8 In. diameter piston and a 5/8 In. diameter single heat treated pinion journal. The non-handed design along with the peel-n-stick template with a 3/4 In. x 9-1/16 In. mounting hole pattern make for an easy installation.

Combines features of both the 1070 and 1370 LCN Series.

The 1260 Series is a versatile and economical cast iron clsoer with dual mounting capabilities. The 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.

• Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
• Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Mounts to most common commercial footprint (3/4” x 9 1/16”)
• Closer meets ADA requirements. See 1260 Series catalog page 10
• Optional Quick Fix™ bracket kit
• Standard or optional custom powder coat finish
• Optional SRI primer for installations in corrosive conditions
• Optional Slim Line cover
