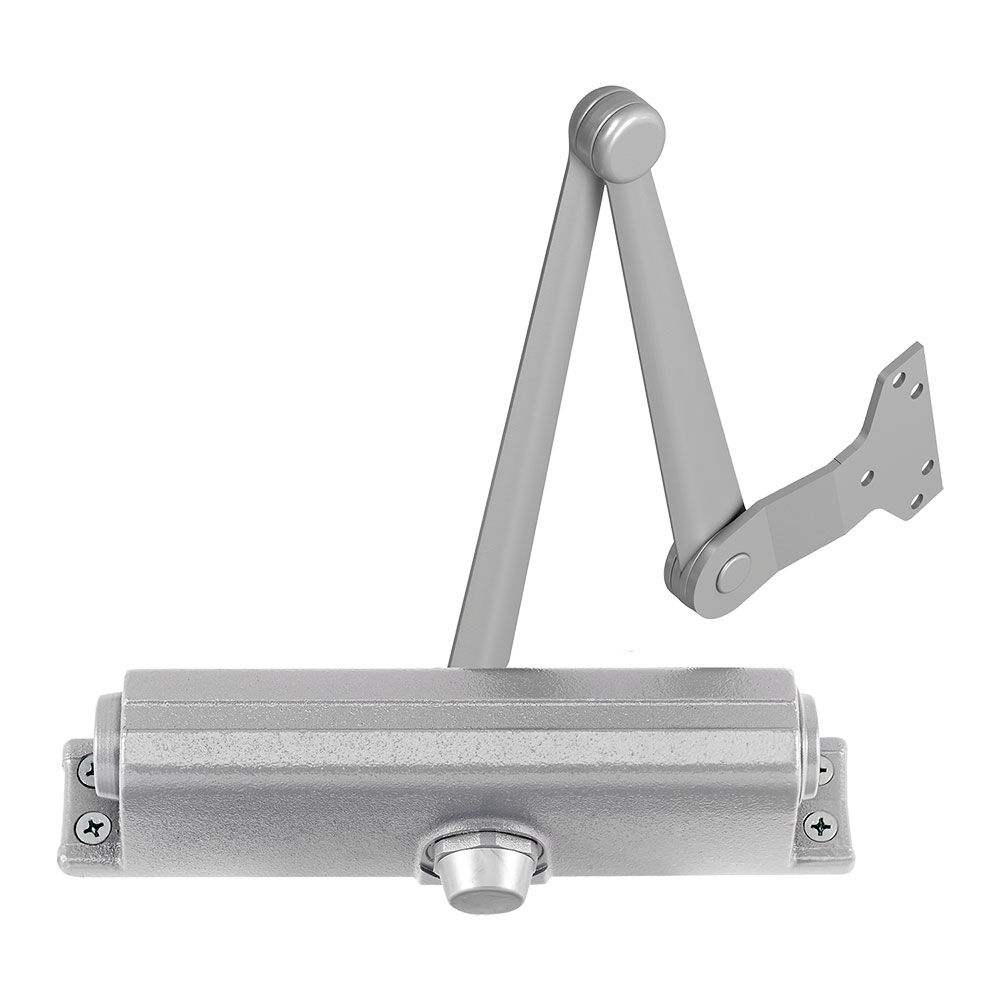

LCN 1261-EDA 689 AL Surface Closer

LCN 1261-EDA 689 Surface Closer AL is a Grade 1 surface door closer designed for both durability and functionality. This model features an extra duty arm and is mounted on the push side with a parallel arm configuration, accommodating a generous 120-degree swing. It offers adjustable spring sizes from 1 to 5, ensuring versatility for various door applications, whether for light or medium duty use. Constructed from robust cast iron, the LCN 1260 Series closer is non-handed and includes a peel-n-stick template for easy installation, making it a preferred choice for commercial settings. The closer is designed to fit the most common commercial footprint, with a mounting hole pattern of 3/4" x 9-1/16". It operates smoothly in all weather conditions thanks to its all-weather fluid, and it meets ADA requirements, enhancing accessibility. With a limited 20-year warranty, this closer ensures long-term reliability, while optional features such as a Slim Line cover and SRI primer for corrosive environments provide additional customization. The LCN 1261-EDA is finished in a matte silver (689/US28), making it an aesthetically pleasing addition to any door hardware setup.

Surface Closer AL

Grade 1 Surface Door Closer, Extra Duty Arm, Push Side Parallel Arm Mounting, 120 Degree, Size 1 to 5, No Cover, All Weather Fluid, Aluminum Finish, Non-Handed

The LCN 1260 Series is a light to medium duty Grade 1 cast iron closer designed to fit into the most common commercial footprint. The 1260 is adjustable from spring sizes 1 to 5 and offers a complete line of regular and extra duty arms. The 1260 features a full compliment bearing, 1-3/8 In. diameter piston and a 5/8 In. diameter single heat treated pinion journal. The non-handed design along with the peel-n-stick template with a 3/4 In. x 9-1/16 In. mounting hole pattern make for an easy installation.

Combines features of both the 1070 and 1370 LCN Series.

The 1260 Series is a versatile and economical cast iron clsoer with dual mounting capabilities. The 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.

• Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
• Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Mounts to most common commercial footprint (3/4” x 9 1/16”)
• Closer meets ADA requirements. See 1260 Series catalog page 10
• Optional Quick Fix™ bracket kit
• Standard or optional custom powder coat finish
• Optional SRI primer for installations in corrosive conditions
• Optional Slim Line cover
