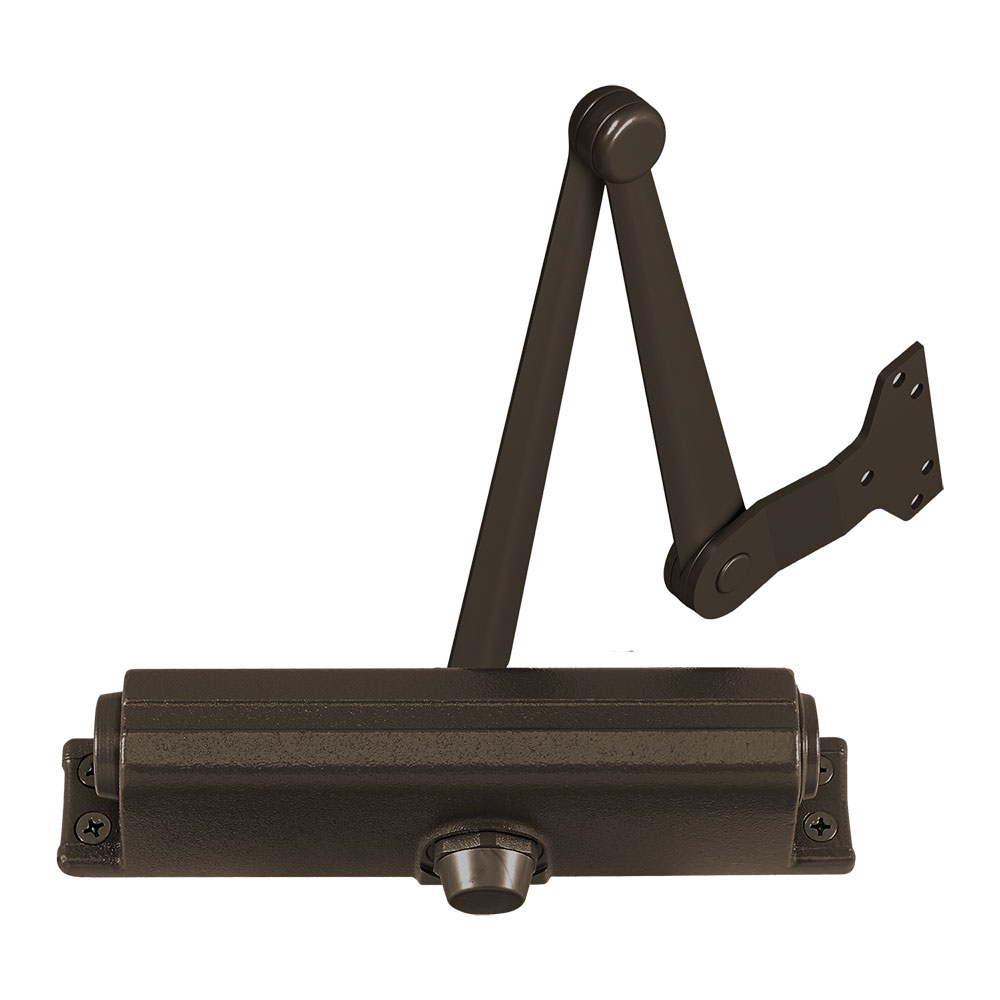

LCN 1261-EDA 695 SLIM DKBRZ Surface Closer

LCN 1261-EDA 695 SLIM Surface Closer DKBRZ offers a robust solution for commercial door management with its Grade 1 rating and extra duty arm. Designed for push side parallel arm mounting, this closer accommodates a 120-degree swing and is adjustable from sizes 1 to 5, making it versatile for various door applications. The slim cover not only enhances aesthetics but also ensures durability, while the dark bronze finish adds a touch of elegance. Built with a full complement bearing and a sturdy 1-3/8 inch diameter piston, the LCN 1261-EDA is crafted from cast iron, ensuring a reliable performance in light to medium duty environments. Its non-handed design facilitates easy installation, complemented by a peel-n-stick template featuring a 3/4 inch x 9-1/16 inch mounting hole pattern. This closer meets ADA requirements and is equipped with all-weather fluid for optimal performance in varying climates. Additionally, options for custom powder coat finishes and a quick fix bracket kit enhance its adaptability. With a 20-year limited warranty, the LCN 1261-EDA 695 promises long-lasting reliability and functionality, making it an essential choice for building professionals seeking high-quality door hardware solutions.

Surface Closer DKBRZ

Grade 1 Surface Door Closer, Extra Duty Arm, Push Side Parallel Arm Mounting, 120 Degree, Size 1 to 5, Slim Cover, All Weather Fluid, Dark Bronze Finish, Non-Handed

The LCN 1260 Series is a light to medium duty Grade 1 cast iron closer designed to fit into the most common commercial footprint. The 1260 is adjustable from spring sizes 1 to 5 and offers a complete line of regular and extra duty arms. The 1260 features a full compliment bearing, 1-3/8 In. diameter piston and a 5/8 In. diameter single heat treated pinion journal. The non-handed design along with the peel-n-stick template with a 3/4 In. x 9-1/16 In. mounting hole pattern make for an easy installation.

Combines features of both the 1070 and 1370 LCN Series.

The 1260 Series is a versatile and economical cast iron clsoer with dual mounting capabilities. The 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.

• Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
• Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Mounts to most common commercial footprint (3/4” x 9 1/16”)
• Closer meets ADA requirements. See 1260 Series catalog page 10
• Optional Quick Fix™ bracket kit
• Standard or optional custom powder coat finish
• Optional SRI primer for installations in corrosive conditions
• Optional Slim Line cover
