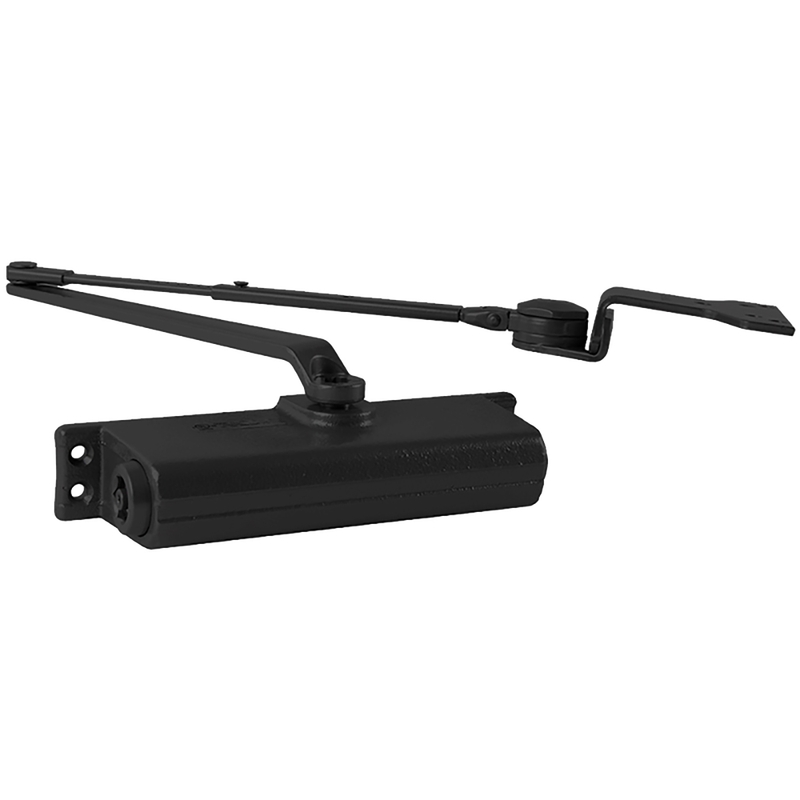

LCN 1261-HW/PA 693 Surface Closer GLBLK

LCN 1261-HW/PA 693 Surface Closer GLBLK is a Grade 1 surface door closer that combines durability and functionality for commercial applications. Designed for light to medium-duty use, it features a hold-open arm and a PA shoe, allowing for versatile installation options on both the push and pull sides of the door. With its tri-mount capability, the closer easily adapts to hinge side, top jamb, or parallel arm configurations, accommodating right or left swinging doors. This non-handed closer adjusts from spring sizes 1 to 5, making it suitable for doors up to 4’6" for interiors and 3’6" for exteriors. The design includes a robust cast iron construction, featuring a full complement bearing and a single heat-treated pinion journal for added strength. The all-weather fluid ensures reliable performance in various climates, while the sleek black finish adds an elegant touch. Meeting ADA requirements, the LCN 1261 is also equipped with self-reaming and tapping screws for easy installation, making it a practical choice for any building professional. With a limited 20-year warranty, you can trust in its longevity and performance. Choose the LCN 1261 for a dependable solution that blends quality with convenience.

Surface Closer GLBLK

Grade 1 Surface Door Closer, Hold Open Arm, PA Shoe, Push or Pull Side Tri Mount Mounting, 180 Degree, Size 1 to 5, No Cover, All Weather Fluid, Black Finish, Non-Handed

The LCN 1260 Series is a light to medium duty Grade 1 cast iron closer designed to fit into the most common commercial footprint. The 1260 is adjustable from spring sizes 1 to 5 and offers a complete line of regular and extra duty arms. The 1260 features a full compliment bearing, 1-3/8 In. diameter piston and a 5/8 In. diameter single heat treated pinion journal. The non-handed design along with the peel-n-stick template with a 3/4 In. x 9-1/16 In. mounting hole pattern make for an easy installation.

Combines features of both the 1070 and 1370 LCN Series.

The 1260 Series is a versatile and economical cast iron clsoer with dual mounting capabilities. The 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.

• Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
• Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Mounts to most common commercial footprint (3/4” x 9 1/16”)
• Closer meets ADA requirements. See 1260 Series catalog page 10
• Optional Quick Fix™ bracket kit
• Standard or optional custom powder coat finish
• Optional SRI primer for installations in corrosive conditions
• Optional Slim Line cover
