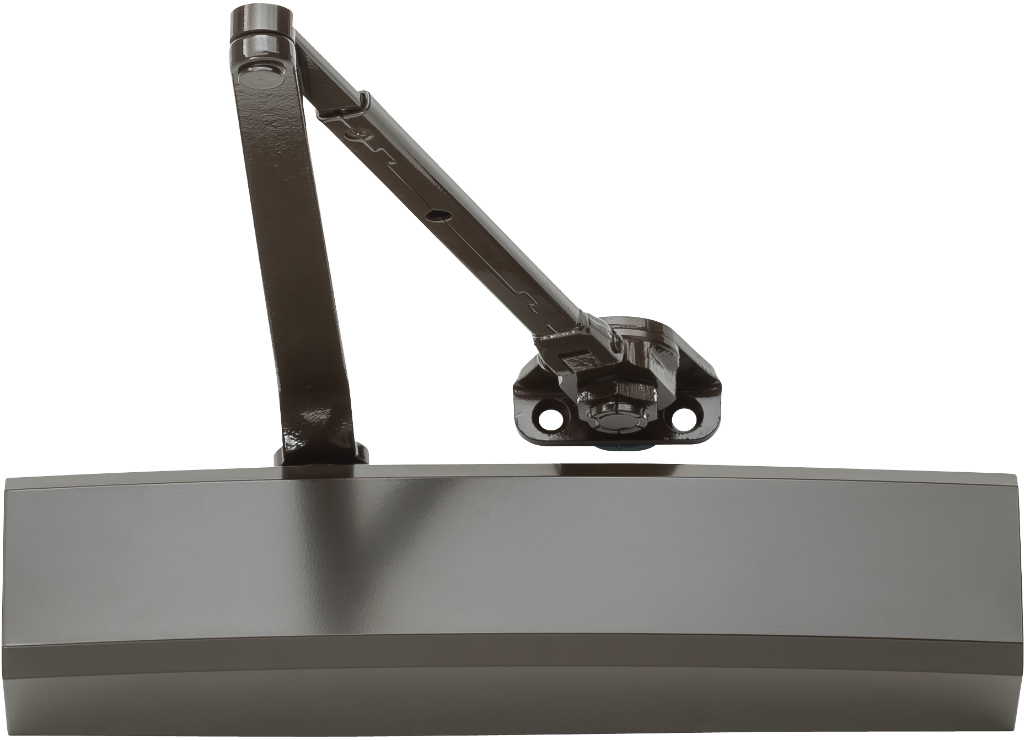

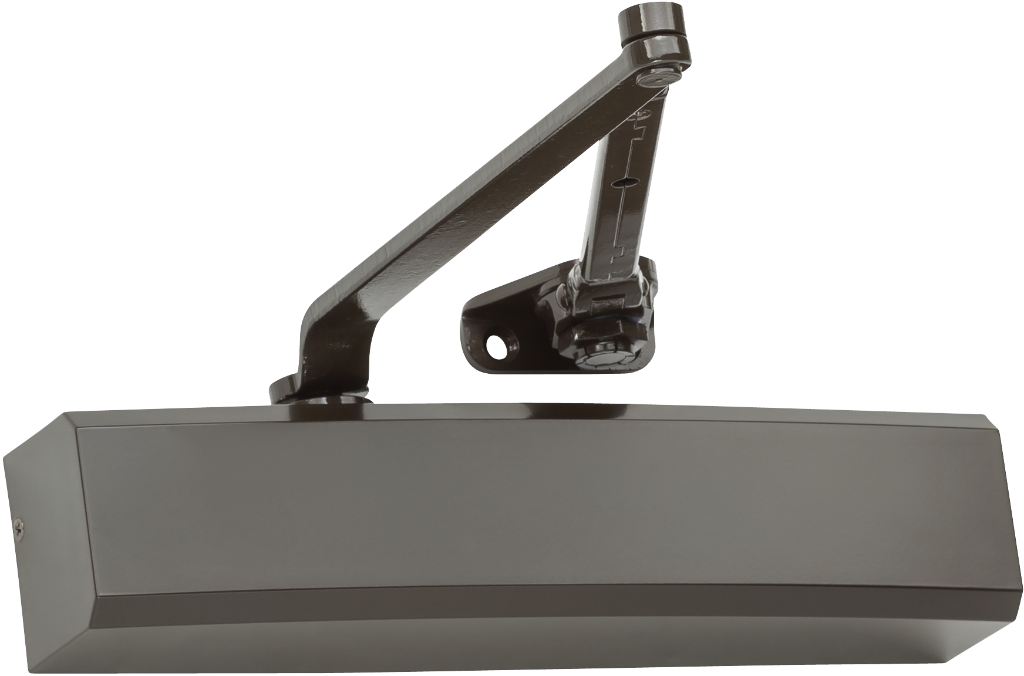

LCN 1450-RW/PA-DKBRZ-FC Medium Duty Door Closer, Cast Aluminum, ADA Adjustable, Dark Bronze

LCN Closers 1450-RW/PA-DKBRZ-FC Medium Duty Door Closer combines strength and versatility in a sleek design, making it an ideal choice for high-traffic areas. Crafted from durable cast aluminum, this surface-mounted closer features a patent-pending design that ensures dependable performance in both residential and commercial applications. With a tri-pack arm, it can be mounted on the pull side, top jamb, or as a parallel arm, providing flexibility to suit various installation needs. The 1450 series is ADA adjustable from sizes 1 to 6, ensuring compliance with accessibility standards. It is certified Grade 1, meeting ANSI A156.4 and UL 10C standards, making it a reliable choice for demanding environments. The all-weather fluid and full complement bearing contribute to its smooth operation, while the universal screw pack simplifies installation. Available with a slim line plastic cover and optional full plastic or metal covers, this closer is as stylish as it is functional. With a variety of finishes, including the striking dark bronze powder coat, the LCN 1450-RW/PA-DKBRZ-FC complements any architectural design. Backed by a 25-year warranty, it promises longevity and peace of mind for building professionals and homeowners alike.

Medium Duty Door Closer, Cast Aluminum, Surface Mount, Tri-Pack Arm for Regular Pull Side, Top Jamb, or Parallel Arm Mount, Full Plastic Cover, ADA Adjustable Size 1-6, Grade 1, Universal Screw Pack, 695/DKBRZ Dark Bronze Powder Coat

The 1450 series cast aluminum closer was specially designed to deliver consistent, dependable, long-term performance in frequently-used, low-abusive traffic areas. The patent-pending LCN design, featuring the industry’s most common hole pattern, is an excellent choice for a range of applications — from aftermarket replacement, to aluminum store fronts, to new construction projects — anywhere quality, reliability and value are important. The 1450 series also looks as good as it functions, with a standard slim line cover, optional full plastic cover or optional full metal cover, in six available standard finishes, as well as custom colors. The result is a great look with a long list of valuable features — plus LCN quality, engineering and service — all at a competitive price.

Features:

• Patent pending design
• Peel-n-stick templates
• Universal screw pack
• Full complement bearing
• All weather fluid
• Adjustable spring size 1-6
• Non-handed
• 25 Year warranty

Specifications:

• Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 hour salt spray, meets BAA - buy American Act
• Body construction:
• Cast Aluminum body
• Full complement bearing
• 1⁄4" diameter piston
• 5⁄8" diameter single heat treated pinion journal
• Fluid: All weather
• Templating: Peel-n-Stick templates - 3⁄4" x 12" mounting hole pattern
• Size: Adjustable spring size 1-6
• Cover: slim line plastic, standard. Full plastic and metal, optional
• Fasteners: Universal screw pack (UNIV)
• Mounting: Hinge (pull side), top jamb (push side), parallel arm (push side)

Optional Arms:

• 1450-3077: Regular Arm with Parallel Arm Bracket (RWPA)
• Non-handed
• Mounts hinge side or top jamb
• Includes PA shoe, 1450-62PA required for parallel arm mounting
• 1450-3077L: Long Arm (LONG)
• Non-handed
• Includes long rod and shoe, 1450-79LR for top jamb mount with deep reveals
• Optional
• 1450-3049: Hold Open Arm with Parallel Arm Bracket (HWPA)
• Non-handed
• Mounts hinge side, top jamb or parallel arm (62PA required)
• Hold open adjustable at shoe
• Optional
• 1450-3049L: Hold Open Long Arm (HLONG)
• Non-handed
• Includes long head and tube, 1450-3048L for top jamb mount with deep reveals
• Optional
• 1450-3077EDA: Extra Duty Arm (EDA)
• Non-handed
• Features solid forged steel main and forearm for potentially abusive installations
• Optional 1450-3077EDA/G for blade stop clearance
• 1450-3077EDA/62G: Extra Duty Arm with 62G Thick Hub Shoe (EDAW62G)
• Non-handed
• Features solid forged steel main and forearm for potentially abusive installations
• Optional 1450-3077EDA/G for blade stop clearance
• 1450-3049EDA: Hold Open Extra Duty Arm (HEDA)
• Handed
• Provides hold open function adjustable at shoe
• Optional
• 1450-3077CNS: Cush-n-Stop Arm (CUSH)
• Non-handed
• Features solid forged steel main arm and forearm with stop in soffit shoe
• Optional
• 1450-3049CNS: Hold Open Cush-n-Stop Arm (HCUSH)
• Non-handed
• Provides hold open function with templated stop/hold open points
• Handle controls hold open function
• Optional
• 1450-3077SCNS: Spring Cush-n-Stop Arm (SCUSH)
• Non-handed
• For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
• Optional
• 1450-3049SCNS: Spring Hold Open Cush-n-Stop Arm (SHCUSH)
• Non-handed
• For abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe
• Handle controls hold open function
• Optional

Finishes:

• 689 - Aluminum
• 690 - Statuary bronze
• 691 - Light bronze
• 693 - Black
• 695 - Dark bronze
• 696 - Brass

Resources

• Cut Sheet
• Spec Sheet
