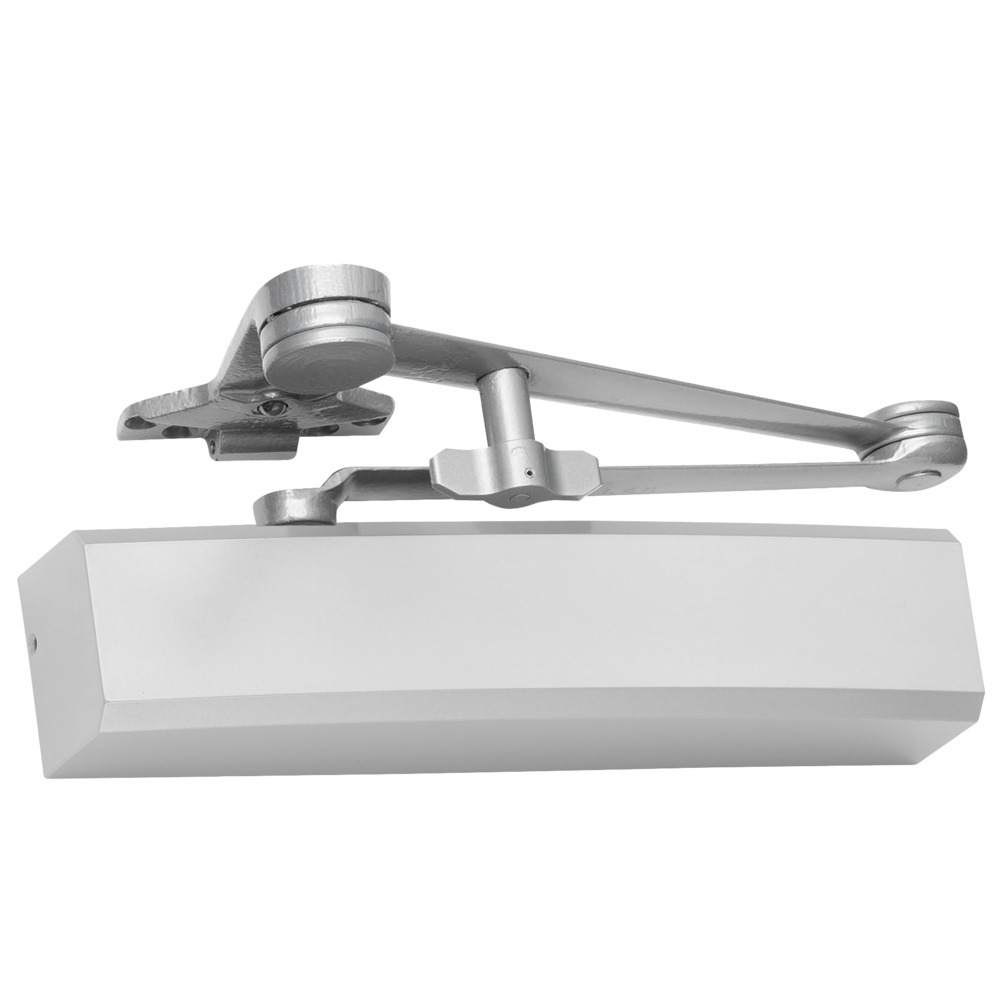

LCN 1450-SHCUSH 689 FC AL Surface CloserLCN 1450-SHCUSH 689 FC Surface Closer AL is a Grade 1 cast aluminum surface mount closer designed for durability and reliability in high-traffic environments. This versatile closer features an adjustable spring size from 1 to 6, accommodating various door weights and sizes, making it suitable for both aluminum storefronts and interior office applications. The friction hold open double lever arm enhances functionality, while the soffit spring stop provides added convenience. Engineered with a full plastic cover and an aluminum painted finish, this model not only performs effectively but also adds an aesthetic touch to any door. The LCN 1450 Series closers are designed for frequent use in low-abuse traffic areas, ensuring long-lasting performance with minimal maintenance. The patent-pending design includes peel-n-stick templates for easy installation and a universal screw pack for added versatility. With features like an adjustable back check, cold weather fluid, and a 110-degree swing, the LCN 1450-SHCUSH is built to withstand the elements while ensuring smooth operation. Additionally, it comes with a 25-year warranty, highlighting its quality and dependability. This closer is ADA compliant and ideal for commercial installations, making it a smart choice for building professionals and homeowners alike.
Surface Closer AL
Grade 1 Cast Aluminum Surface Mount Closer, Size 1-6 Adjustable, Friction Hold Open Double Lever Arm, Soffit Spring Stop, Non-Handed, Full Plastic Cover, Aluminum Painted Finish
The LCN Cast Aluminum Series closers were specially designed to deliver consistent, dependable, long lasting performance while offering high quality, effective solutions. This series of closers features a cast aluminum body, full compliment bearing, peel-n-stick templates and are offered in six standard finishes, as well as custom colors. The 1450 Series Medium Duty Closer is designed for frequent use and low abusive traffic areas, ideal for aluminum storefronts and interior offices.
The 1450 Series is a cast aluminum medium duty closer for frequent use and low abusive applications.
The 1450 Series also looks as good as it functions, with a standard slim line cover, optional full plastic cover or optional full metal cover, in six available standard finishes, as well as custom colors.
- Cast Aluminum Body
- Patent Pending Design
- Peel-n-Stick Templates
- Universal Screw Pack
- Full Complement Bearing
- All Weather Fluid
- Adjustable Spring Size 1-6
- Non-Handed
- 25 Year Warranty
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: A156.4
Arm Type: Double Lever Arm, Friction Hold Open Soffit Spring Stop
Baa Qualified: Yes
Back Check: Adjustable
Base Material: Varies
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Country of origin: USA
Cover: Full Plastic
Degree Hold Open: Adjustable
Degree Swing: 110 Deg.
Door Size: Ext to 48", Int to 60"
Finish: 689/US28
Finish Family: Matte Silver
Grade: Grade 1
Handing: Non-Handed
Hold Open: Yes
Hold Open Type: T Turn
Installation: Commercial
Limited Warranty: 25 Years
Mounting Group: Hydraulic
Mounting Location: Push or Pull Side
Mounting Style: Tri Mount
Origin: USA
Pack Qty: 1
Pbs Options: 4404205
Screw Type: Machine and Self-Tapping
Series: 1450 Series Surface Mounted Closers
Ship Weight: 10 lbs.
Stop: Spring Stop
Subtype: Surface Closers
Through Bolts: Yes
Type: Surface
Ul Listing: 10C
Unit of Measure: Each
