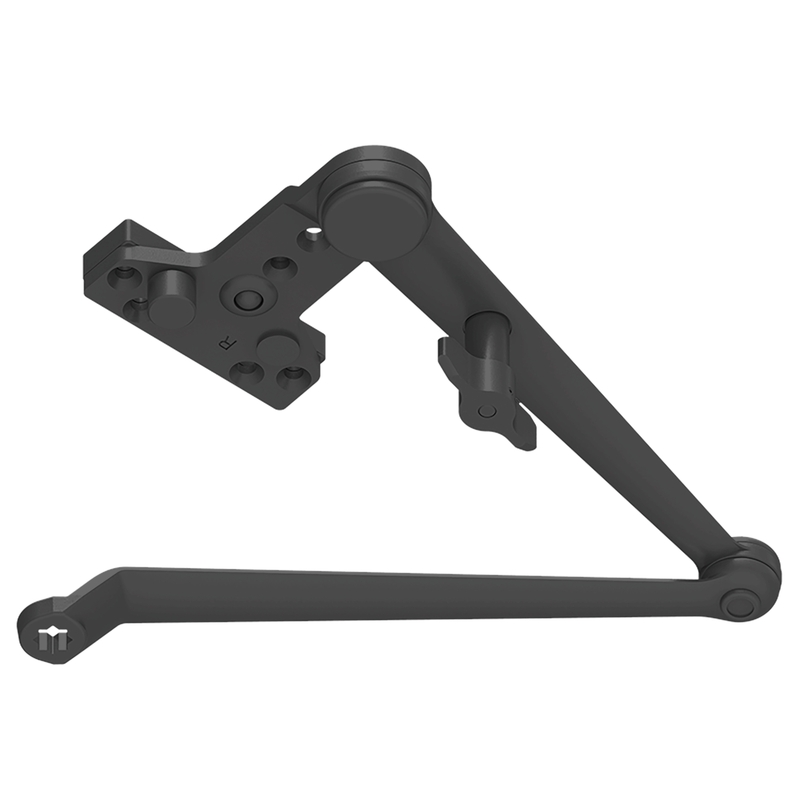

LCN 1460-3049CNS 693 Cush-NStop Hold Open Arm - GLBLK

LCN 1460-3049CNS 693 Hold Open Cush-NStop Arm GLBLK offers exceptional versatility and performance for both commercial and institutional settings. This Grade 1 door closer features a robust cast iron body with a full complement bearing, ensuring durability and reliability under demanding conditions. The 1-1/4 inch diameter piston and heat-treated 3/4 inch pinion journal contribute to its long-lasting efficiency, while the all-weather fluid enhances performance across various climates. Designed for quick and accurate installation, this universal closer accommodates doors up to 5’0" for interiors and 4’0" for exteriors, with an adjustable spring size ranging from 1 to 6. The Cush-N-Stop feature integrated into the arm prevents potential damage to the closer, door, or frame during abrupt stops. Its non-handed design allows for flexible mounting options-hinge side, top jamb, or parallel arm-making it suitable for any door swing direction. Available in a sleek black painted finish, this model also meets ADA requirements, ensuring accessibility. With minimal maintenance needs and independent adjustment valves for closing speed, backcheck, and latching speed, the LCN 1460-3049CNS is a practical choice for any project requiring a reliable, adjustable door closer.

Hold Open Cush-NStop Arm GLBLK

Hold Open Cush Arm for 1460 Series, Black Painted Finish, Non-Handed

The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.

Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.

The LCN 1460 Series is available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.

• Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
• Multiple cover options include; Standard (Slim line), Full and Designer Series
• Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions

1461 Series Features

• Universal, fully reversible, non-handed door closer
• Closer cylinder constructed of high strength cast iron for increased durability
• Tested to 2,000,000 cycles
• Fully adjustable 1-6 spring strength to suit door size and site conditions
• Factory set to strength 3
• Standard closer offers 3 installation options
  • Regular (pull side)
  • Top jamb (push side)
  • Parallel arm (push side)
• Independent adjustment valves for adjusting backcheck, closing and latching speeds
• All adjustment valves are concealed behind the cover to prevent tampering
• Joints in arms and shoe brackets adapt to uneven mounting surfaces
• Stick-on template for fast, accurate installation. Cuts installation time in half
• Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
• Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
