LCN 1460-72 690 Slim Line Plastic Cover STAT

LCN 1460-72 690 Slim Line Plastic Cover STAT is a standard cover for the versatile LCN 1460 Series door closer, featuring a statuary bronze finish that adds a touch of elegance to any door. This Grade 1 closer is engineered with a robust cast iron body, incorporating a full complement bearing for increased durability. The adjustable spring size ranges from 1 to 6, accommodating various door sizes and conditions, making it suitable for both commercial and institutional applications. Designed for quick and accurate installation, the LCN 1460 Series includes a slim line plastic cover and comes with self-reaming and tapping screws. This universal closer can be mounted on hinge side, top jamb, or parallel arm for either right or left swinging doors, ensuring flexibility in installation. It meets ADA requirements and offers multiple cover options, including standard, full, and designer series. The independent adjustment valves for backcheck, closing, and latching speeds are concealed to prevent tampering, enhancing security. With a Cush-N-Stop® feature that protects the closer and door from abrupt stops, this closer is built to last, having been tested to withstand up to 2,000,000 cycles. Choose the LCN 1460-72 for a reliable and stylish door closer solution.

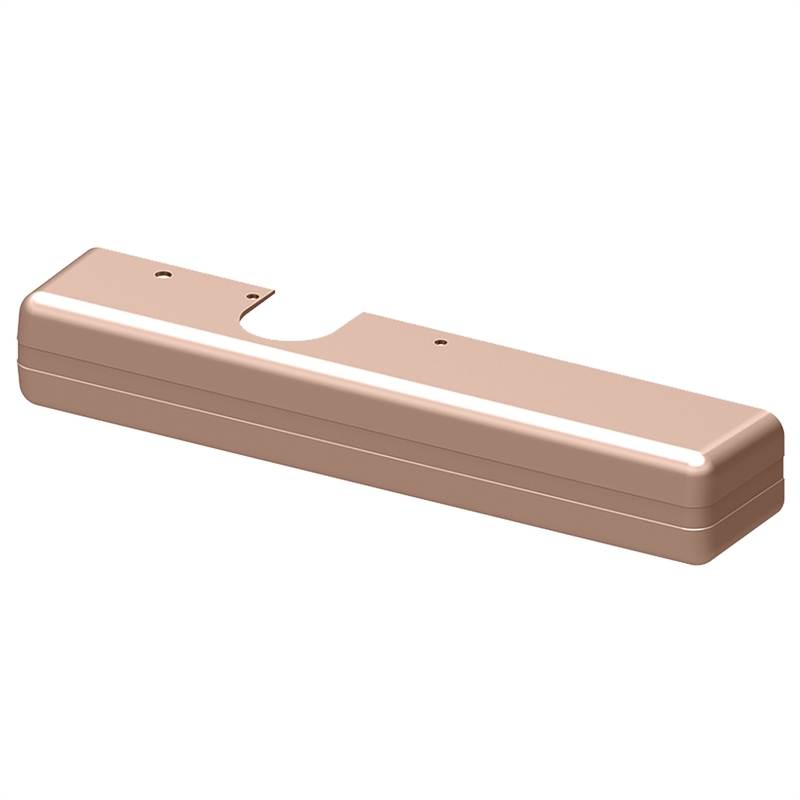

Slim Line Plastic Cover STAT

Standard Cover for 1460 Series, Statuary Bronze Finish

The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.

Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.

The LCN 1460 Series is available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.

• Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
• Multiple cover options include; Standard (Slim line), Full and Designer Series
• Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions

1461 Series Features

• Universal, fully reversible, non-handed door closer
• Closer cylinder constructed of high strength cast iron for increased durability
• Tested to 2,000,000 cycles
• Fully adjustable 1-6 spring strength to suit door size and site conditions
• Factory set to strength 3
• Standard closer offers 3 installation options
  • Regular (pull side)
  • Top jamb (push side)
  • Parallel arm (push side)
• Independent adjustment valves for adjusting backcheck, closing and latching speeds
• All adjustment valves are concealed behind the cover to prevent tampering
• Joints in arms and shoe brackets adapt to uneven mounting surfaces
• Stick-on template for fast, accurate installation. Cuts installation time in half
• Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
• Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
