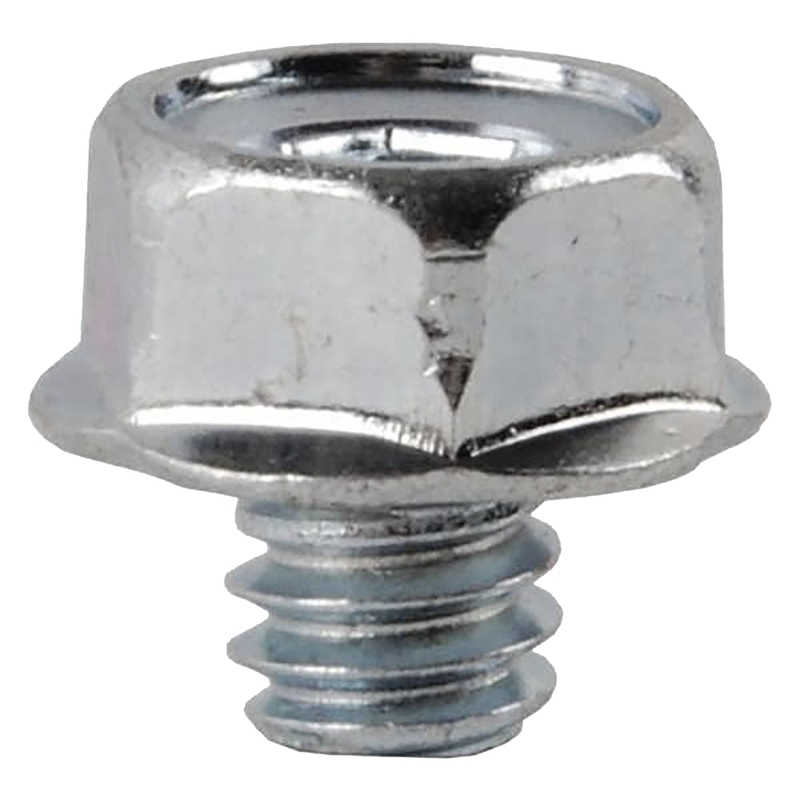

LCN 1460-83 689 Arm Screw AL

LCN 1460-83 689 Arm Screw AL is a vital component for the versatile LCN 1460 Series door closer, designed for both commercial and institutional applications. This elbow arm screw features a durable aluminum painted finish, ensuring it withstands the rigors of high-traffic environments while maintaining aesthetic appeal. The LCN 1460 Series is built for performance, with a Grade 1 closer that boasts a robust cast iron body and a full complement bearing. The adjustable spring size ranges from 1 to 6, accommodating various door sizes and conditions. Installation is a breeze with multiple mounting options-hinge side, top jamb, and parallel arm-suitable for both right and left swinging doors. Engineered for longevity, this closer has been tested for up to 2,000,000 cycles and incorporates independent adjustment valves for backcheck, closing, and latching speeds. The Cush-N-Stop® function protects against abrupt stops, preventing damage to the closer, door, or frame. With a standard slim line plastic cover and optional custom powder coat finishes, the LCN 1460-83 not only meets ADA requirements but also provides a seamless blend of functionality and style. Enhance your door hardware with this reliable and adaptable component.

Arm Screw AL

Arm Screw (Elbow) for 1460 Series, Aluminum Painted Finish

The LCN 1460 Series is designed for maximum versatility, available with multiple cover options, it can be used for both commercial and institutional applications. This Grade 1 closer features a cast iron body with a full compliment bearing, 1-1/4 In. diameter piston, 3/4 In. diameter single heat treated pinion journal and all weather fluid. Spring size is adjustable from size 1 to 6.

Universal medium-duty closer designed for maximum versatility that installs quickly and accurately.

The LCN 1460 Series is available with multiple cover options, can be used for both commercial and institutional applications. This fully universal closer offers a wide variety of options and new fast and accurate installation.

• Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
• Multiple cover options include; Standard (Slim line), Full and Designer Series
• Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions

1461 Series Features

• Universal, fully reversible, non-handed door closer
• Closer cylinder constructed of high strength cast iron for increased durability
• Tested to 2,000,000 cycles
• Fully adjustable 1-6 spring strength to suit door size and site conditions
• Factory set to strength 3
• Standard closer offers 3 installation options
  • Regular (pull side)
  • Top jamb (push side)
  • Parallel arm (push side)
• Independent adjustment valves for adjusting backcheck, closing and latching speeds
• All adjustment valves are concealed behind the cover to prevent tampering
• Joints in arms and shoe brackets adapt to uneven mounting surfaces
• Stick-on template for fast, accurate installation. Cuts installation time in half
• Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments
• Cush-N-Stop® function has a built in stop incorporated into the arm to prevent damage to the closer, door or frame in the event of an abrupt stop
