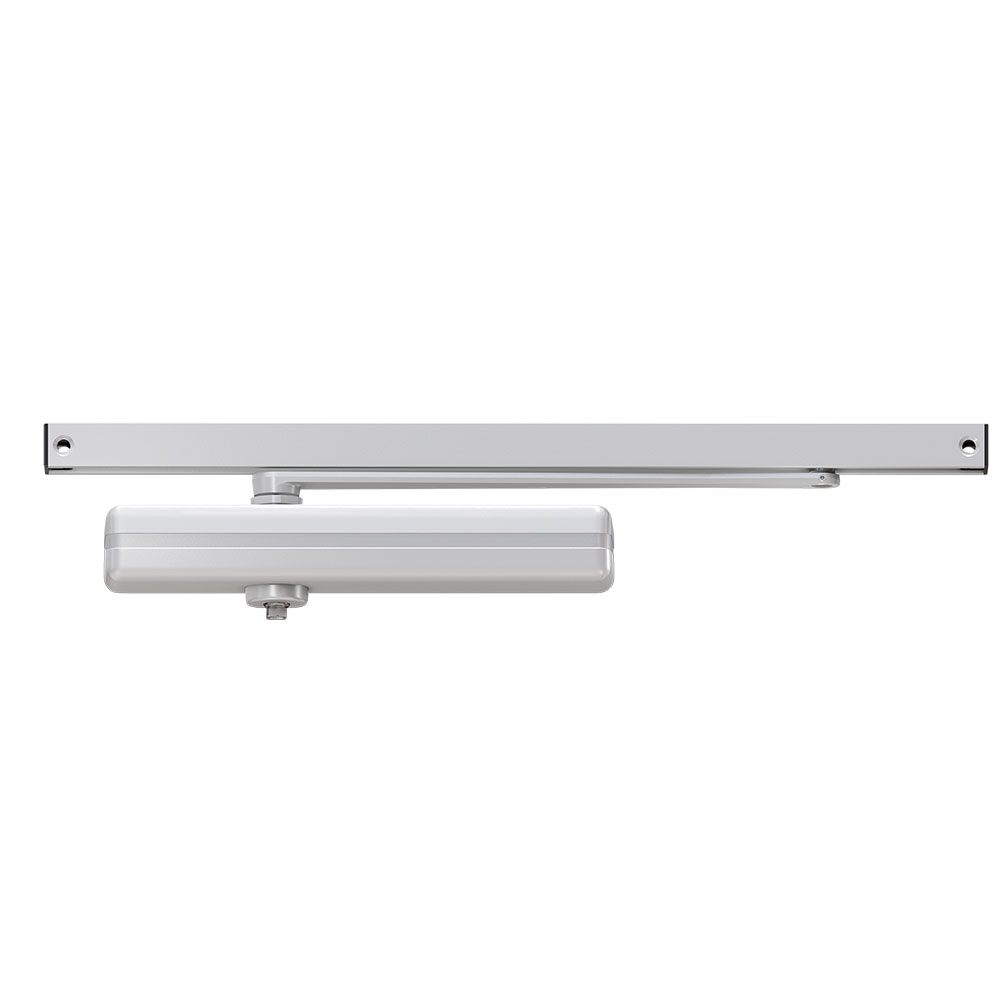

LCN 1460T-STD 689 Single Lever Arm Closer AL

LCN 1460T-STD 689 Single Lever Arm Closer AL is a versatile and reliable solution for interior door applications. Designed specifically for narrow head frames and top rails, this Grade 1 door closer combines a slim line profile with robust functionality, featuring a durable cast iron body and all-weather fluid for superior performance in various conditions. This non-handed, surface-mounted closer is ideal for commercial and institutional settings, offering flexibility with its adjustable non-sized cylinder that accommodates interior doors up to 5'0" and exterior doors up to 4'0". The standard model comes equipped with a slim line plastic cover, regular arm, and includes self-reaming and tapping screws for easy installation. Moreover, the 1460T Series meets ADA requirements, ensuring accessibility while providing reliable door control. It offers multiple cover options, including Standard, Full, and Designer Series finishes, while custom powder coat finishes and optional SRI primer for corrosive environments are also available. With a 30-year limited warranty and a maximum swing degree of 180 degrees, the LCN 1460T-STD 689 is a dependable choice for those seeking a high-quality door closer that combines performance and aesthetics seamlessly.

Single Lever Arm Closer AL

Standard Track Door Closer, Aluminum

The 1460T Series is a universal slim line, single lever track arm door closer designed for interior use on narrow head frames and top rails. The 1460T Series is Grade 1, featuring a cast iron body with all weather fluid.

LCN 1460T series is a non-handed, slim line track arm, surface mounted closer.

The 1460T Series is designed for maximum versailtiy and is also available with multiple cover options. It can be used for both commercial and institutional applications.

• Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
• Multiple cover options include; Standard (Slim line), Full and Designer Series
• Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions

Resources

• 1000 Series Catalog
• 1460T Series Surface Mounted Closers Cut Sheet
• LCN 1000 Series Surface Mounted Closers Guide
• LCN Closers & Auto Operators Installation Guide
• Von Duprin Finishes Chart
