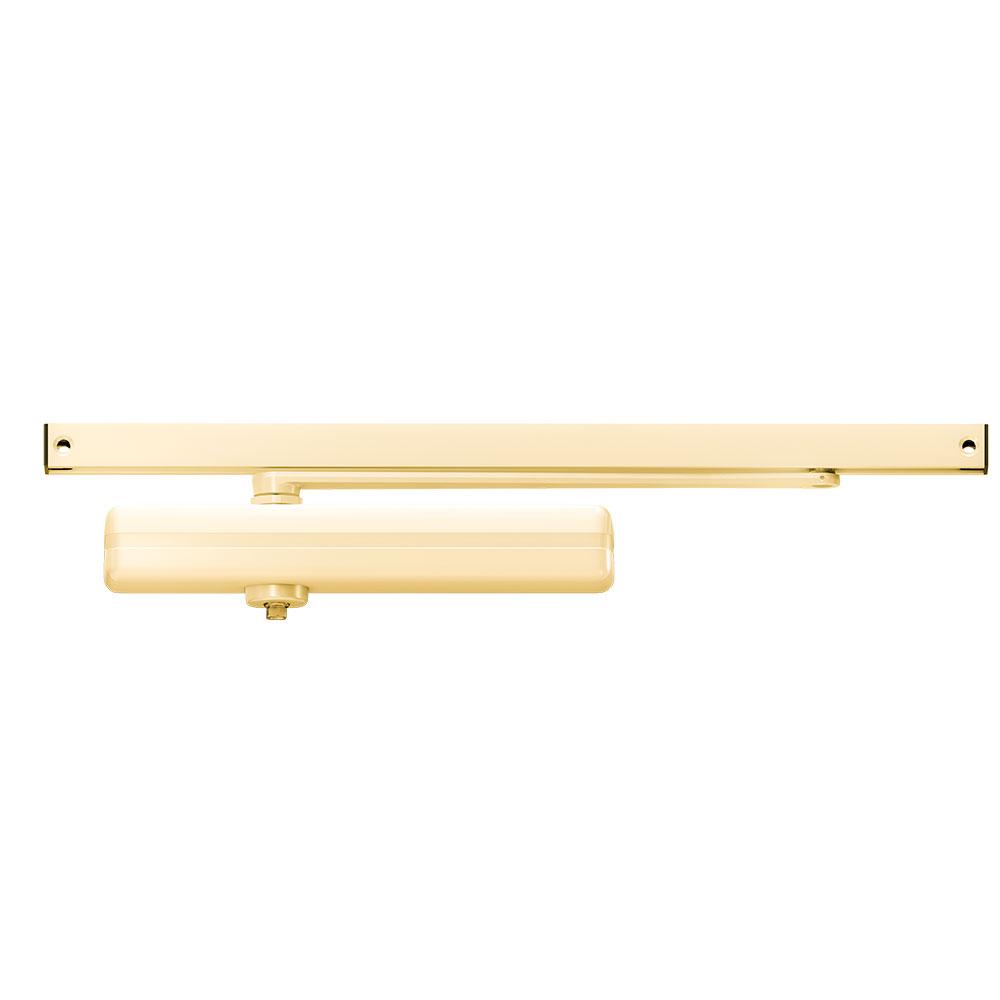

LCN 1460T-STD 696 Single Lever Arm Closer - Brass Finish

LCN 1460T-STD 696 Single Lever Arm Closer BRASS offers a robust solution for your door control needs with its universal slim line design, tailored for interior use on narrow head frames and top rails. This Grade 1 closer features a durable cast iron body equipped with all-weather fluid, ensuring reliable performance in various conditions. The non-handed, surface-mounted mechanism allows for versatile installation options, making it ideal for both commercial and institutional environments. With a standard installation providing a regular arm and a slim line plastic cover, you can also explore multiple cover options, including the Full and Designer Series for enhanced aesthetics. Designed for doors up to 5’0" in height for interiors and 4’0" for exteriors, the adjustable non-sized cylinder accommodates a range of applications. The closer mounts easily on the hinge side, top jamb, or parallel arm for right or left swinging doors, all while meeting ADA requirements. Available in a matte brass finish (696/US4) with an optional custom powder coat and corrosion-resistant SRI primer, the LCN 1460T-STD is a reliable choice. With a 30-year limited warranty, this closer combines functionality and durability, making it an essential component for your door hardware needs.

Single Lever Arm Closer BRASS

Standard Track Door Closer, Brass

The 1460T Series is a universal slim line, single lever track arm door closer designed for interior use on narrow head frames and top rails. The 1460T Series is Grade 1, featuring a cast iron body with all weather fluid.

LCN 1460T series is a non-handed, slim line track arm, surface mounted closer.

The 1460T Series is designed for maximum versailtiy and is also available with multiple cover options. It can be used for both commercial and institutional applications.

• Standard 1460 series closer shipped with regular arm, a slim line plastic cover, and self reaming and tapping screws
• Multiple cover options include; Standard (Slim line), Full and Designer Series
• Non-sized (1-6) cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
• Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
• Closer meets ADA requirements
• Standard or optional custom powder coat finish. Optional plated finish on Designer Series metal cover, arm and fasteners
• Optional SRI primer for installations in corrosive conditions
